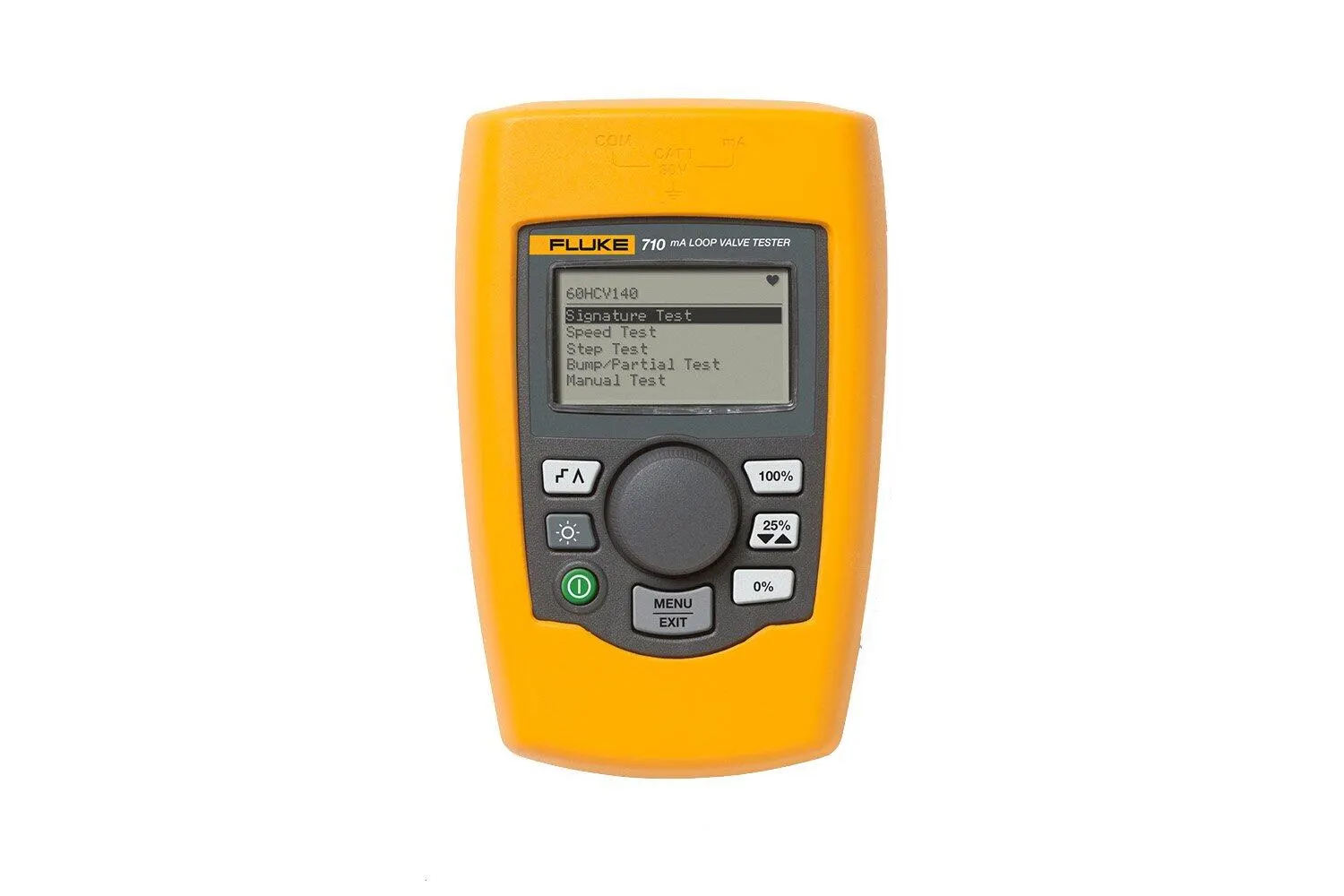

710 mA Loop Valve Tester
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke 710 mA Loop Valve Tester calibration tool performs quick, easy tests on HART smart control valves. Get the specs & details. Your solution awaits here.
Technical Specifications
- Manufacturer part number (MPN)
- 4991049
- Brand
- Fluke
- Category
- Tools
- Functions
- mA source, mA simulate, mA read, mA read/loop power, and volts read.
- Ranges
- mA (0 to 24 mA) and Volts (0 to 30 V DC)
- Resolution
- 1 µA on mA ranges and 1 mV on voltage range
- Accuracy
- 0.01% ± 2 counts, all ranges (@ 23 °C ± 5 °C [73.4 °F ± 41 °F])
- Operating temperature range
- -10°C to 55°C (14°F to 131°F)
- Humidity range
- 10 to 95% non-condensing
- Stability
- 20 ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C
- Display
- 128 x 64 pixels, LCD Graphic w/backlight, .34 high digits
- Power
- 6 AAA alkaline
- Battery life
- 40 hours continuous use (measure mode using)
- Loop compliance voltage
- 24 V DC @ 20mA
- Over-voltage protection
- 240 V AC
- Overload current protection
- 28 mA DC
- EMC
- EN61326 Annex A (Portable Instruments)
- Dimensions (L x W x D)
- 15 x 9 x 3 cm (6 x 3.6 x 1.3 in)
- Weight
- 0.3 kg (9.5 oz)
- Included accessories
- Traceable calibration certificate with data, batteries, test leads, USB upload cable and safety
- Warranty
- Three year
Standards & Compliance
- HS Code
- 9030.33
Cross References
- OEM-URL https://www.fluke.com/en-us/product/calibration-tools/ma-loop-calibrators/fluke-710
Product Documentation
More from Fluke
Fluke
PLS HV2R KIT, Manual Slope Red Rotary Laser Kit
5022558
Fluke
Fluke 1664 FC Installation Multifunction Tester
4884288
Fluke
PLS FS Floor Stand
5031929
Fluke

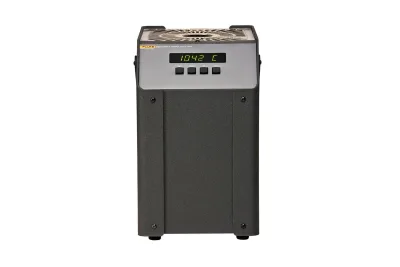

Fluke Calibration 9150 Thermocouple Furnace
