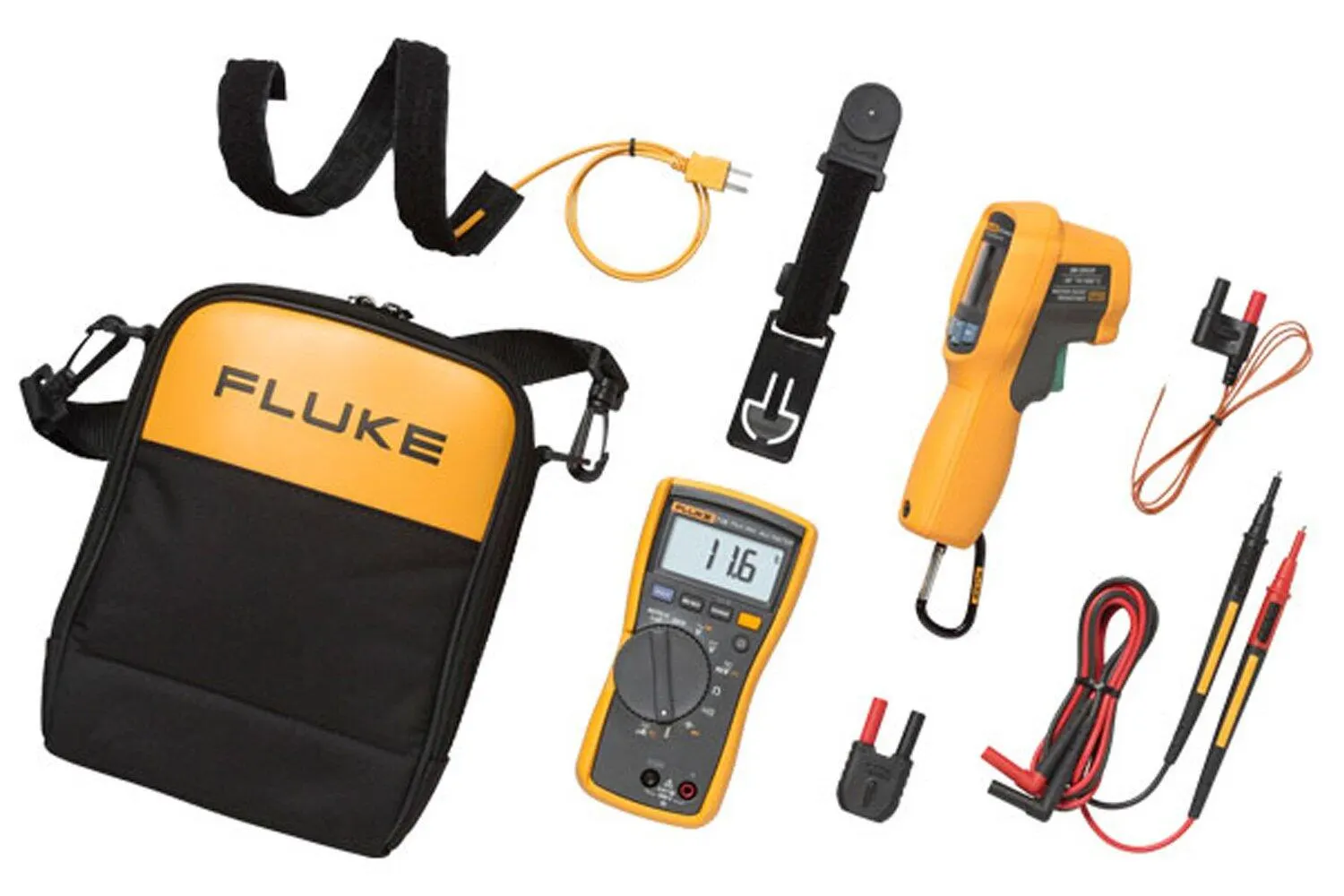

Fluke 116/62 MAX+ Technician’s Combo Kit

Combine the power of Fluke's 116 HVAC Multimeter with a Fluke 62 MAX+ infrared thermometer for productive and effective troubleshooting.

Manufacturer part number (MPN)

4296018

Brand

Fluke

Category

Tools

Maximum voltage between any terminal and earth ground

600 V

Surge protection

6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2

Display

6,000 counts, updates 4 per second

Bar graph

33 segments, updates 32 per second

Operating Temperature

-10°C to +50°C

Storage Temperature

-40°C to +60°C

Battery type

9 volt Alkaline, NEDA 1604A/ IEC 6LR61

Battery Life

400 hours typical, without backlight

DC millivolts Range/Resolution

600.0 mV / 0.1 mV

DC millivolts Accuracy

±([% of reading] + [counts]): 0.5% + 2

DC volts Range/Resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.00 V / 0.1 V

DC volts Accuracy

±([% of reading] + [counts]): 0.5% + 2

Auto volts Range

600.0 V / 0.1 V

Auto volts Accuracy

2.0% + 3 (DC, 45 Hz to 500 Hz) 4.0% + 3 (500 Hz to 1 kHz)

AC millivolts1 True RMS Range

600.0 mV / 0.1 mV

AC millivolts1 True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

AC volts1 True RMS Range/Resolution

6.000 V / 0.001 V 60.00 V / 0.01 V 600.0 V / 0.1 V

AC volts1 True RMS Accuracy

1.0% + 3 (DC, 45 Hz to 500 Hz) 2.0% + 3 (500 Hz to 1 kHz)

Continuity Range

600 Ω / 1 Ω

Continuity Accuracy

Beeper on 250 Ω; detects opens or shorts of 500 μs or longer.

Ohms Range/Resolution

600.0 Ω / 0.1 Ω 6.000 kΩ / 0.001 kΩ 60.00 kΩ / 0.01 kΩ 600.0 kΩ / 0.1 kΩ 6.000 MΩ / 0.001 MΩ

Ohms Accuracy

0.9% + 1

Diode Test Range/Resolution

2.000 V / 0.001 V

Diode Test Accuracy

0.9% + 2

Capacitance Range/Resolution

1000 nF / 1 nF 10.00 μF / 0.01 μF 100.0 μF / 0.1 μF 9999 μF / 1 μF 100 μF to 1000 μF

Capacitance Accuracy

1.9% + 2

LoZ capacitance Range

1 nF to 500 μF

LoZ capacitance Accuracy

10% + 2 typical

Temperature2 (Type-K thermocouple) Range/Resolution

-40°C to 400°C / 0.1°C

Temperature2 (Type-K thermocouple) Accuracy2

1% + 10

AC μamps true-rms (45 Hz to 500 Hz) Range/Resolution

600.0 μA / 0.1 μA

AC μamps true-rms (45 Hz to 500 Hz) Accuracy

1.0% + 2

DC μamps Range/Resolution

600.0 μA / 0.1 μA

DC μamps Accuracy

1.0% + 2

Hz (V or A input)2 Range/Resolution

99.99 Hz / 0.01 Hz 999.99 Hz / 0.1 Hz 9.999 Hz / 0.001 Hz 50.00 Hz / 0.01 Hz

Hz (V or A input)2 Accuracy

0.1% + 2

Size

167 x 84 x 46 mm (6.57 x 3.31 x 1.82 in)

Weight

550 g

Warranty

3 years

Temperature range

-30°C to 650°C (-22°F to 1202°F)

Accuracy

±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0

Response time (95%)

< 300 ms (95% of reading)

Spectral response

8 to 14 microns

Emissivity

0.10 to 1.00

Optical resolution

12:1 (calculated at 90% energy)

Display resolution

0.1°C (0.2°F)

Repeatability of readings

±0.5% of reading or <±0.5°C (1°F), whichever is greater

Power

AA battery

Operating humidity

10% to 90% RH non-condensing at 30°C (86°F)

Operating altitude

2000 meters above mean sea level

Storage altitude

12,000 meters above mean sea level

IP rating

IP 54 per IEC 60529

Drop test

3 meters

Vibration and shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms

EMC

EN 61326-1:2006 EN 61326-2:2006

Standards and agency approval Compliance

EN/IEC 61010-1: 2001

Standards and agency approval Laser safety

FDA and EN 60825-1 Class II
