Fluke Set of 3 5A/50A Current Clamps

Expand the capabilities of the Fluke 1735 and Fluke 1740 Series Loggers with the dual-range 5 A/50 A current clamps.

Manufacturer part number (MPN)

2539468

Brand

Fluke

Category

Tools

Electrical characteristics Nominal current in

50 A AC rms

Electrical characteristics Overload

up to 100 A rms

Electrical characteristics Conductor position influence

< 0.5% of range at 50/60 Hz

Electrical characteristics Error due to adjacent conductor

≤ 15 mA/A at 50 Hz

Electrical characteristics Phase shift at 2 kHz at 200 A

< ±1°

Electrical characteristics Frequency range

40 Hz to 10 kHz (-3 dB)

Electrical characteristics Temperature coefficient

0.015% of range / °C

Working voltage (see section safety)

600 V AC rms or DC

Electrical characteristics Order reference

1-phase: EP0442A

Accuracy Primary current 0.125 A to 2.5 A

Operating error in % of reading: ±2.5%

Accuracy Primary current 2.5 A to 12.5 A

Operating error in % of reading: ±1.5%

Accuracy Primary current 12.5 A to 25 A

Operating error in % of reading: ±0.5%

Accuracy Primary current 25 A to 50 A

Operating error in % of reading: ±0.5%

General characteristics Maximum conductor size

15 mm diameter, bus bar 15 x 17 mm

General characteristics Cable length

2 m

General characteristics Operating temperature range

-10°C to +55°C

General characteristics Storage temperature range

-20°C to +70°C

General characteristics Operating humidity

15% to 85% rh (non condensing)

General characteristics Weight (per clamp)

175 g

Reference conditions Environment temperature range

+18°C to +26°C

Reference conditions Humidity

20% to 75% r.h.

Reference conditions Current

sinusoidal waveform, 48 to 65 Hz, distortion factor: < 1%, no DC component

Reference conditions Load impedance for voltage output

≥ 1 MΩ, <100 pF

Safety standards

IEC/EN61010-1: 2001

Safety

600 V CAT III, pollution degree 2

EMC standards

EN61326-1: 1997/A1: 1998

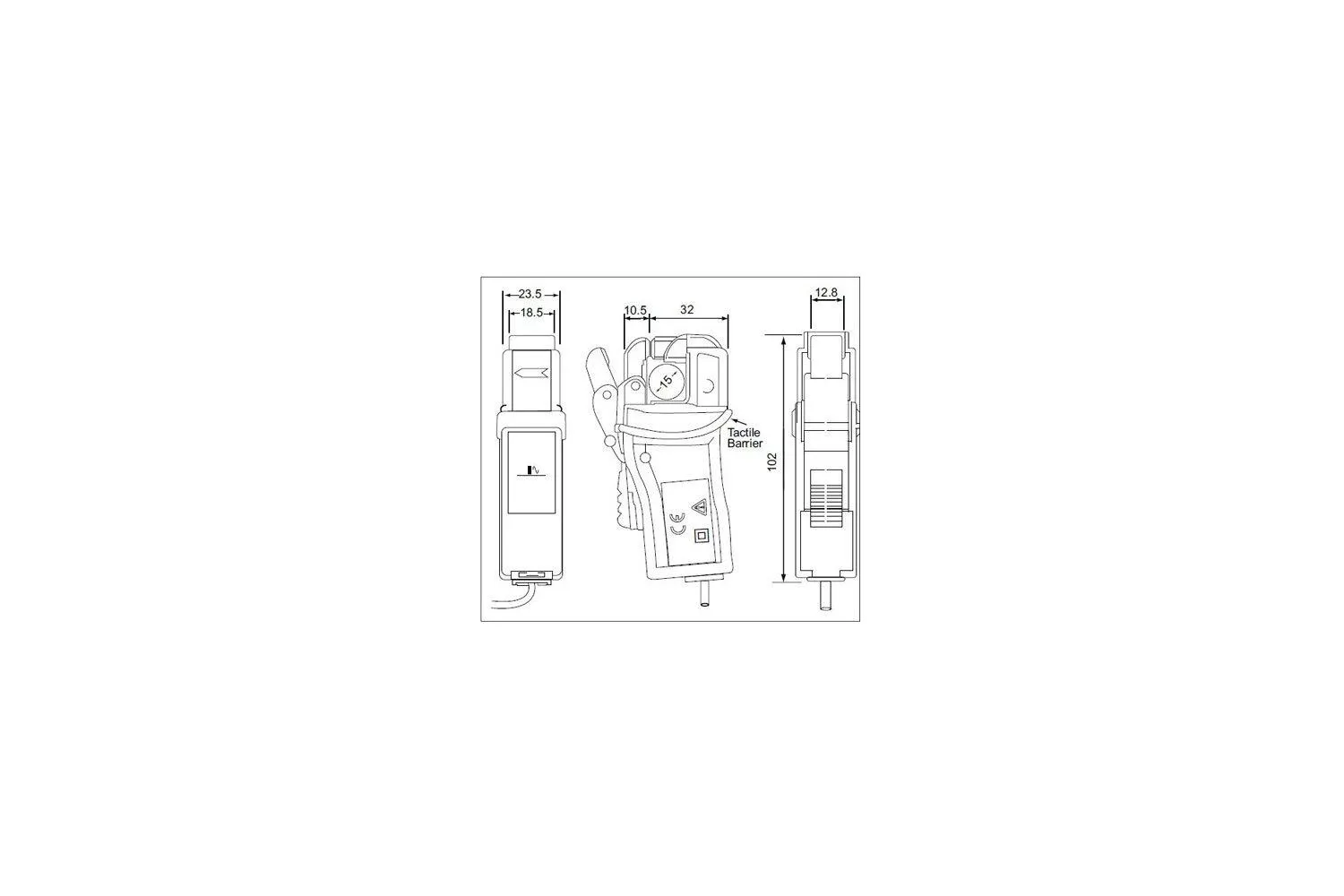

Dimensions

102 x 42.5 x 23.5 mm

HS Code

9030.33
