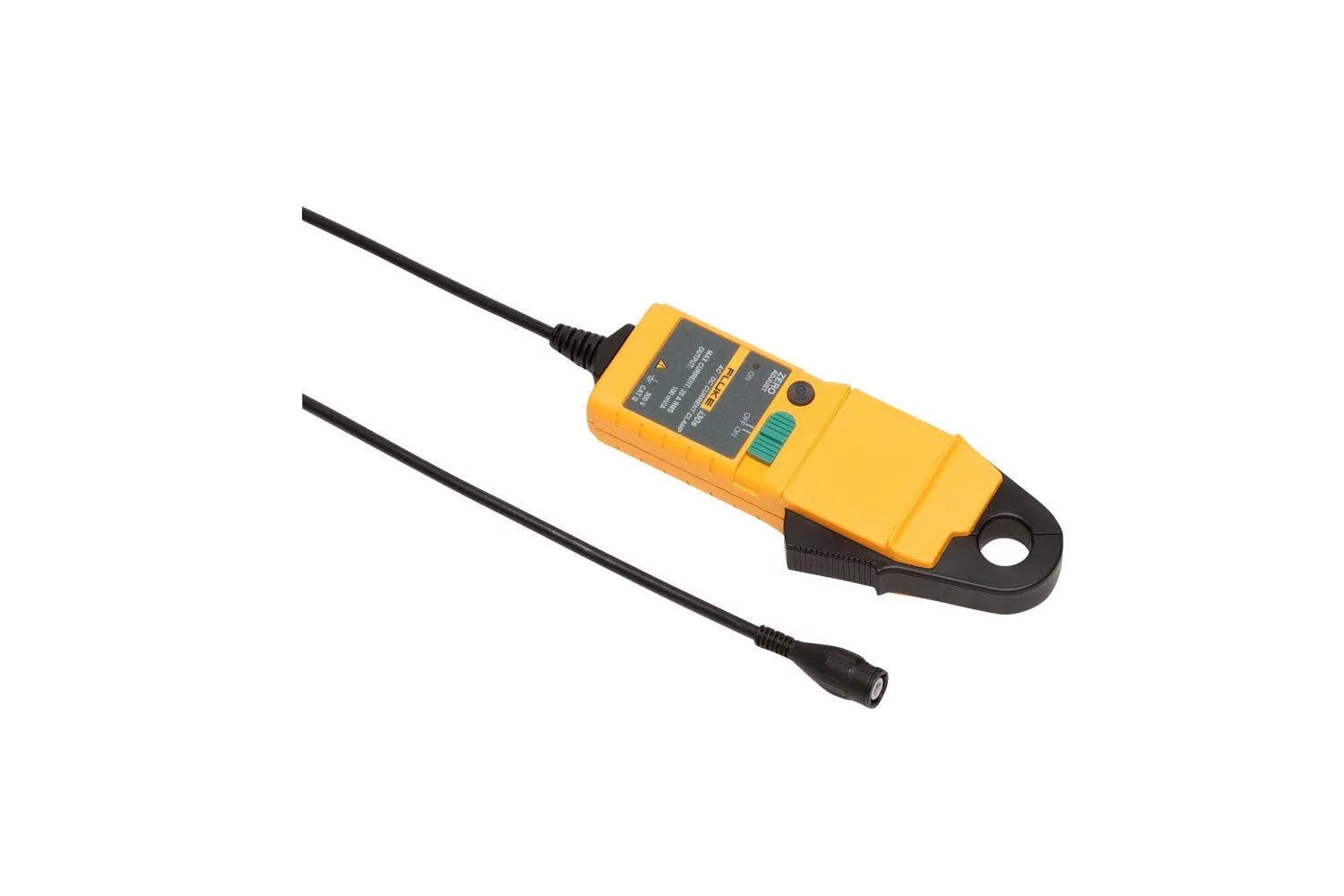

Fluke I30S AC/DC Current Clamp

The i30s current clamp is based on Hall Effect technology for use in measurement of both DC and AC current.

Manufacturer part number (MPN)

2584935

Brand

Fluke

Category

Tools

Specified current range

30 mA to 30 A DC, 30 mA to 20 A AC rms

Usable current range

5 mA to 30 A DC, 30 mA to 20 A AC rms

Crest factor

1.4 in

Output sensitivity

100 mV/A

Accuracy (at +25°C)

DC ±1 % of reading ±2 mA AC ± 0.5 dB of reading ±2 mA

Resolution

±1 mA

Load impedance

> 100 kΩ

Conductor position sensitivity

±1% relative to center reading

Frequency range

DC to 100 kHz (-0.5 dB)

Phase shift below 1 kHz

< 2°

Temperature coefficient

±0.01% of reading / °C

Power supply

9 V Alkaline, MN1604/PP3, 30 hours, low battery indicator

Working voltage (see Safety Standards section)

300 V AC rms or DC

Maximum conductor size

19 mm diameter

Output connection

Safety BNC connector, supplied with safety 4 mm adapter

Output zero

Manual adjust via thumbwheel

Cable length

2 m

Operating temperature range

0°C to +50°C

Storage temperature range (with battery removed)

-20°C to +85°C

Operating humidity

15% to 85% (non-condensing)

Weight

250 g

Safety

IEC 61010-1, Pollution Degree 2

EMC Compatibility

IEC 61326-1: Portable Electromagnetic Environment

HS Code

9030.33
