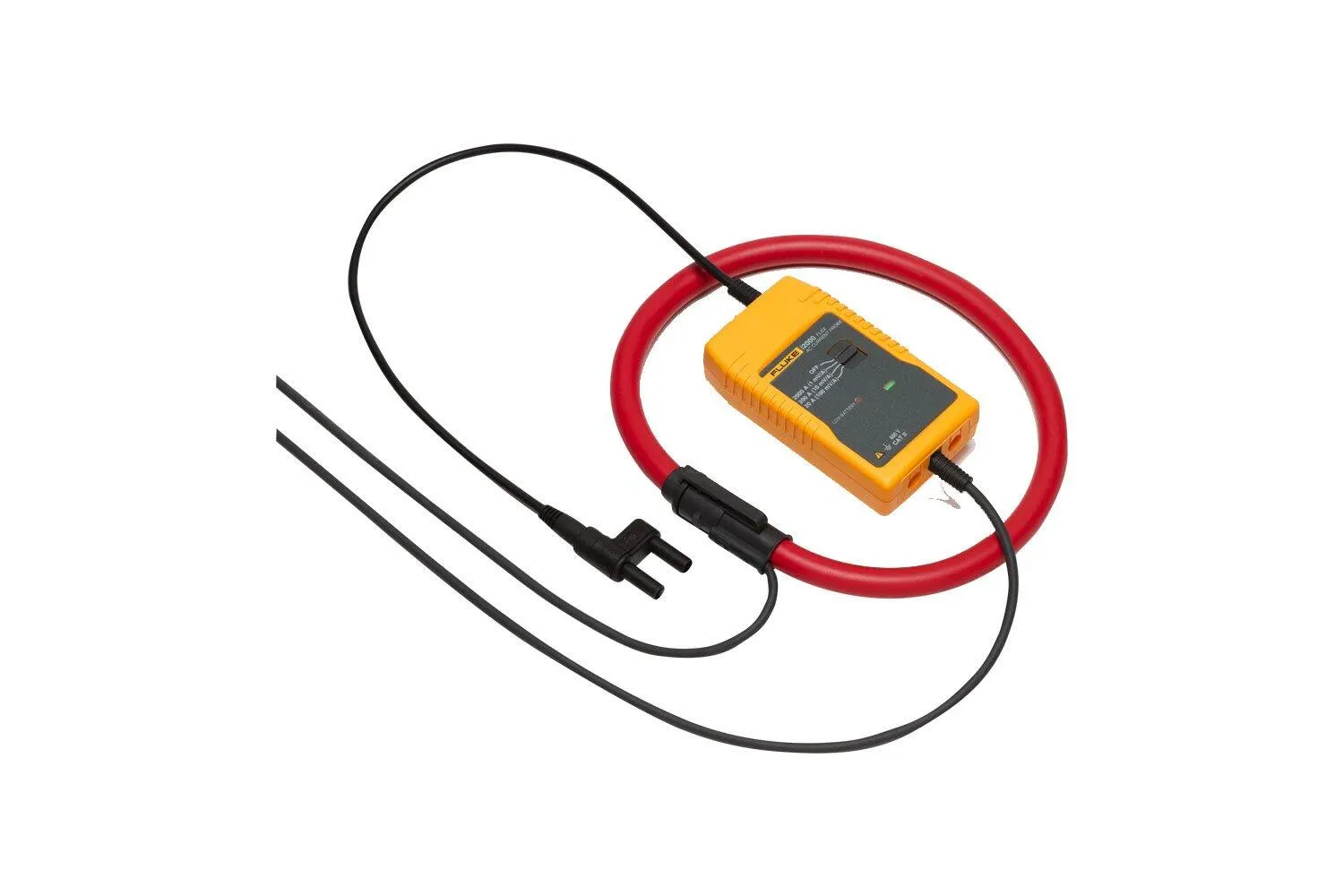

Fluke I2000 Flex AC Current Clamp

The i2000 is an AC current probe utilizing the Rogowski principle. It can be used to measure currents up to 2000 A when used in conjunction with multimeters, recorders or data loggers. The flexible and lightweight measuring head allows quick and easy installation in hard to reach areas.

Manufacturer part number (MPN)

2584912 Brand: Fluke Category: Tools Current ranges: 20 A 200 A 2000 A AC rms Output sensitivity (AC-coupled): 1 mV 10 mV 100 mV 1 mV per A Load impedance: 100 kΩ minimum Accuracy: at +25°C ±1% of range (45 Hz to 65 Hz) Linearity: 10% to 100% of range ±0.2% of reading Noise: 8 mV AC rms (30 A) 2 mV AC rms (300 A, 3000 A) Frequency range: 10 Hz to 20 kHz (-3 dB) Phase error: < ±1° (45 Hz to 65 Hz) ±10° (at 20 kHz) Position sensitivity (with cable > 25 mm from the coupling): Position sensitivity: From 1% up to 3% of range with cable, depending on distance from the center (see figure left). Measurements closer than 25 mm from the coupling are typically greater than 3% of range. External wire influence: 1% (-40 db) of external current >200 mm from head. External field: with cable > 200 mm from the head ±1% of range Power supply: 2 x AA/MN 1500/LR6 Alkaline, 200 hours, low battery indicator Temperature Coefficient: ±0.08% of reading per °C Working voltage: see Safety standards section 600 V AC rms or DC Head Circumference: 610 mm (24 in) Head cable diameter: 14.3 mm (0.56 in) Head bend radius: 38.1 mm (1.5 in) Cable length (head to electronics): 2 m (6.56 ft) Output connection: Molded 4 mm safety plugs (not integrated) Operating temperature range: 0°C to +70°C (32°F to 158°F) (head and electronics) Storage temperature range: -40°C to +105°C (-40°F to 221°F) (head) -20°C to +85°C (-4°F to 185°F) (electronics) Operating humidity: 15% to 85% (non-condensing) Weight: 180 g (6.34 oz) (head) 190 g (6.70 oz) (electronics) Safety standards: EN 61010-031: 2002 EN 61010-2-032: 2002 EN 61010-1: 2001 600 Vrms, Category III, Pollution Degree 2 Use of the probe on uninsulated conductors is limited to 600 V ac rms or dc and frequencies below 1 kHz. EMC standards: EN 61326: 1998 +A1, A2, and A3 Dimensions (H x W x D): 116 x 68.5 x 30 mm (4.56 x 2.69 x 1.18 in)

HS Code

9030.33
