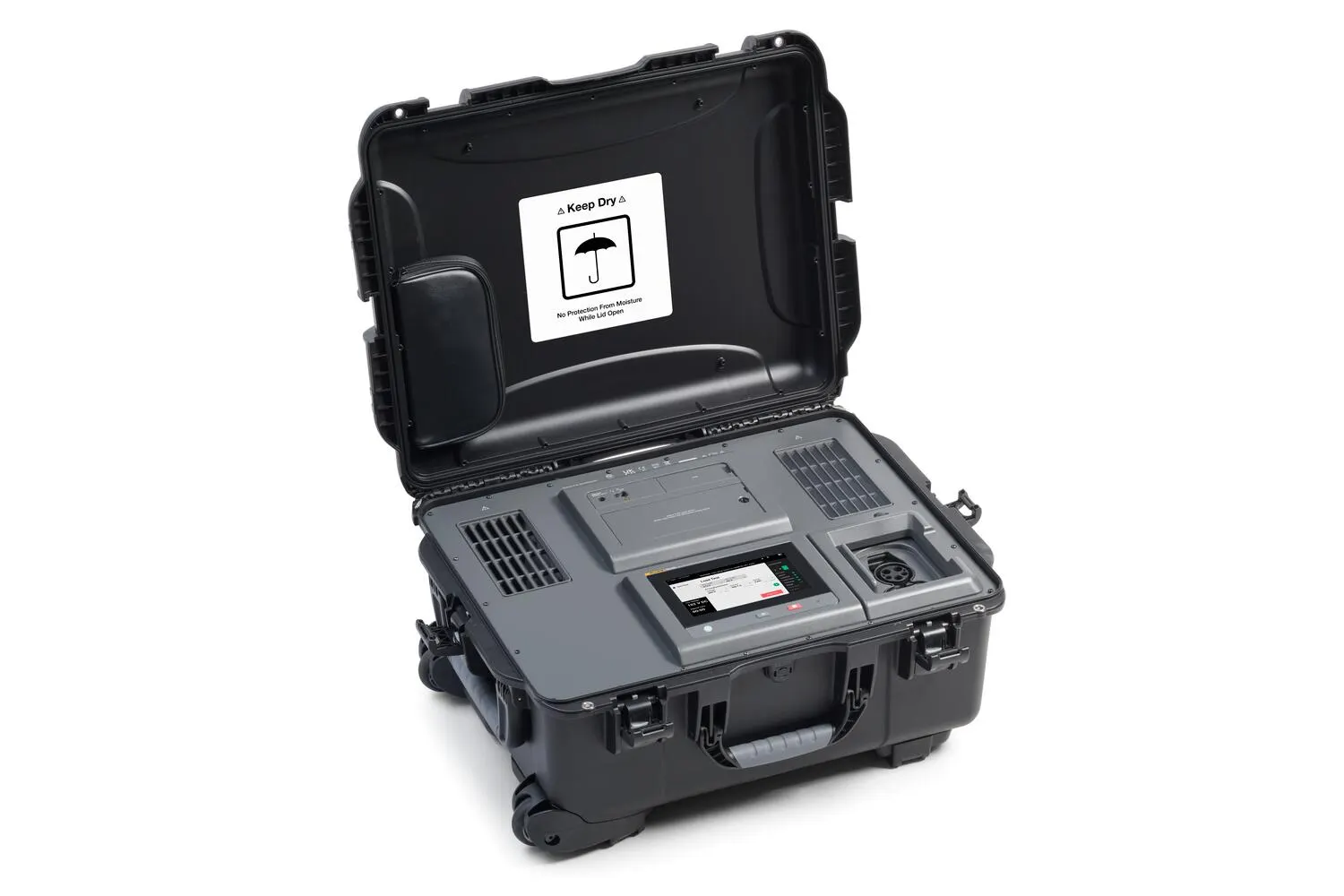

Fluke FEV500 Fast DC EV Charging Station Analyzer

Portable tool for testing Fast DC EV chargers—no EV needed. Combines safety, performance & data logging.

Manufacturer part number (MPN)

6008392

Brand

Fluke

Category

Tools

Case

Rugged, wheeled hardcase

Dimensions

65 cm x 50.8 cm x 30 cm (25.6 in x 20 in x 11.8 in)

Weight

26 kg (57 lb)

Display

7-in TFT, 1024 x 600 pixels, capacitive touch (operable with PPE gloves) Ultra-bright, sunlight-readable display with up to 1,700 cd/m² Brightness adjustment with ambient light sensor

Interface

Keys: Power on/off, Backlight, Stop Test LEDs: Power, Battery Status, Charging

Battery

Lithium-ion; 10.8 V, 6.8 Ah, 73.44 Wh (customer replaceable)

Runtime

10 hours (battery recharges during test)

Charging Time

Typically 3 hours with USB-C PD 65 W charger

Backup Duration

Up to 6 months before recharge

Wireless Connectivity

Integrated Wi-Fi (802.11b/g/n) and Bluetooth 5.2 module TX/RX Frequency Range: 2400 MHz to 2483.5 MHz Transmit Operating Power: < 100mW Encryption: WPA2-AES (WiFi), AES-CCM (Bluetooth) (Activation subject to firmware support. Refer to release notes for availability.)

USB-C

USB 2.0 high-speed for data download to PC-software TruTest™ and calibration Charging battery with USB-C power adapter PD 2.0 or higher with 9V 1.8 A USB-C flash drive support for firmware updates Max supply current: 900 mA

GNSS

Global navigation satellite receiver with internal antenna for time synchronization

Fuse

11 A (not customer replaceable)

Warranty

Main unit: 2 years Battery and accessories: 1 year

Operating Temperature

-20 °C to +50 °C (-4 °F to +122 °F)

Battery Charging Temperature

0 °C to +45 °C (32 °F to +113 °F)

Storage Temperature

-20 °C to +60 °C (-4 °F to +140 °F); Recommended: 0 °C to +30 °C

Operating Humidity

≤100% up to 30 °C; 55% at 40 °C; 35% at 50 °C

Operating Altitude

Up to 3000 m

Storage Altitude

Up to 12,000 m

Vibration

IEC 60721-3-3 / 3M2

Drop Test

0.5 m (visual defects allowed)

Ingress Protection (lid closed)

IP54

Ingress Protection (lid opened)

IP40 (protected against objects ≥1 mm) Air-cooling plenum: IP20 (protected against objects ≥12.5 mm) No protection against water ingress

Safety Standard

IEC 61010-1, Pollution Degree 2 IEC 61010-2-034

Performed Tests

CCS Low-Level Communication and SLAC Test, Continuity Test, Insulation Resistance Test, Load Test (including Cable Check Voltage Measurement), IMD Test, Residual Voltage Test

Measurement

Test probe to PE pin of CCS 1/2 socket

Open-Loop Voltage

Max 5 V

Test Current

Max 10 A (up to 0.2 Ω)

Test Method

DC test with alternating polarity

Live Circuit Detection

Inhibits test if test probe voltage > 60 V

Test Probe Zeroing

Select ZERO in user interface to zero the test probe resistance.

Standard

IEC61557-4

Test Voltage RLO Range

Resolution

2 Ω

<1Ω: 0.1 mΩ ≥1Ω: 0.0001Ω

Measurements

Insulation Resistance DC+ to PE and DC- to PE

Test Voltage

Max EVSE Voltage ≤ 500 V: 500 V +10% / -0% Max EVSE Voltage > 500 V: 1000 V +10% / -0%

Max Short Circuit Current

2 mA

Test Voltage RISO Range

Resolution

500 V 10 kΩ to 20 MΩ

0.01 MΩ

1000 V 10 kΩ to 20 MΩ

0.01 MΩ

Parameters

Voltage CP high, Voltage CP low, Frequency, Duty Cycle

Simulation of states

A, B, C, D, E (simulation and validation)

Digital Protocol

DIN SPEC 70121, ISO 15118

Parameter Range

Resolution

CP High, CP Low -15 V to +15 V

0.01 V

Frequency DC, 900 to 1100 Hz

1 Hz

Duty Cycle 2 to 98 %

0.10%

SLAC 0 dB to 20 dB

1 dB

PP Resistor 50.0 to 499.9 Ω

0.1 Ω

PP Resistor 500 to 5000 Ω

1 Ω

Voltage 1000 V

0.1 V

Current 10 A

0.01 A

Power 0 to 3.75 kW

0.001 kW

Auto-Test

No trip test, trip test Test Resistor no trip test: 250 kΩ (DC+ to PE) Test Resistor trip test: 95 kΩ (max. EVSE Voltage >500 V dc), 45 kΩ (max. EVSE Voltage ≤500 V dc) (DC- to PE) Duration: max 15 s for each test

Test Resistor Range

19.5 kΩ to 3 MΩ, 256 values
