Fluke

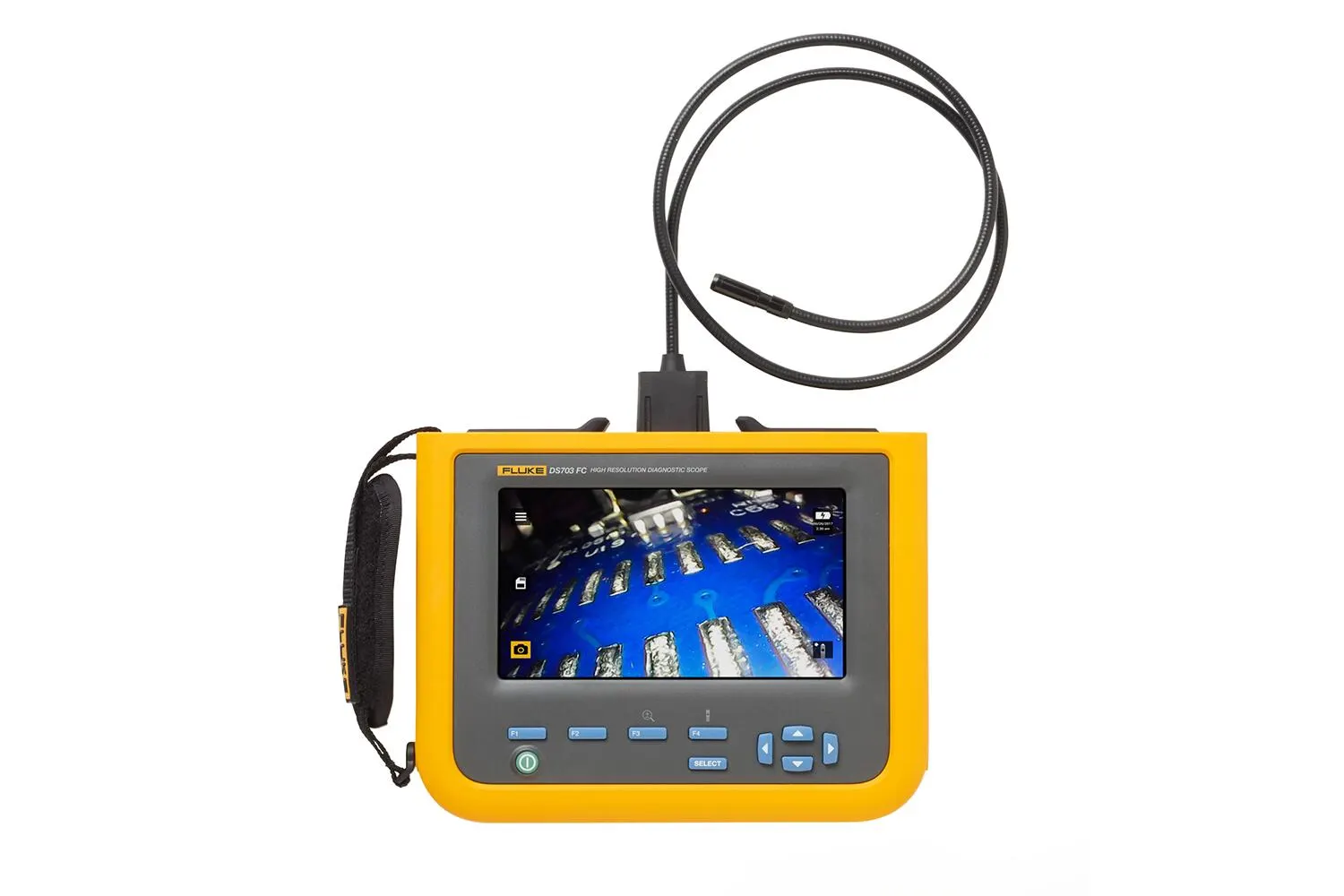

Fluke DS703 FC Diagnostic Video Borescope
Part number4962665
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
The Fluke DS703 FC is powerful diagnostic borescope designed to stand up to the dirtiest, most harsh environments.
Technical Specifications
- Manufacturer part number (MPN)
- 4962665
- Brand
- Fluke
- Category
- Tools
- Type
- 7 inch Capacitive touch screen
- Refresh rate
- 30 hz
- LED backlight
- Adjust display brightness for optimal viewing
- Wireless interface
- WiFi 802.11b/g/n, Range: 33 feet (10.06 meters)
- Data transfer
- USB and micro HDMI cable
- FlukeConnect™
- Save and share images via FlukeConnect™
- Instant upload to the cloud
- Yes, with FlukeConnect™
- Color palettes
- Visible light, grayscale or inverted
- Internal memory
- 6 GB
- Physical buttons
- Intuitive, easy to navigate button technology, 4 functional keys, 4 navigational, one capture or select button
- Carrying case
- Protective EVA case
- Strap
- Hand Strap and Neck Strap included
- Power adapter
- AC adapter/battery charger input
- Battery
- 6400mAh 3.7 volt rechargeable internal li-ion battery
- Battery life
- 3 hours at 50 % LED brightness
- Dimensions
- 6.98 x 8.85 inches (17.73 x 22.48 cm)
- Weight
- 1.95 lbs (0.88 Kg)
- Tablet
- IP54, dust protected and protected against water projected from a nozzle
- Drop test
- 2 meter (6.56 feet)
- Operating temperature
- 0 °C to 45 °C (32 °F to 113 °F), 50 °C (122 °F) for less than 10 minutes
- Storage temperature
- -40 °C to 60 °C (-40 °F to 140 °F)
- Operating humidity
- 90 % at 35 °C (95 °F), 75 % at 40 °C (104 °F), 45 % at 50 °C (122 °F)
- Warranty
- 2 years
- Video Borescope Probe Specifications
- 8.5mm Dual View (1.2M) (Included with DS703 FC)
- Outer Diameter of Tip
- 8.5mm
- Length
- 1.2 meter
- Resolution
- 1280 x 720 (720p) (HD)
- Depth of Field (min)
- 35.5mm (Front) 35.5mm (Side)
- Depth of Field (max)
- 111.7mm (Front) 111.7mm (Side)
- Field of View
- 75 degrees
- Up-is-Up™ technology
- Yes
- Length of Distal Tip
- 50mm
- Outer Diameter of Conduit
- 6.1mm
- Conduit Pliability
- Flexible but compliant
- Waterproof
- Waterproof to 2 psi
- LED Type
- Standard white
- Still image format
- JPG
- Video recording format
- MPEG compression
- Digital zoom
- Adjustable from 1x to 8x zoom
- Camera Direction
- Front and Side View
- Streaming video
- Via HDMI
