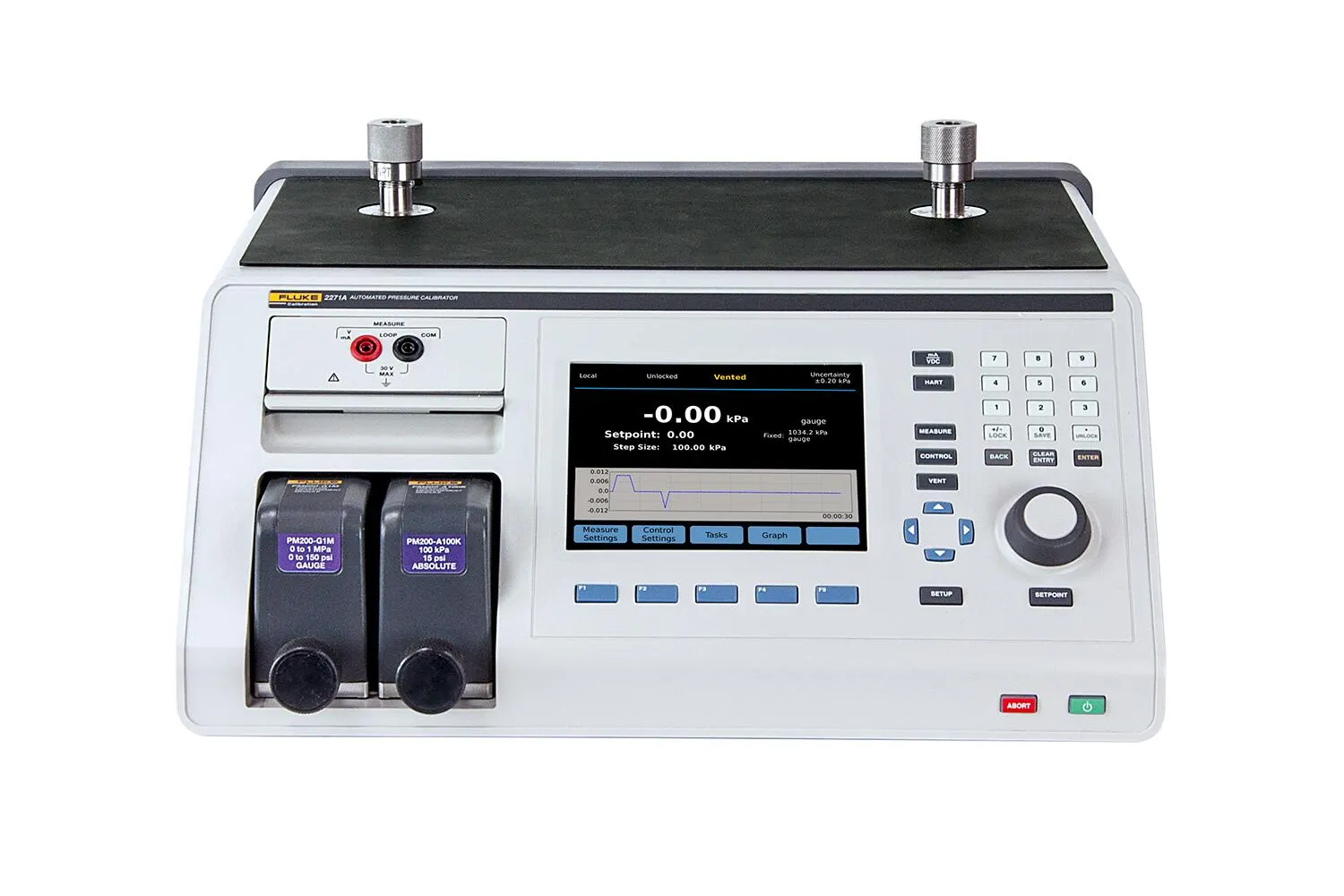

Fluke 2271A Industrial Pressure Calibrator

The automated pneumatic pressure calibrator that grows along with your workload for wide workload coverage now and in the future.

Manufacturer part number (MPN)

4755256

Brand

Fluke

Category

Tools

Power requirements

0 V ac to 240 V ac, 47 Hz to 63 Hz

Fuse

T2A 250 V ac

Max power consumption

100 W

Operating ambient temperature range

15 °C to 35 °C

Storage temperature

-20 °C to 70 °C

Relative humidity

Operating: <80 % to 30 °C, <70 % to 35 °C

Vibration

MIL-T-28800D CLASS 3

Altitude (Operation)

<2000 m

Ingress protection

IEC 60529: IP20

Safety

IEC 61010-1, Installation Category II, Pollution degree 2

Warmup time

15 minutes typical

Weight (chassis only)

15 kg (33.06 lbs)

Dimensions

Height: 2271A-NPT-HC20 305 mm (12 in)

Control Precision (Dynamic Mode) PM200-BG2.5K

0.005% Range Span

Control Precision (Dynamic Mode) All other ranges

0.001 % Range Span

Control turndown

10:1 (Typical)

Low control point

1 kPa (0.15 psi) absolute

Maximum particulate contamination

≤ 1.25 micrometer (50 microinches)

Maximum moisture content

-50 °C dew point

Maximum hydrocarbon content

30 ppm

Primary remote interfaces

Ethernet, RS232, USB

Connection

Standard 4 mm jack

Aux drivers

4 external solenoid drivers

Model Range (SI units)

Range (Imperial units)

PM200-BG2.5K -2.5 kPa to 2.5 kPa

-10 inH₂0 to 10 inH₂0

PM200-BG35K -35 kPa to 35 kPa

-5 psi to 5 psi

PM200-BG40K -40 kPa to 40 kPa

-6 psi to 6 psi

PM200-BG60K -60 kPa to 60 kPa

-9 psi to 9 psi

PM200-A100K 2 kPa to 100 kPa

0.3 psi to 15 psi

PM200-BG100K -100 kPa to 100 kPa

-15 psi to 15 psi

PM200-A200K 2 kPa to 200 kPa

0.3 psi to 30 psi

PM200-BG200K -100 kPa to 200 kPa

-15 psi to 30 psi

PM200-BG250K -100 kPa to 250 kPa

-15 psi to 36 psi

PM200-G400K 0 kPa to 400 kPa

0 psi to 60 psi

PM200-G700K 0 kPa to 700 kPa

0 psi to 100 psi

PM200-G1M 0 MPa to 1 MPa

0 psi to 150 psi

PM200-G1.4M 0 MPa to 1.4 MPa

0 psi to 200 psi

PM200-G2M 0 MPa to 2 MPa

0 psi to 300 psi

PM200-G2.5M 0 MPa to 2.5 MPa

0 psi to 360 psi

PM200-G3.5M 0 MPa to 3.5 MPa

0 psi to 500 psi

PM200-G4M 0 MPa to 4 MPa

0 psi to 580 psi

PM200-G7M 0 MPa to 7 MPa

0 psi to 1000 psi

PM200-G10M 0 MPa to 10 MPa

0 psi to 1500 psi

PM200-G20M 0 MPa to 20 MPa

0 to 3000 psi

HS Code

9031.80
