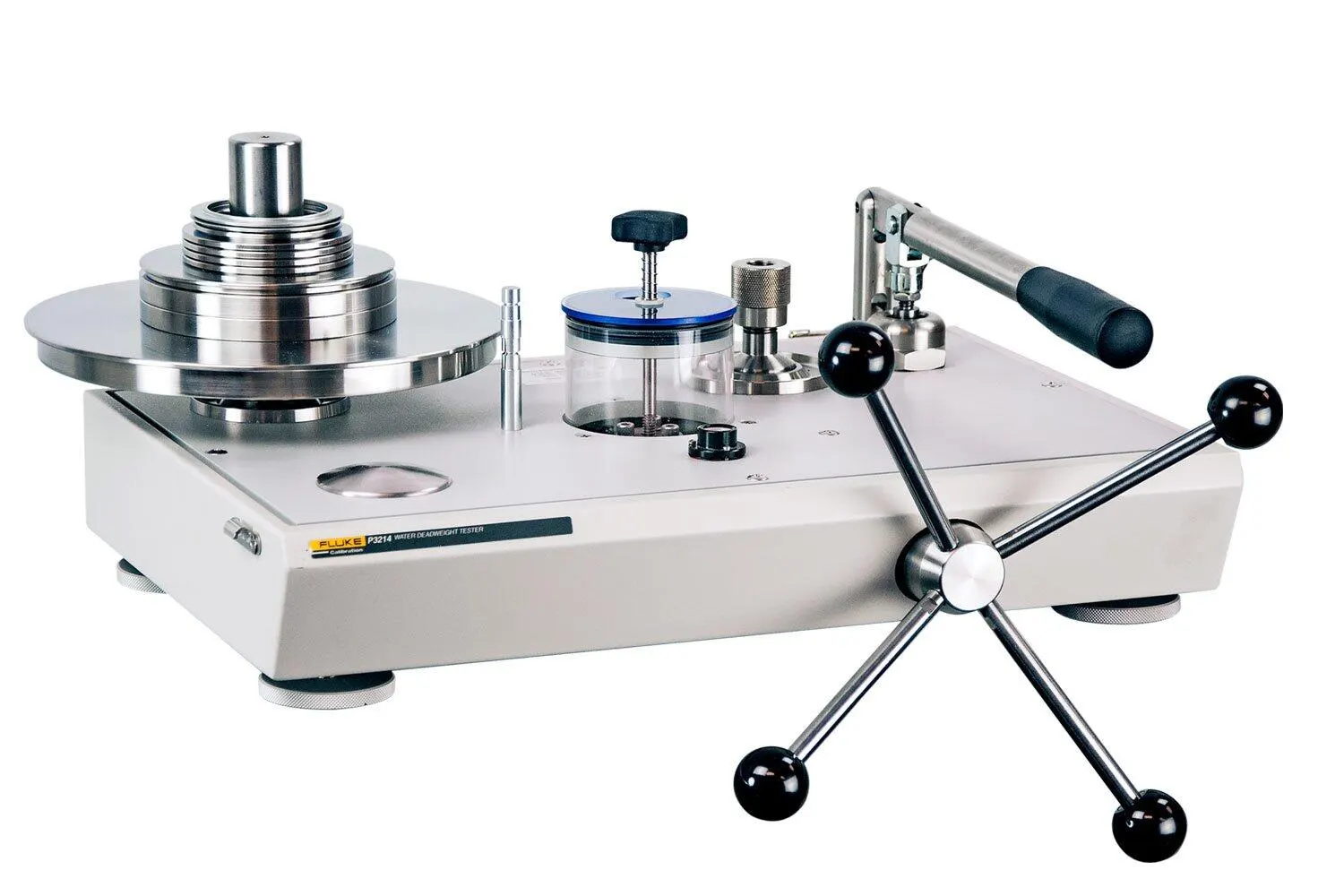

Fluke Calibration P3200 Hydraulic Deadweight Tester

The P3200 Distilled Water Operated Hydraulic Deadweight Testers are available in single or dual piston formats for increased operating ranges.

Manufacturer part number (MPN)

3936926 Brand: Fluke Category: Tools Distilled water operated: Ranges to 10,000 psi (700 bar) Accuracy1: ±0.015% of reading (±0.008% optional) Standard weight material: Series 3 non-magnetic austenitic stainless steel Weight density: 7.8 g/cm³ Optional fractional weights: Solution heat treated aluminum Piston material: Tungsten carbide with nickel binder Density- 15.0 g/cm³ Cylinder material: Hardened martensitic steel Tungsten carbide (water above 500 psi, 35 bar) Thermal coefficients of expansion: Oil piston/cylinder 16.5 ppm/°C Water (above 500 psi, 35 bar) 11 ppm/°C Test port adaptors: 1/8, 1/4, 3/8 and 1/2 NPT or BSP Instrument weight: 36 lbs (16 kg) Instrument size (W x D x H): 17.5 x 12 x 8.5 in (440 x 300 x 215 mm) Mass set weight (typical): 80 lbs (36 kg) Reservoir volume: 150 cc Screw press displacement: 5.5 cc Pump displacement: 4.7 cc per stroke O-ring seal materials: Buna N as standard, Viton and EPDM available minimum standard weight increments: Up to 500 psi (35 bar): 1 psi (0.1 bar) 500 to 5000 psi (35 to 350 bar): 10 psi (1 bar) 5000 to 20,000 psi (350 to 1400 bar): 20 psi (2 bar) Model P3112: 1 psi (0.1 bar) Operating fluids: Distilled water PressCal software: Windows-based software program that allows users to easily apply all necessary corrections to enhance the deadweight tester performance. Calibration details are then stored and/or used to automatically create a calibration certificate. PressCal is provided as standard with all 0.008% instruments

HS Code

9030.33
