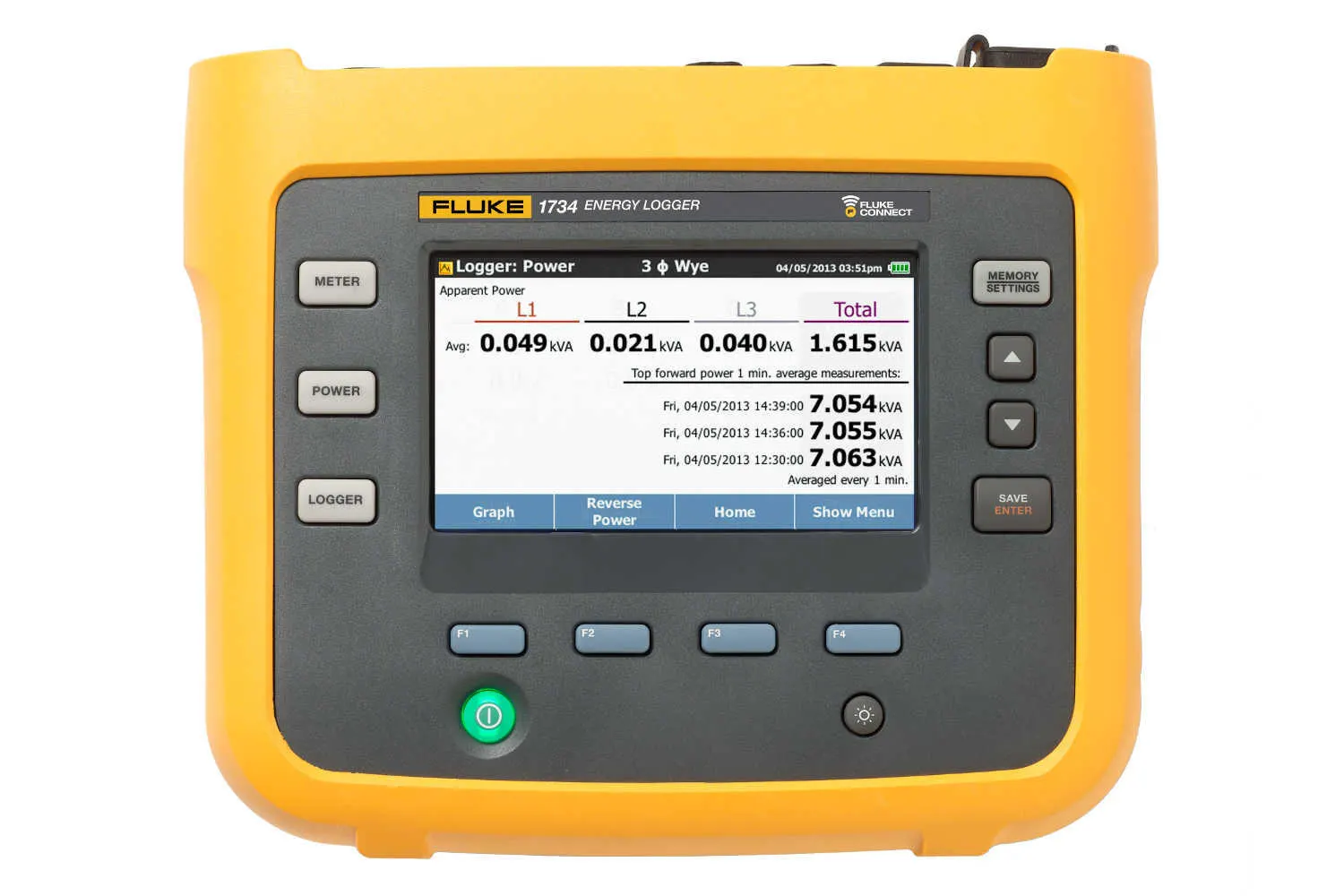

Fluke 1732 and 1734 Three Phase Power Measurement Logger

The Fluke 1732 and 1734 delivers easy to use three phase power measurements for identifying energy waste, overloaded circuits and routine load studies.

Manufacturer part number (MPN)

4706566 Brand: Fluke Category: Tools Parameter Range: Resolution Voltage 1000 V: 0.1 V 1500 A 1 A: ±(1% + 0.02%) i17xx-flex 3000 24" 300 A: 1 A 3000 A 10 A: ±(1% + 0.03%) i17xx-flex 6000 36" 600 A: 1 A 6000 A 10 A: ±(1.5% + 0.03%) i40s-EL clamp 4 A: 1 mA 40 A 10 mA: ±(0.7% + 0.02%) Frequency 42.5 Hz to 69 Hz: 0.01 Hz Auxillary input ±10 V dc: 0.1 mV Voltage min/max 1000 V: 0.1 V THD on voltage 1000%: 0.1% THD on current 1000%: 0.1% Parameter Influence quantity: iFlex1500-12 150 A / 1500 A 300 A / 3000 A: 600 A / 6000 A Active Power P PF ≥ 0.99: 1.2% + 0.005% Active Energy Ea PF ≥ 0.99: 1.2% + 0.005% Apparent power S 0 ≤ PF ≤ 1: 1.2% + 0.005% Apparent Energy Eap 0 ≤ PF ≤ 1: 1.2% + 0.005% Reactive power Q 0 ≤ PF ≤ 1: 2.5% of measured apparent power Reactive Energy Er 0 ≤ PF ≤ 1: 2.5% of measured apparent power Power Factor PF -: ±0.025 Displacement Power Factor -: ±0.025 DBF/cosϕ -: ±0.025 Additional uncertainty in% of range¹ VP-N>250 V: 0.015% Voltage range: 100 V to 500 V using safety plug input when powering from the measurement circuit Power consumption: Maximum 50 VA (max. 15 VA when powered using IEC 60320 input) Efficiency: ≥ 68.2% (in accordance with energy efficiency regulations) Mains power frequency: 50/60 Hz ±15% Battery: Li-ion 3.7 V, 9.25 Wh, customer-replaceable On-battery runtime: Four hours in standard operating mode, up to 5.5 hours in power saving mode Resolution: 16-bit synchronous sampling Sampling frequency: 10.24 kHz at 50/60 Hz, synchronized to mains frequency Input signal frequency: 50/60 Hz (42.5 to 69 Hz) Circuit types: 1-φ, 1-φ IT, Split phase, 3-φ delta, 3-φ wye, 3-φ wye IT, 3-φ wye balanced, 3-φ Aron/Blondel (2-element delta), 3-φ delta open leg, Currents only (load studies) Data storage: Internal flash memory (not user replaceable) Memory size: Typical 10 logging sessions of 8 weeks with 1-minute intervals and 500 events¹ Measured parameters: Voltage, current, aux, frequency, THD V, THD A, power, power factor, fundamental power, DPF, energy Averaging interval: User selectable: 1 sec, 5 sec, 10 sec, 30 sec, 1 min, 5 min, 10 min, 15 min, 30 min Averaging time min/max values: Voltage, Current: Full cycle RMS updated every half cycle Aux, Power: 200ms Interval: User selectable: 5 min, 10 min, 15 min, 20 min, 30 min, off Power: IEEE 1459 USB-A: File transfer via USB flash drive, firmware updates Max. current: 120 mA WiFi: File transfer and remote control via direct connection or WiFi infrastructure Bluetooth: Read auxiliary measurement data from Fluke Connect® 3000 series modules (requires 1734, or 1732 upgrade option) USB-mini: Data download device to PC Number of inputs: 4 (3 phases and neutral) Maximum input voltage: 1000 Vrms, CF 1.7 Input impedance: 10 MΩ Bandwidth (-3 dB): 42.5 Hz - 3.5 kHz Scaling: 1:1 and variable Measurement category: 1000 V CAT III/600 V CAT IV Input voltage: Clamp input: 500 mVrms/50 mVrms; CF 2.8 Rogowski coil input: 150 mVrms/15 mVrms at 50 Hz, 180 mVrms/18 mVrms at 60 Hz; CF 4; all at nominal probe range Range: 1 A to 150 A/10 A to 1500 A with thin flexible current probe i17XX-flex1500 12" Input range: 0 to ±10 V dc, 1reading/s Scale factor (available 2014): Format: mx + b (gain and offset) user configurable Displayed units (available 2014): User configurable (7 characters, for example, °C, psi, or m/s) Supported modules: Fluke Connect® 3000 series Acquisition: 1 reading/s Operating temperature: -10 °C to +50 °C (14 °F to 122 °F) Storage temperature: -20 °C to +60 °C (-4 °F to 140 °F), with battery: -20 °C to +50 °C (-4 °F to 122 °F) Operating humidity: 10 °C to 30 °C (50 °F to 86 °F) max. 95% RH Operating altitude: 2000 m (up to 4000 m derate to 1000 V CAT II/600 V CAT III/300 V CAT IV) Storage altitude: 12,000m Enclosure: IP50 in accordance with EN60529 Vibration: MIL-T-28800E, Type 3, Class III, Style B Safety: IEC 61010-1 Electromagnetic compatibility: EN 61326-1: Industrial CISPR 11: Group 1, Class A Temperature coefficient: 0.1 x accuracy specification/°C Color LCD display: 4.3-inch active matrix TFT, 480 pixels x 272 pixels, resistive touch panel Warranty: Instrument and power supply: Two-years (battery not included) Dimensions: Instrument: 19.8 x 16.7 x 5.5 cm (7.8 x 6.6 x 2.2 in) Weight: Instrument: 1.1 kg (2.5 lb) Tamper protection: Kensington lock slot Measuring range: 1 to 150 A ac/10 to 1500 A ac Nondestructive current: 100 kA (50/60 Hz) Intrinsic error at reference condition*: ±0.7% of reading Accuracy 173x + iFlex: ±(1% of reading + 0.02% of range) Temperature coefficient over operating temperature range: 0.05% of reading/°C 0.09% of reading/°F Working voltage: 1000 V CAT III, 600 V CAT IV Probe cable length: 305 mm (12 in) Probe cable diameter: 7.5 mm (0.3 in) minimum bending radius: 38 mm (1.5 in) Output cable length: 2 m (6.6 ft) Probe cable material: TPR Coupling material: POM + ABS/PC Output cable: TPR/PVC Temperature, non-operating: -40 °C to +80 °C (-40 °F to 176 °F) Relative humidity, operating: 15% to 85% non-condensing IP rating: IEC 60529:IP50

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/power-quality/1732-1734
