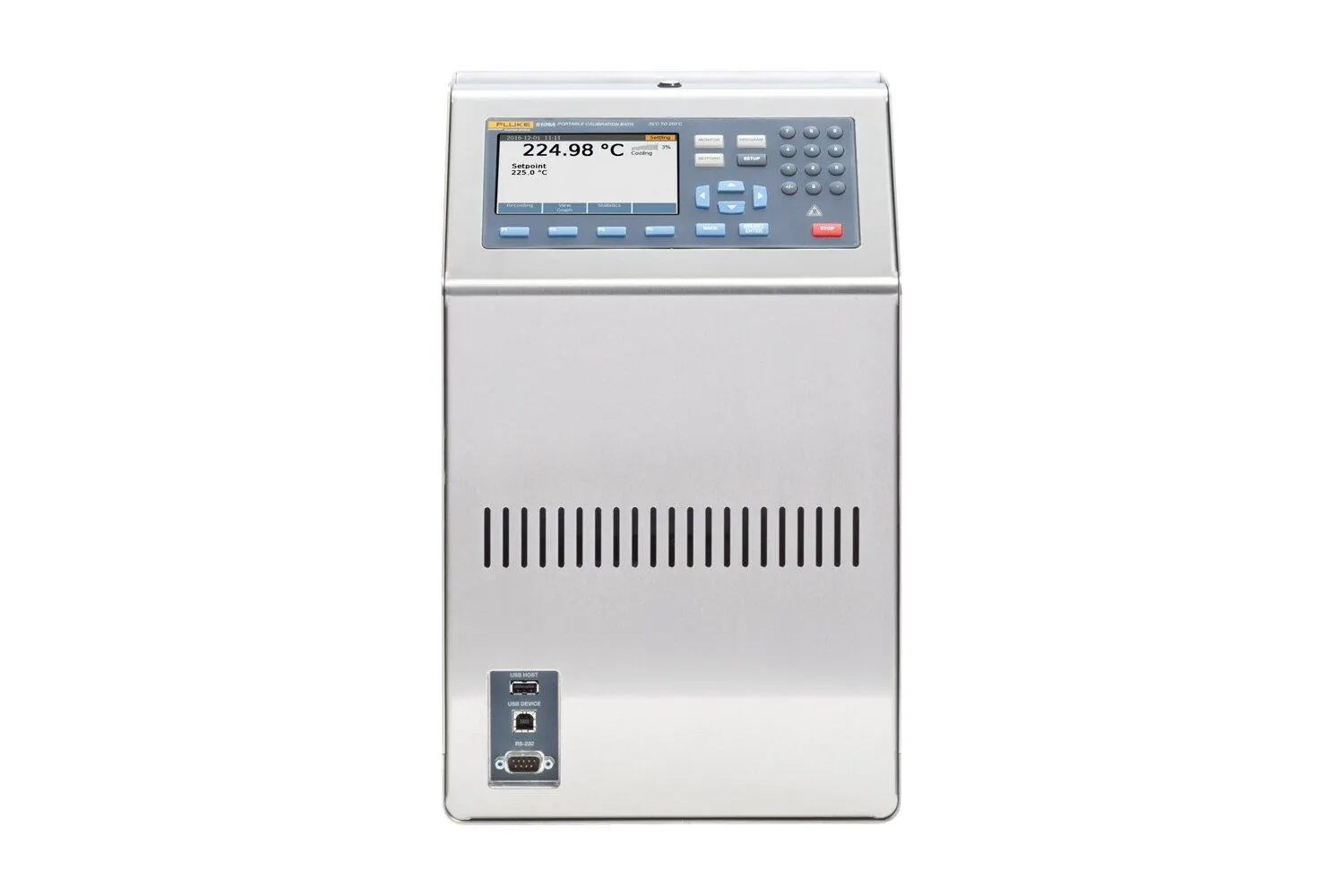

Fluke Calibration 6109A / 7109A Portable Calibration Baths

The Fluke Calibration 6109A and 7109A Portable Calibration Baths light process industry professionals calibrate four times more sanitary sensors per batch in less time and with twice the accuracy of other baths in this class.

Manufacturer part number (MPN)

4757524

Brand

Fluke

Category

Tools

Size

Height: 382 mm (15 in) Width: 242 mm (9.5 in) Depth: 400 mm (15.7 in)

Weight

6109A: 16 kg (35 lb) 7109A: 20 kg (44 lb)

Fluid volume

2.5 liters (0.66 gallons)

Fluid working area

75 mm x 75 mm (3 in x 3 in)

Maximum fluid depth

154 mm (6.1 in)

Factory calibration

Traceable accredited calibration included

6109A

7109A

Range (at 25 °C ambient temperature) 35 °C to 250 °C

–25 °C to 140 °C (–15 °C cover off)

Stability 0.015 °C

0.01 °C

Typical uniformity 0.03 °C up to 200 °C 0.04 °C above 200 °C

0.02 °C

Typical settling time 15 minutes

10 minutes

Function Range

Accuracy (Maximum Permissible Error)

Reference input resistance 0 Ω to 42 Ω 42 Ω to 400 Ω

0.0025 Ω 0.006 %

Reference input temperature -25 °C to 250 °C

0.007 % + 0.015 °C

Resistance sensing current 1 mA

8 %

DUT 4-wire resistance 0 Ω to 31 Ω 31 Ω to 400 Ω

0.0025 Ω 0.008%

DUT 3-wire resistance accuracy 0 Ω to 400 Ω

0.12 Ω

Thermocouple mV -10 mV to 100 mV

0.025 % + 0.01 mV

Reference junction temperature 0 °C to 40 °C

0.35 °C

Thermocouple temperature -25 °C to 250 °C

J: 0.44 °C E: 0.44 °C L: 0.42 °C

mA range 0 mA to 22 mA

0.02 % + 0.002 mA

Loop power 24 V dc

± 6 V

HS Code

9031.80
