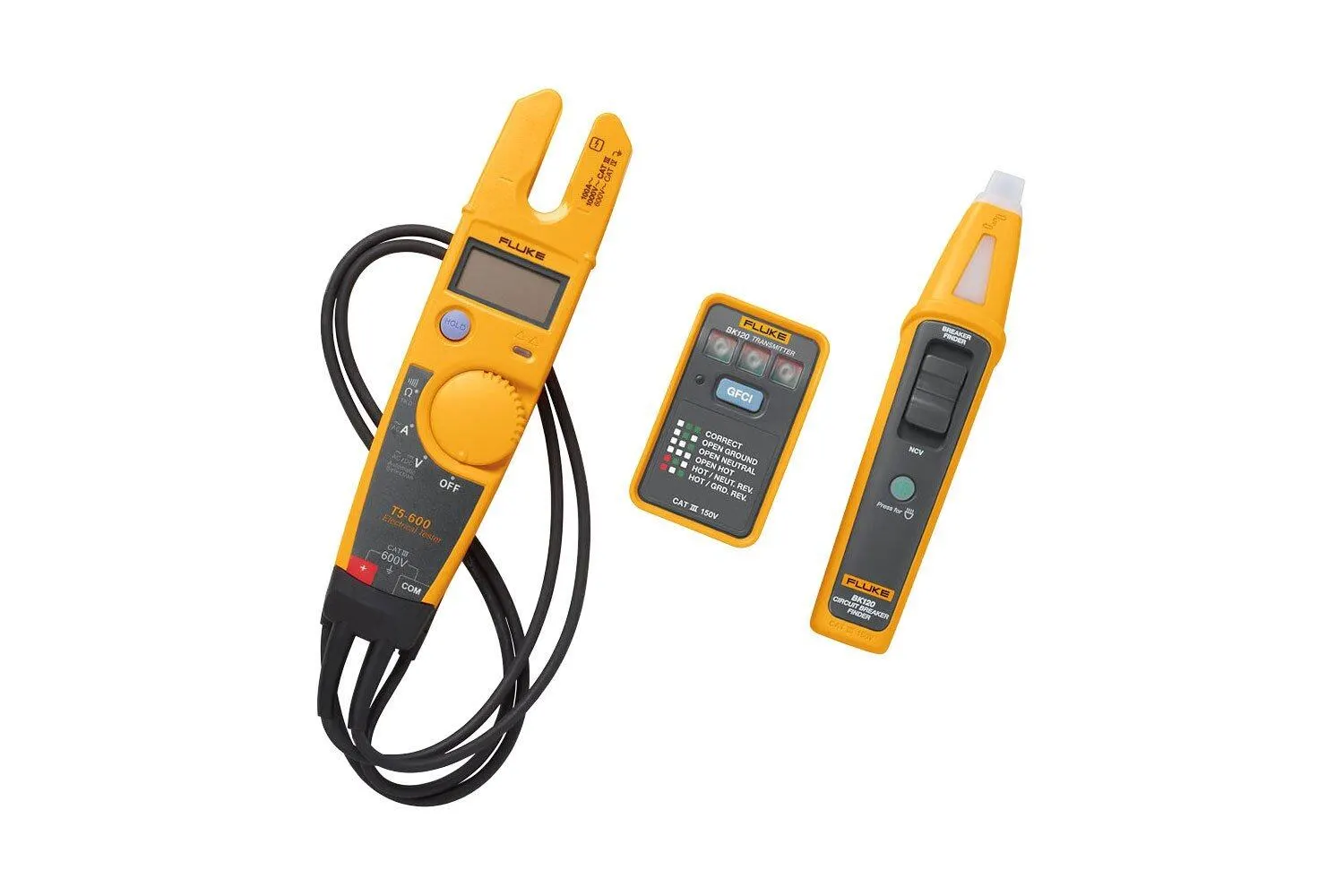

Fluke BK120 SmartTrace™ Breaker Finder and T5-600 Electrical Tester

Comprehensive kit offering both the BK120 breaker finder and T5-600 electrical tester. Enhance safety, simplify maintenance, and troubleshoot with confidence

Manufacturer part number (MPN)

5587548

Brand

Fluke

Category

Tools

BK120 Transmitter

BK120 Receiver

Breaker finder indication —

Visual and audio

NCV detection —

90 V AC to 240 V AC, 50/60 Hz Dual sensitivity Visual and audio indications

Flashlight —

✓

Auto power off —

✓

Low battery indication —

✓

Power supply Line powered

2 AAA

Jaw opening

12.9 mm (0.5 in)

Max wire size

1/0 THHN Cable

Current range AC rms

0 to 100.0 A

Accuracy AC current (50/60 Hz)

3% ± 3 counts

AC response

Averaging

Voltage range AC/DC

0 to 600 V

Voltage accuracy AC

1.5% ± 2 counts

Voltage accuracy DC

1% ± 1 count

Resistance range

0 to 1000 Ω

Continuity beeper threshold

On at 400 Ω

Volts indicator LED threshold

Guaranteed on by 30 V AC

Operating temperature

-10°C to 50°C

Storage temperature

-30°C to 60°C

Humidity (without condensation)

0% to 95% (5°C to 30°C); 0% to 75% (30°C to 40°C); 0% to 45% (40°C to 50°C)

Dust/water resistance

Yes

Operating altitude

2000 meters max

Temperature coefficient

0.1 x (specified accuracy)/°C ( 28°C)

Measurement Category

IEC 61010-2-032, IEC61010-2-033: CAT III 600 V, 100 A ac

Agency approvals

CSA, TUV

Maximum voltage

600 V between any terminal and earth ground

Size

30.5 x 51 x 203 mm

Weight

300 g

Warranty

Two-years

Battery life

200 hour zinc chloride, 400 hour alkaline

Battery type

2 x AA

Low battery indicator

Yes

Current sensor opening

12.9 mm

HS Code

9030.33
