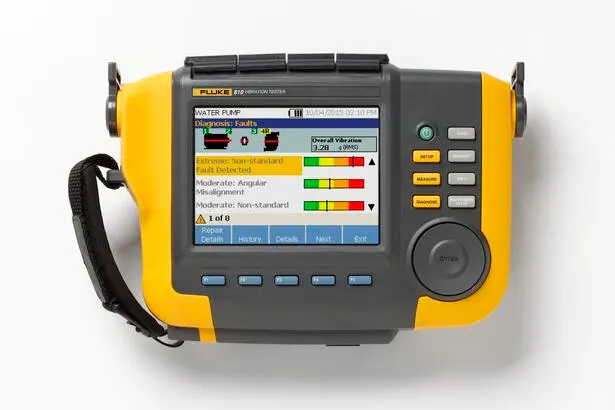

Fluke 810/2026 Vibration Tester

Fluke 810s are handheld vibration analyzers & testers that help identify and prioritize mechanical problems to help make informed maintenance decisions.

Manufacturer part number (MPN)

3542635

Brand

Fluke

Category

Tools

Standard Faults

Unbalance, looseness, misalignment and bearing failures

Analysis For

Motors, fans, blowers, belts and chain drives, gearboxes, couplings, centrifugal pumps, piston pumps, sliding vane pumps, propeller pumps, screw pumps, rotary thread/gear/lobe pumps, piston compressors, centrifugal compressors, screw compressors, closed coupled machines, spindles

Motor Rotational Speed Range

200 rpm to 12000 rpm

Diagnosis Details

Plain-text diagnosis, fault severity (slight, moderate, serious, extreme), repair details, cited peaks, spectra

Ranging

Automatic

A/D Converter

4 channel, 24 bit

Usable Bandwidth

2 Hz to 20 kHz

Sampling

51.2 Hz

Digital Signal Processing Functions

Automatically configured anti-alias filter, high-pass filter, decimation, overlapping, windowing, FFT, and averaging

Sampling Rate

2.5 kHz to 50 kHz

Dynamic Range

128 dB

Signal To Noise Ratio

100 dB

FFT Resolution

800 lines

Spectral Windows

Hanning

Frequency Units

Hz, orders, cpm

Amplitude Units

in/sec, mm/sec, VdB (US), VdB* (Europe)

Non-volatile Memory

SD micro memory card, 2 GB internal + user accessible slot for additional storage

Dimensions (H x D x W)

18.56 x 7.00 x 26.72 cm (7.30 x 2.76 x 10.52 in)

Weight (With Battery)

1.9 kg (4.2 lb)

Display

¼ VGA, 320 × 240 Color (5.7 inch diagonal) TFT LCD with LED backlight

Input/Output Connections Triaxial sensor connection

4 pin M12 connector

Input/Output Connections Single axis sensor connection

BNC connector

Input/Output Connections PC Connection

Mini ‘B’ USB (2.0) connector

Battery Battery type

Lithium-ion, 14.8 V, 2.55 Ah

Battery Battery charging time

Three hours

Battery Battery discharge time

Eight hours (under normal conditions)

AC Adapter Input voltage

100 VAC to 240 VAC

AC Adapter Input frequency

50/60 Hz

Operating System

WinCE 6.0 Core

Language Support

English, French, German, Italian, Japanese, Portuguese, Simplified Chinese, Spanish

Warranty

Three-years

Operating Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature

-20°C to 60°C (-4°F to 140°F)

Operating Humidity

10% to 95% RH (non-condensing)

Agency Approvals

CHINA RoHS, CSA, CE, C TICK, WEEE

Electromagnetic Compatibility

EN 61326-1:2006, EN 61010:1:2001 2nd ed.

Sensor Type

Accelerometer

Sensitivity

100 mV/g (±5%, 25°C)

Acceleration Range

80 g peak

Amplitude Nonlinearity

1%

Frequency Response Z

2 - 7,000 Hz ±3dB

Frequency Response X, Y

2 - 5,000 Hz ±3dB

Power Requirement (IEPE)

18 VDC to 30 VDC, 2 mA to 10 mA

Bias Output Voltage

12 VDC

Grounding

Case grounded

Sensing Element Design

PZT ceramic / shear

Case Material

316L stainless steel

Mounting

10-32 captive socket head screw, 2-pole rare earth magnet (48 lb pull strength)

Output Connector

4-Pin, M12

Mating Connector

M12 - F4D

Vibration Limit

500 g peak

Shock Limit

5000 g peak

Electromagnetic Sensitivity, Equivalent g

100 μg/gauss

Sealing

Hermetic

Temperature Range

-50°C to 120°C (-58°F to 248°F) ±7%

HS Code

9030.33
