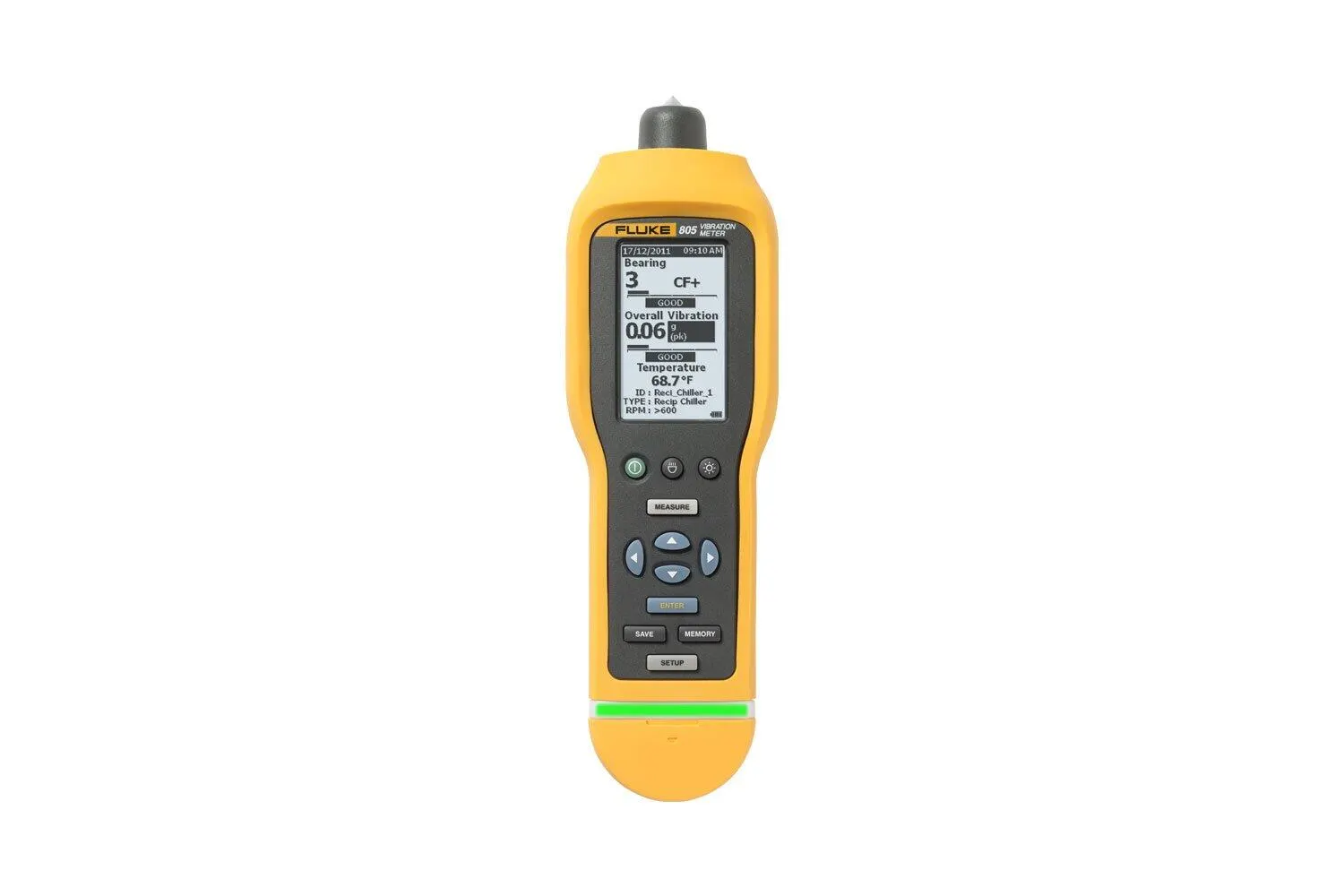

Fluke 805 Vibration Meter
Pricing
Request a quote
We reply within 24 hours
Product Description
Understand equipment conditions with vibration analysis using Fluke's handheld vibration testers & systems for troubleshooting & diagnosing mechanical problems.
Technical Specifications
- Manufacturer part number (MPN)
- 4094385
- Brand
- Fluke
- Category
- Tools
- Low frequency range (overall measurement)
- 10 Hz to 1,000 Hz
- High frequency range (CF+ measurement)
- 4,000 Hz to 20,000 Hz
- Severity levels
- Good, satisfactory, unsatisfactory, unacceptable
- Vibration limit
- 50 g peak (100 g peak-peak)
- A/D converter
- 16-bit
- Signal to noise ratio
- 80 dB
- Sampling rate Low frequency
- 20,000 Hz
- Sampling rate High frequency
- 80,000 Hz
- Real time clock backup
- Coin battery
- Sensitivity
- 100 mV g ±10%
- Measurement range
- 0.01 g to 50 g
- High frequency range
- 4,000 Hz to 20,000 Hz
- Resolution
- 0.01 g
- Accuracy
- At 100 Hz ±5% of measured value
- Acceleration
- g, with sec²
- Velocity
- in/sec, mm/sec
- Displacement
- mils, mm
- Range
- -20°C to 200°C (-4°F to 392°F)
- Focal length
- Fixed, at ~3.8 cm (1.5 in)
- Frequency range
- 10 Hz to 1,000 Hz
- Bias voltage (to supply power)
- 20 VDC to 22 VDC
- Bias current (to supply power)
- Maximum 5 mA
- External interfaces
- USB 2.0 (full speed) communication
- Data capacity
- Database on internal flash memory
- Upgrade
- Through USB
- Memory
- Up to 3,500 measurements
- Electromagnetic interference
- Standard EN 61000-4-3
- RE
- Standard CISPR 11, Class A
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -30°C to 80°C (-22°F to 176°F)
- Operating humidity
- 10% to 95% RH (non-condensing)
- Operating/storage altitude
- Sea level to 3,048 meters (10,000 feet)
- IP rating
- IP54
- Drop test
- 1 meter
- Battery type
- AA (2) Lithium Iron Disulfide
- Battery life
- 250 measurements
- Size (L x W x H)
- 24.1 x 7.1 x 5.8 cm (9.5 x 2.8 x 2.3 in)
- Weight
- 0.40 kg (0.89 lb)
- Connectors
- USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector)
Cross References
- OEM-URL https://www.fluke.com/en-us/product/mechanical-maintenance/vibration-analysis/fluke-805
Product Documentation
More from Fluke
Fluke
Fluke SCC120 Special Value Kit
646684
Fluke

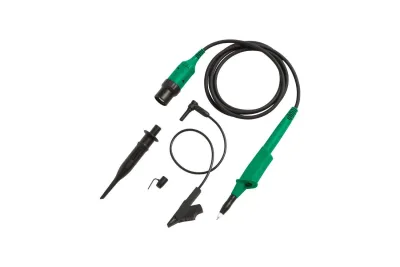

Fluke VPS410 Probe-sets, 10:1 (1 red, 1 blue, 1 grey, 1 green)
3894734
Fluke

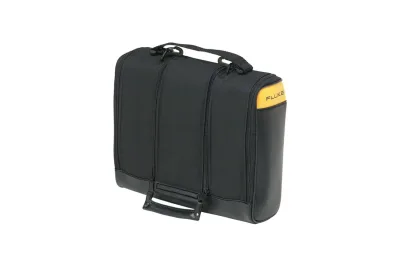

Fluke C789 Meter and Accessory Case
946694
Fluke

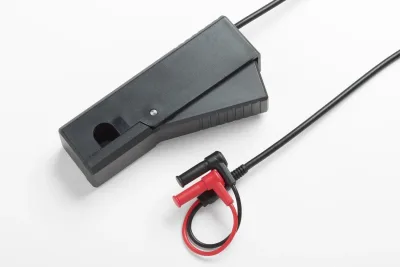

Fluke RPM80 Inductive Pick-Up/External Trigger
880849
Fluke

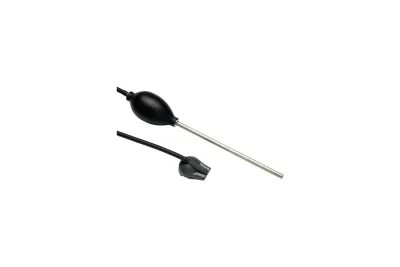

Fluke CO-205 Aspirator Kit
664714
Fluke

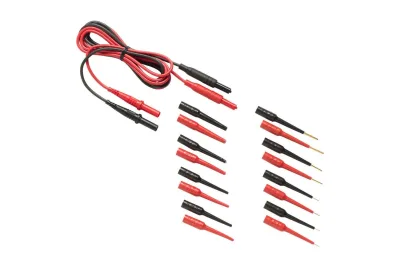

Fluke TL82 Automotive Pin and Socket Adapter Set
2150636
Fluke
Fluke Tripod 2
FLUKE-TI-TRIPOD-2
Fluke

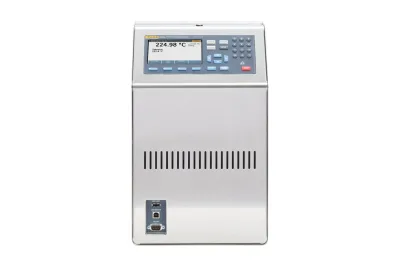

Fluke Calibration 6109A / 7109A Portable Calibration Baths
