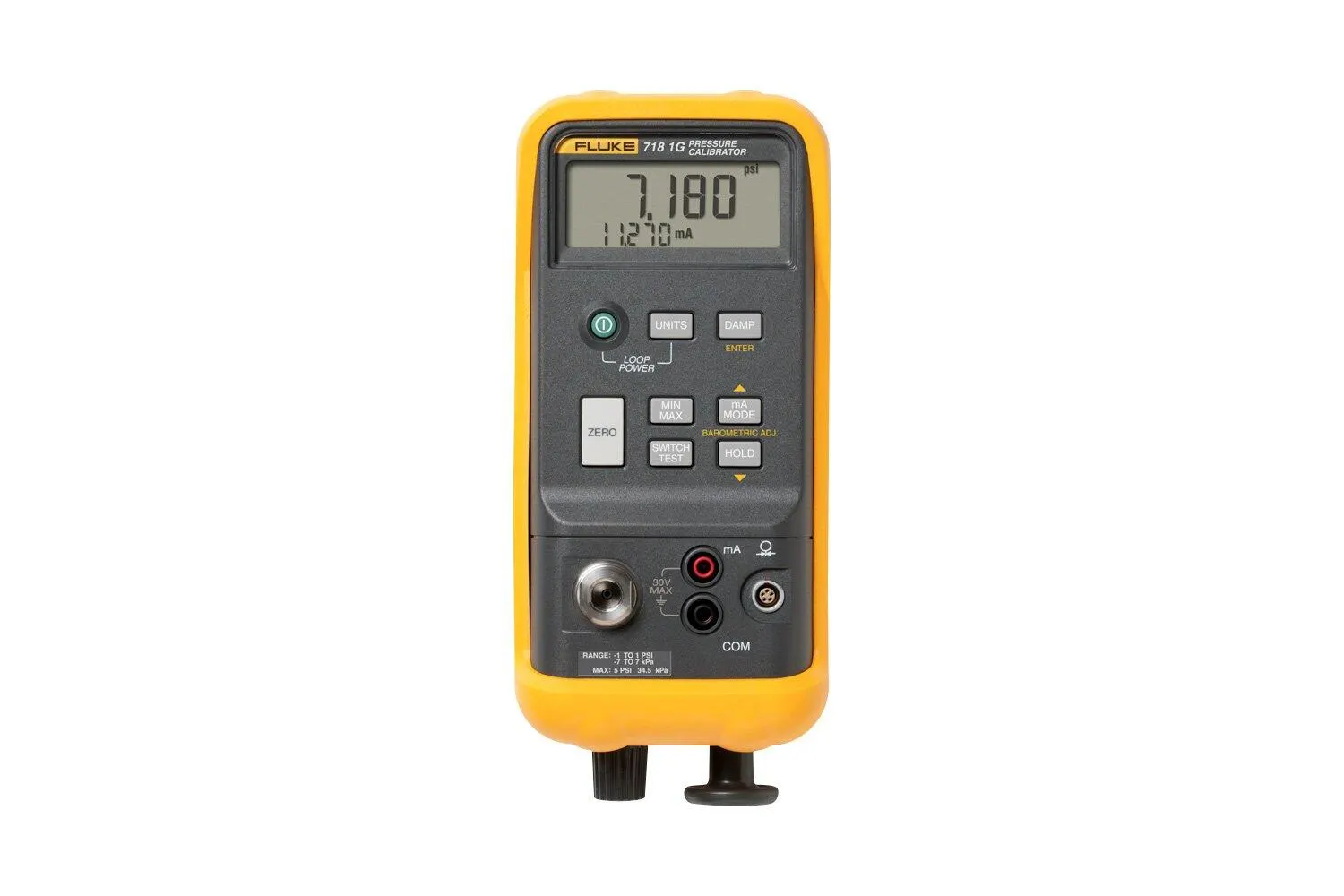

Fluke 718 Pressure Calibrator

The Fluke 718 Pressure Calibrator is the complete solution to pressure calibration, providing calibration for transmitters, gauges, & switches. See specs here.

Manufacturer part number (MPN)

2547148

Brand

Fluke

Category

Tools

Measure pressure

(Internal sensor)

Accuracy

0.025% full scale

Functions

Zero, min/max, hold, damp

Range

-1 psi to +1 psi, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)

Resolution

0.0001 psi, 0.001 mbar, 0.0001 kPa

Over pressure

5x Full Scale

Loop power range

24 V DC

Maximum voltage

30 volts (non-operating)

Temperature

-40°C to 60°C

Operating temperature

-10°C to 55°C

Relative humidity

95% (10°C to 30°C); 75% (30°C to 40°C); 45% (40°C to 50°C); 35% (50°C to 55°C)

Operating altitude

3,000 M max

Shock

1 M drop test

Vibration

Random, 2 g, 5 Hz – 500 Hz

Safety

CSA C22.2 No. 1010.1: 1992

EMC

EN50082-1: 1992 and EN55022: 1994 Class B

Size

216 x 94 x 66 mm (8.50 x 3.72 x 2.60 in)

Weight

992 g (35 oz)

Power, battery life

9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718

Battery life

4 to 20 hours typical, depending on functions used

Warranty

Three years (one year on pressure pump in Fluke 718)

Display

LCD, 5 digit pressure and current simultaneous

HS Code

9031.80

• OEM-URL https://www.fluke.com/en-us/product/calibration-tools/pressure-calibrators/fluke-718
