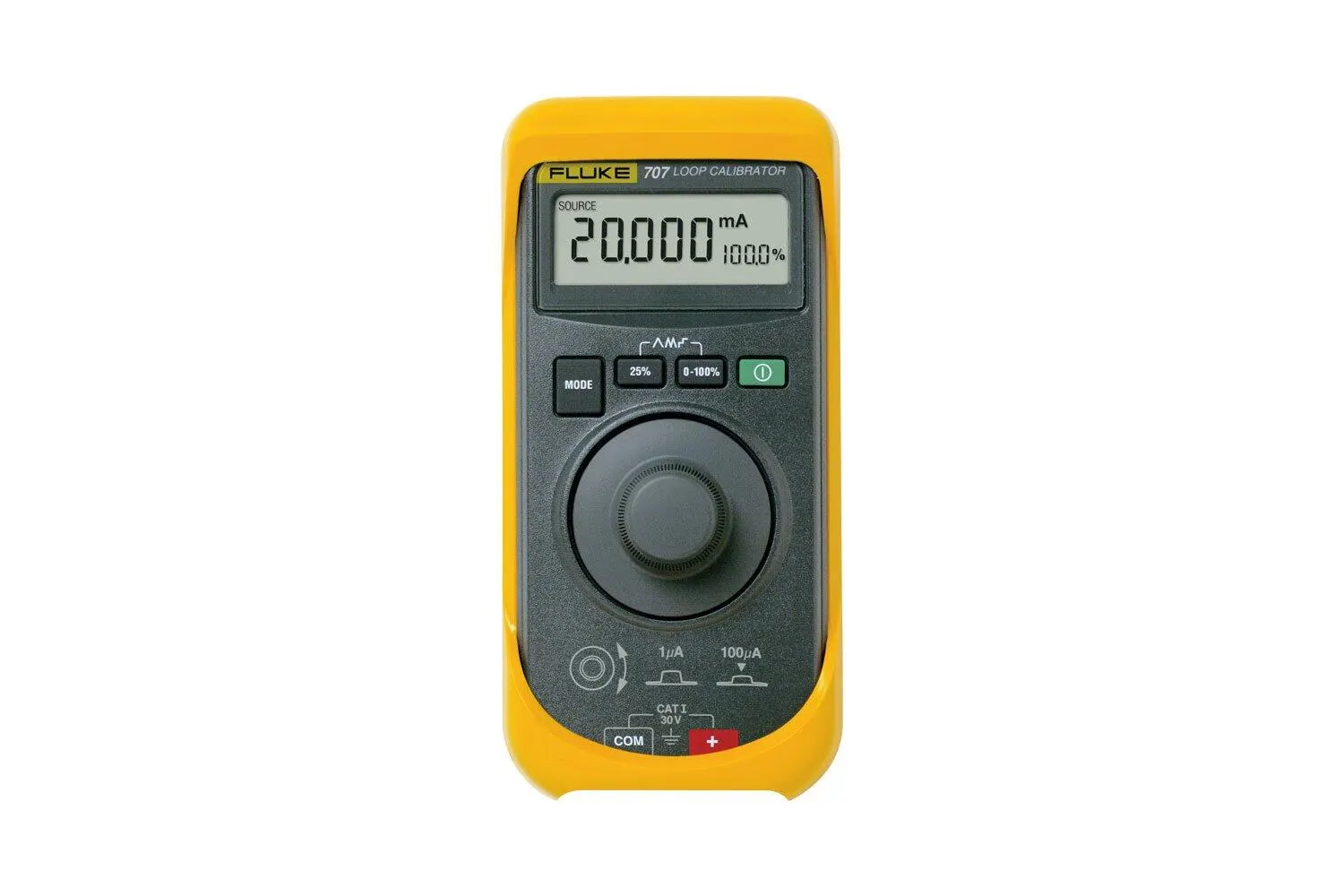

Fluke 707 Current Loop Calibrator with Quick Click Knob

The Fluke 707 Current Loop Calibrator delivers fast, one-handed, push-button loop checks. Get specs, reviews, & a free demo. Your solution awaits here.

Manufacturer part number (MPN)

1617262

Brand

Fluke

Category

Tools

Current measurement Range

0 to 24 mA

Current measurement Resolution

0.001 mA

Current measurement Accuracy

0.015% Rdg + 2 LSD

Current sourcing Range

0 to 20 mA or 4 to 20 mA

Current sourcing Accuracy

0.015% Rdg + 2 LSD

Current sourcing Drive capability

1200 Ω 950 Ω at 20 mA in HART mode

Current simulation Range

0 to 20 mA or 4 to 20 mA

Current simulation Accuracy

0.015% Rdg + 2 LSD

Current simulation Ext. loop voltage requirement

12-30 V

Loop power

While measuring mA, 24 V

Voltage measurement Range

0 to 28 V DC

Voltage measurement Resolution

1 mV

Voltage measurement Accuracy

0.015% Rdg + 2 LSD

Operating temperature

-10°C to 55°C

Storage temperature

-30°C to 60°C

Humidity (without condensation)

0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)

Temperature coefficient

-10°C to 18°C, 28°C to 55°C, ±.005% of range per °C

Safety

CSA C22.2 No. 1010.1:1992

EMC

EN50082-1:1992 and EN55022:1994 Class B

Maximum voltage

30 V

Size

152 x 70 x 41 mm

Weight

224 g (340 g including holster)

Batteries

One 9 V battery Alkaline

Warranty

Three years

Shock and vibration

Per MIL-T-28800 for a Class 2 Instrument

Display current and % of span

Yes

Auto step, auto ramp

Yes

Span check

Yes

HS Code

9031.80
