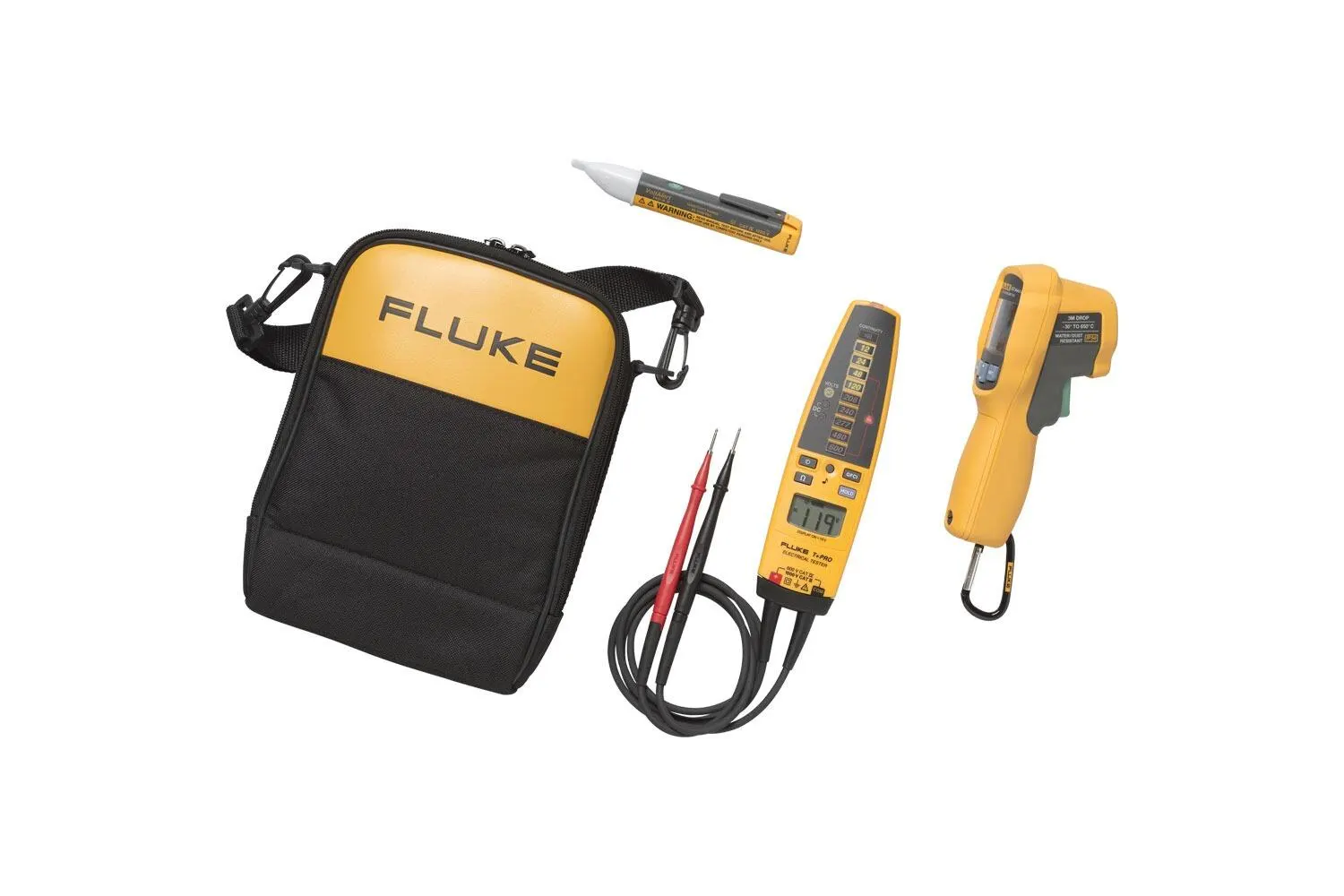

Fluke 62 MAX+/T+PRO/1AC IR Thermometer, T+PRO Voltage Continuity Tester and Voltage Detector Kit

The Fluke 62 MAX+ combined with the T+PRO voltage continuity tester and the 1-AC-II voltage detector, provides everything you need to solve problems quickly.

Manufacturer part number (MPN)

4296083

Brand

Fluke

Category

Tools

Temperature range

-30°C to 650°C (-22°F to 1202°F)

Accuracy

±1.0°C or ±1.0% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0

Response time (95%)

< 300 ms (95% of reading)

Spectral response

8 to 14 microns

Emissivity

0.10 to 1.00

Optical resolution

12:1 (calculated at 90% energy)

Display resolution

0.1°C (0.2°F)

Repeatability of readings

±0.5% of reading or < ±0.5°C (1°F), whichever is greater

Power

AA battery

Battery life

8 hours with laser and backlight on

Weight

255 g (8.99 oz)

Size

175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in)

Operating temperature

0°C to 50°C (32°F to 122°F)

Storage temperature

-20°C to 60°C (-4°F to 140°F), (without battery)

Operating humidity

10% to 90% RH non-condensing at 30°C (86°F)

Operating altitude

2000 meters above mean sea level

Storage altitude

12,000 meters above mean sea level

IP rating

IP 54 per IEC 60529

Drop test

3 meters

Vibration and shock

IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms

EMC

EN 61326-1:2006 EN 61326-2:2006

Standards and agency approval Compliance

EN/IEC 61010-1: 2001

Standards and agency approval Laser safety

FDA and EN 60825-1 Class II

Temperature Operating

-10°C to 55°C (14°F to 131°F)

Temperature Storage

-30°C to 60°C (-22°F to 140°F)

Relative humidity

0°C to 30°C (32°F to 86°F): 90%

Altitude Operating

2,000 m (approx. 6,561.6 ft)

Altitude Storage

10,000 m (approx. 32,808.4 ft)

Battery type/life

AAA (2); 40 hours

Shock, vibration

Sinusoidal vibration per MIL-PRF-28800F for a Class 2 instrument

Safety

ISA-82.02.01 (IEC 61010-1 Mod) Second Edition, CAN/CSA-C22.2 No. 61010-1 Second Edition, IEC 61010 - 1 to 1000 V CAT III/600 V CAT IV

AC bandwidth

45 Hz to 66 Hz

Maximum working voltage

1000 V AC/DC

Maximum measurable voltage

600 V AC/DC

Duty cycle

Indefinitely for voltages up to 240 V

Voltage hazard LED

LEDs turn on at voltages > 30 V AC/DC ±35%

LED voltage indication levels

12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 277 V, 480 V, 600 V

LED voltage indication levels for Canadian version

12 V, 24 V, 48 V, 120 V, 208 V, 240 V, 347 V, 480 V, 600 V

LEDs

LEDs turn on between 90% and 100% of the indicated voltage on the LED, except for the 12 V LED which turns on between 50% and 100%

LCD accuracy on T+PRO only AC voltage

±(3% rdg + 2 digits)

LCD accuracy on T+PRO only DC voltage

±(2% rdg + 2 digits)

LCD accuracy on T+PRO only Resistance

±(5% rdg + 3 digits)

LCD resolution

0.1 V for voltages < 50 V, 1 V for voltages ≥ 50 V 0.01 kΩ for resistance measurement (For T+PRO Only)

GFCI test current

100 V - 150 V @ 6 mA - 9 mA AC, 150 V - 240 V < 12 mA

Standard input test current

< 5 mA

Size (H x W x L)

1.3 x 2.15 x 7.6 in (3.3 x 5.46 x 19.3 cm)

Operating principle

Senses the steady state electrostatic field produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage.

Voltage sensing ranges

Nominally, 90 VAC to 1000 VAC or 200 VAC to 1000 VAC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model

Detector tip style

Blade or round, depending on model

Light source

One high intensity red LED

Agency approvals

c CSA us, CE, C-Tick

Safety rating

1000 V, CAT IV

Operating humidity ranges 0% to 95%

(0°C to 30°C)

Operating humidity ranges 0% to 75%

(30°C to 40°C)

Operating humidity ranges 0% to 45%

(40°C to 55°C)

Batteries

2 AAA alkaline batteries included

HS Code

9030.33
