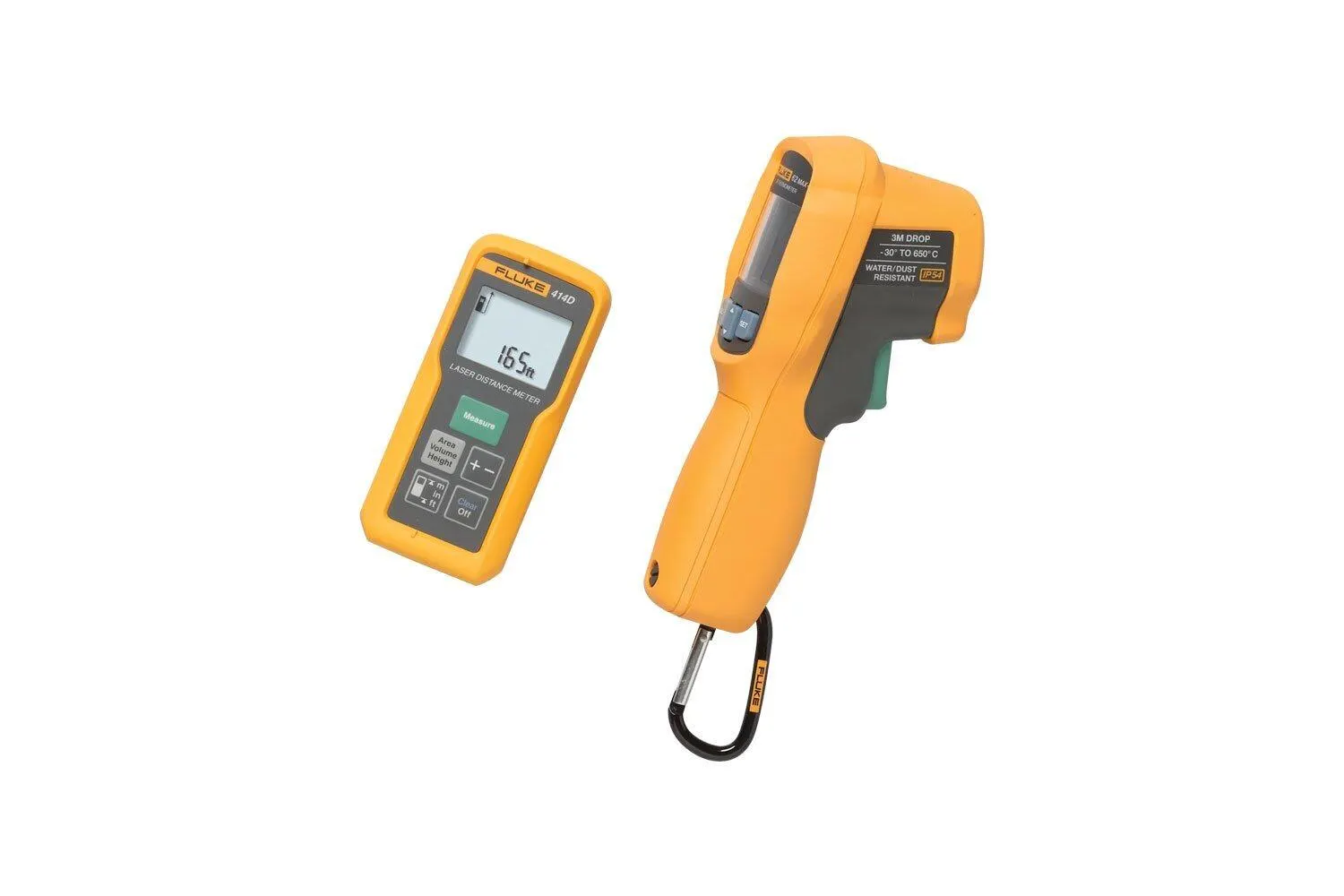

Fluke 414D/62 MAX+ Laser Distance Meter/Infrared Thermometer Combo Kit
Part number4296052HS code9025.19
Safety & Detection
Tools
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Fluke 414D/62 MAX+ Laser Distance Meter HVAC Kit - troubleshoot electrical/hvac problems. IR thermometer tests for overheating; meter measures distance, area, and volume.
Technical Specifications
- Manufacturer part number (MPN)
- 4296052
- Brand
- Fluke
- Category
- Tools
- Typical Measuring Tolerance ¹
- ±2.0 mm ³
- Maximum Measuring Tolerance ²
- ±3.0 mm ³
- Range At Leica Target Plate GZM26
- 50 m / 165 ft
- Typical Range ¹
- 40 m / 130 ft
- Range At Unfavorable Condition 4
- 35 m / 115 ft
- Smallest Unit Displayed
- 1 mm / 1/16 in
- Ø Laser Point At Distances
- 6 / 30 / 60 mm (10 / 50 / 100 m)
- Measuring Tolerance To Laser Beam 5
- No
- Measuring Tolerance To Housing 5
- No
- Range
- No
- Laser Class
- 2
- Laser Type
- 635 nm, < 1 mW
- Protection Class
- IP40
- Automatic Laser Off
- After 90 seconds
- Automatic Power Off
- After 180 seconds
- Battery Life (2 x AAA) 1.5 V NEDA 24A/IEC LR03
- Up to 3,000 measurements
- Size (L x W x D)
- 116 x 53 x 33 mm
- Weight (with batteries)
- 113 g
- Maximum Altitude
- 3000 m
- Maximum Relative Humidity
- 85% at 20 °F to 120 °F (-7 °C to 50 °C)
- Safety
- IEC Standard No. 61010-1:2001
- EMC
- EN 55022:2010
- Temperature Range
- -30 °C to 650 °C (-22 °F to 1202 °F)
- Accuracy
- ±1.0 °C or ±1.0% of reading, whichever is greater
- Response Time (95%) Fluke 62 MAX+
- < 300 ms (95% of reading)
- Response Time (95%) Spectral response
- 8 to 14 microns
- Response Time (95%) Emissivity
- 0.10 to 1.00
- Optical Resolution
- 12:1 (calculated at 90% energy)
- Display Resolution
- 0.1 °C (0.2 °F)
- Repeatability Of Readings
- ±0.5% of reading or < ±0.5 °C (1 °F), whichever is greater
- Power
- AA battery
- Battery Life
- 8 hours with laser and backlight on
- Weight
- 255 g (8.99 oz)
- Operating Temperature
- 0 °C to 50 °C (32 °F to 122 °F)
- Storage Temperature (Without Battery)
- -20 °C to 60 °C (-4 °F to 140 °F)
- Operating Humidity
- 10% to 90% RH non-condensing at 30 °C (86 °F)
- Operating Altitude
- 2000 meters above mean sea level
- Storage Altitude
- 12,000 meters above mean sea level
- IP Rating
- IP 54 per IEC 60529
- Drop Test
- 3 meters
- Vibration And Shock
- IEC 68-2-6 2.5 g, 10 to 200 Hz
- Compliance
- EN/IEC 61010-1: 2001
- Laser Safety
- FDA and EN 60825-1 Class II
Standards & Compliance
- HS Code
- 9025.19
