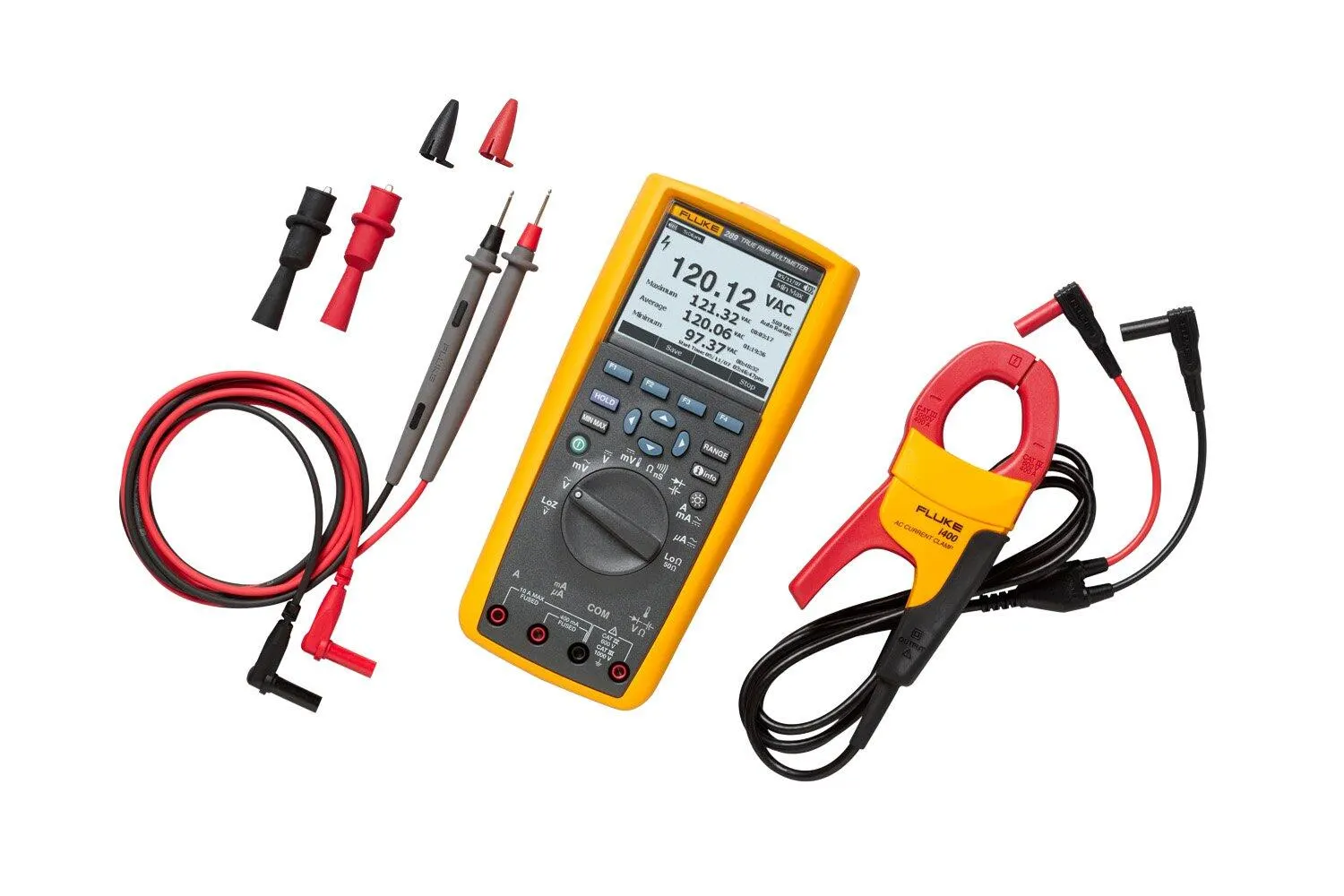

Fluke 289 IMSK Industrial Multimeter Service Kit

The Fluke 289/ i400 AC Current Clamp Combo Kit is an industrial multimeter service kit. Together, they help solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment.

Manufacturer part number (MPN)

3449156 Brand: Fluke Category: Tools DC volts Range / resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V DC volts Basic accuracy: 0.025% AC volts Range / resolution: 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V AC volts Basic accuracy: 0.4% (True-RMS) DC current Range / resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A DC current Basic accuracy: 0.05% AC current Range / resolution: 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A AC current Basic accuracy: 0.6% (True-RMS) Temperature (excluding probe) Range / resolution: -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) Temperature (excluding probe) Basic accuracy: 1.0% Resistance Range / resolution: 50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ Resistance Basic accuracy: 0.05% Capacitance Range / resolution: 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF Capacitance Basic accuracy: 1.0% Frequency Range / resolution: 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz Frequency Basic accuracy: 0.005% Connectivity: Optional infrared connector via Fluke ir3000 FC Maximum voltage between any terminal and earth ground: 1000 V Battery type: 6 AA alkaline batteries, NEDA 15A IECLR6 Battery life: 100 hours minimum, 200 hours in logging mode Temperature Operating: -20°C to 55°C Temperature Storage: -40°C to 60°C Relative humidity: 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) Electromagnetic compatibility: EMC EN61326–1 Vibration: Random vibration per MIL-PRF-28800F Class 2 Shock: 1-meter drop per IEC/EN 61010–1 3rd Edition Size (H x W x L): 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) Weight: 870.9 g (28 oz) Multiple on screen displays: Yes True-RMS AC bandwidth: 100 kHz dBV/dBm: Yes DC mV resolution: 1 μV Megohm range: Up to 500 MΩ Conductance: 50.00 nS Continuity beeper: Yes Battery/fuse access: Yes/Yes Elapse time clock: Yes Time of day clock: Yes Min-max-avg: Yes Duty cycle: Yes Pulse width: Yes Isolated optical interface: Yes Auto/touch hold: Yes Reading memory: Yes Log to PC: Yes Interval/event logging: Yes Logging memory: Up to 15,000 readings Nominal current range: 400 A Continuous current range: 1 A - 400 A Maximum non-destructive current: 1000 A Lowest measurable current: 1 A Basic accuracy: 2% + 0.06 A Useable frequency: 5 Hz - 20 kHz Output level(s): 1 mA/A Safety: CAT IV 600 V, CAT III, 1000 V Maximum voltage: 1000 V AC rms from earth to ground, in compliance with EN61010 Warranty: 1 year Maximum conductor diameter: 32 mm (1.25 in) Maximum conductor size (busbar): 750 MCM Output cable length: 1.5 m (59 in) Shrouded banana plugs: Yes

HS Code

9030.33

• OEM-URL https://www.fluke.com/en-us/product/electrical-testing/digital-multimeters/289-imsk
