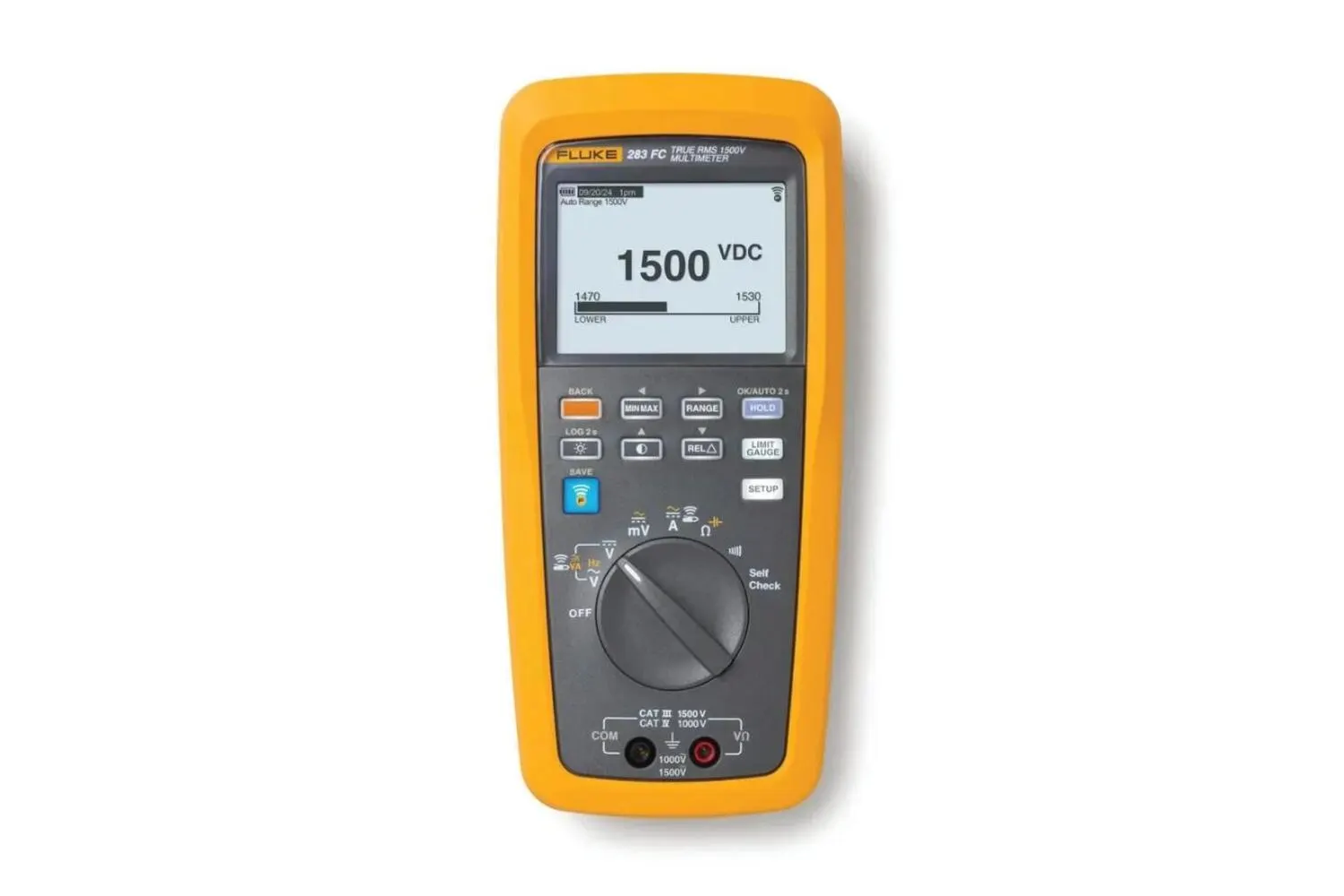

Fluke 283 FC CAT III 1500V Digital Multimeter

The Fluke 283FC CAT III 1500V Digital Multimeter is ideal for high-voltage systems, ensuring safety and accuracy.

Manufacturer part number (MPN)

5593158

Brand

Fluke

Category

Tools

Function Range

Resolution

AC volts[1] 6.000 V

0.001 V

600.0 V 0.1 V

2.0 % + 3 (500 Hz to 1 kHz)

1000 V

1 V

DC volts 6.000 V

0.001 V

1500 V 1 V

0.15 % + 2

AC mV[1] 600.0 mV

0.1 mV

DC mV 600.0 mV

0.1 mV

Continuity 600 Ω

1 Ω

Resistance 600.0 Ω

0.1 Ω

Resistance 6.000 kΩ

0.001 kΩ

Resistance 6.000 MΩ

0.001 MΩ

50.00 MΩ 0.01 MΩ

1.5 % + 4

Capacitance 1000 nF

1 nF

Capacitance 10.00 μF

0.01 μF

9999 μF 1 μF

10 % typical

Frequency 99.99 Hz

0.01 Hz

Frequency 9.999 kHz

0.001 kHz

AC VA (45 Hz ~ 500 Hz)[1] 360.0 VA

0.1 VA

3.600 kVA 0.001 kVA

2 % + 0.01 kVA

36.00 kVA 0.01 kVA

2 % + 0.1 kVA

60.00 kVA 0.01 kVA

2 % + 0.15 kVA

DC VA[1] 360.0 VA

0.1 VA

90.00 kVA 0.01 kVA

2 % + 0.25 kVA

Min-max avg

For DC functions, accuracy is the specified accuracy of the measurement function ± 12 counts for changes longer than 350 ms in duration.

Operating temperature

-10 °C to 60 °C

Storage temperature

-30 °C to +70 °C

Humidity (without condensation)

0 % to 90 %, 10 °C to 30 °C

Electromagnetic compatibility

IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A

Overvoltage category

CAT III 1500 V, CAT IV 1000 V

Agency approvals

ETL (AMER and EMEA), CSA (APAC), CE, UK CA

Drop test

2 meter (6.5 ft) drop test

Ingress protection

IP52

Warranty

Limited lifetime

Counts

6000

Size

22.5 cm x 10.5 cm x 5.7 cm (8.8 in x 4.1 in x 2.2 in)

Weight

0.7 kg (1.5 lb)

Battery life

> 150 hours typical, without backlight (Alkaline, 3 AA)

HS Code

9030.33
