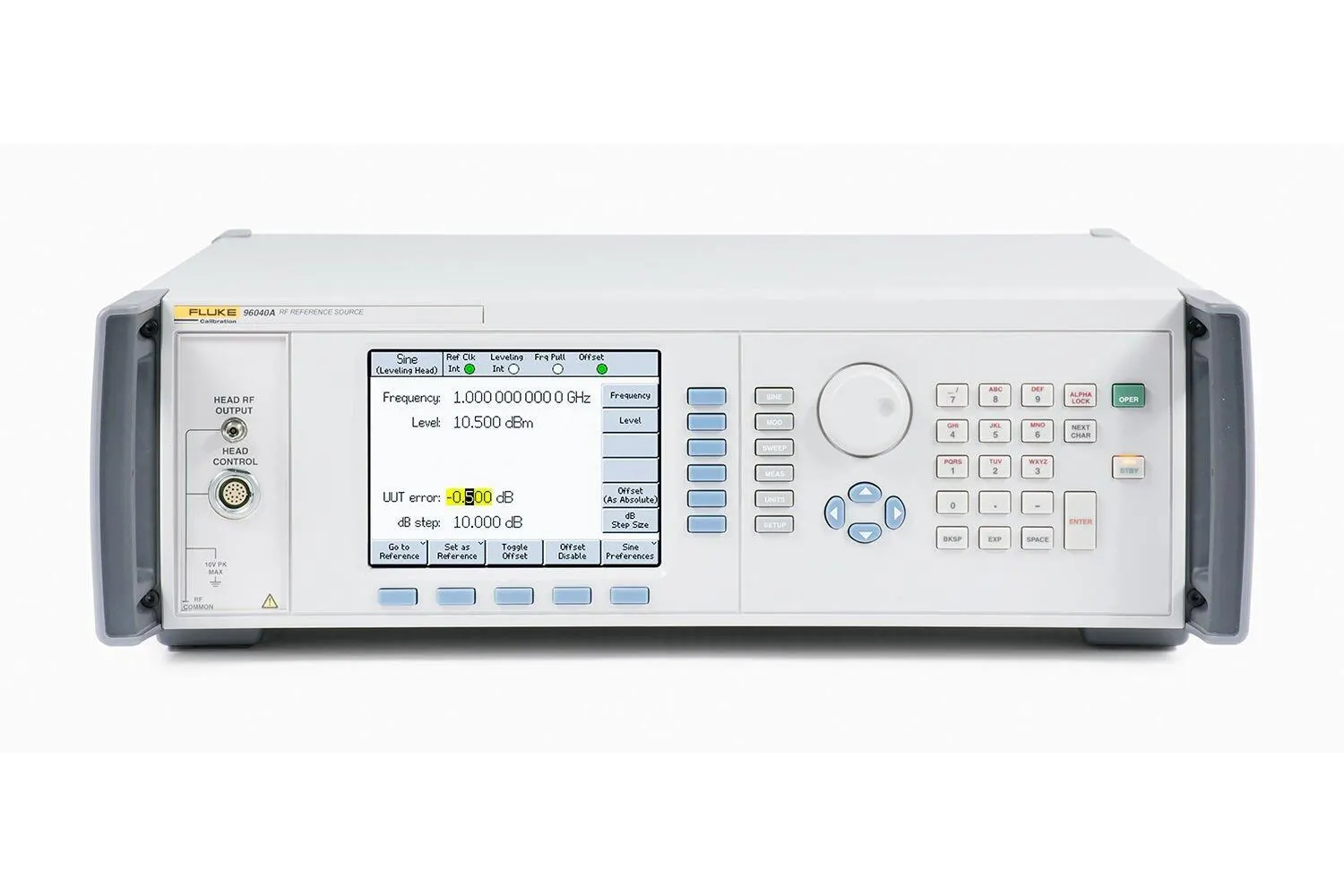

96040A Low Phase Noise Reference Source

The Fluke Calibration 96040A RF Reference Source enables you to simplify your RF calibration system by replacing many of the instruments and accessories that make up your current system.

Manufacturer part number (MPN)

4489605

Brand

Fluke

Category

Tools

Frequency specifications

Level specifications (50 Ω output, see extended specifications for 75 Ω)

Range 1 mHz to 4 GHz

-130 to +24 dBm to 125 MHz, 14 dBm at 4 GHz (leveled)

Resolution 10 µHz

0.001 dB

Accuracy ± 0.05 ppm ± 5 µHz

Down to -48 dBm: ± 0.03 dB to 100 kHz, ± 0.05 dB to 128 MHz, ± 0.3 dB at 4 GHz 10 MHz to 128 MHz: ± 0.05 dB to -48 dBm, ± 0.1 dB to -84 dBm , ± 0.7 dB at -130 dBm

VSWR

≤ 100 MHz: ≤ 1.05, ≤ 2 GHz: ≤ 1.1, 2 GHz to 4 GHz: ≤ 1.0 + 0.05 xf (GHz)

Harmonics and spurious

–60 dBc harmonics, –78 dBc spurious to 1 GHz

Phase noise at 1 GHz

–144 dBc/Hz, typical, at 10 kHz to 100 kHz offset

Modulation

AM, FM, PM, internal and external. Frequency pull and external leveling

Frequency sweep

1 mHz to 4 GHz. Linear or Logarithmic. Stop-Start or Center-Span

Frequency counter

Internal 50 MHz frequency counter

Temperature

Operating: 0 °C to 50 °C, 23 °C ± 5 °C for specified performance; Storage: -20 °C to +70 °C.

Standard interfaces

IEEE-488.2 (GPIB)

GPIB command emulation

9640A, 9640A-LPN, 9640A-LPNX, HP3335, HP8662A, HP8663A.

Dimensions (HxWxD)

146 mm x 442 mm x 551 mm (5.8 in x 17.4 in x 21.7 in) including handles Industry-standard 19 in (483 mm) rack mounting when fitted with Y9600 rack mounting kit

Weight

18 kg (40 lb)
