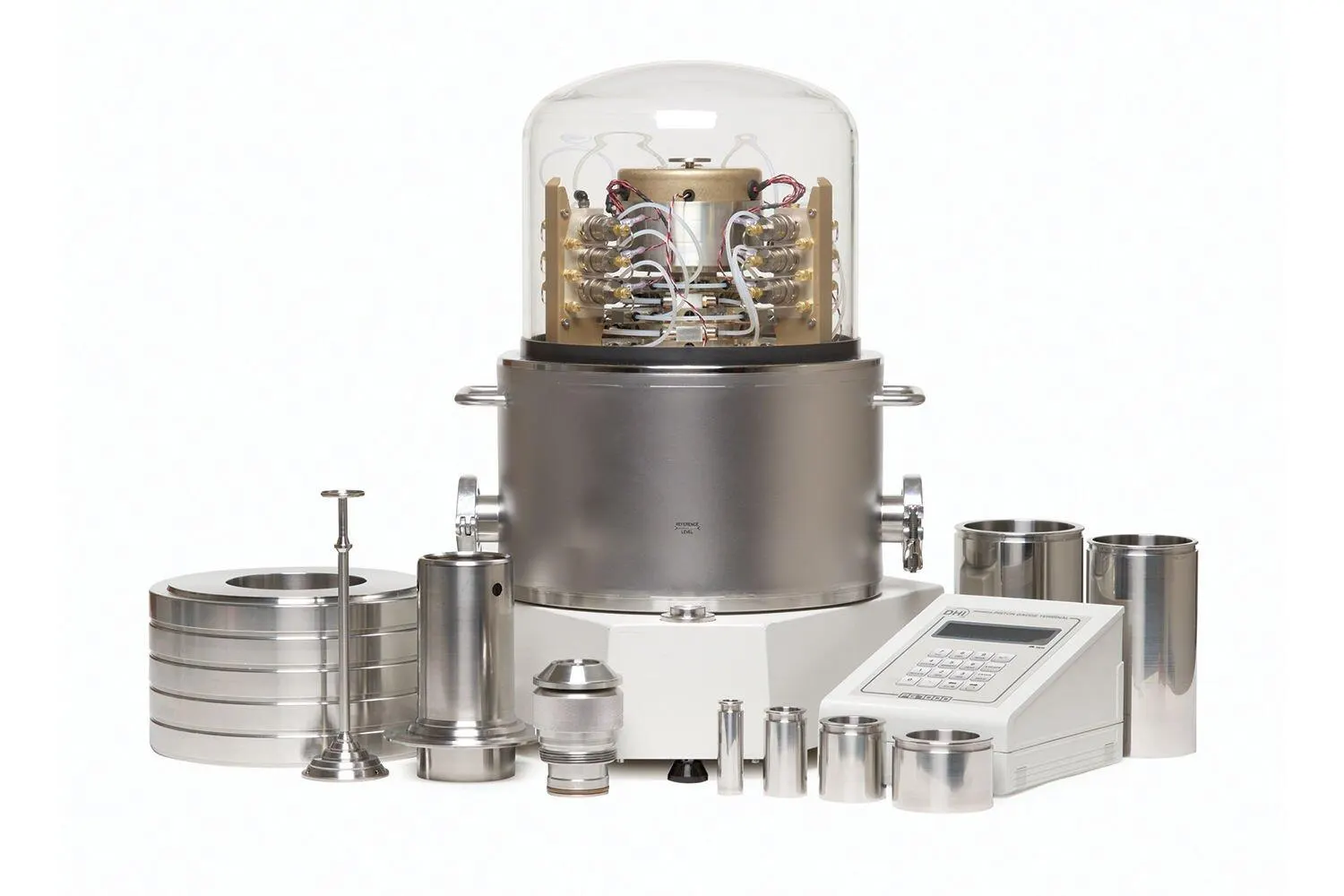

PG7000-AMH - Automated Mass Handler for PG7000 Piston Gauges

Fluke Calibration's PG7000-AMH is an add-on accessory that automates mass handling over the complete piston gauge pressure range.

Manufacturer part number (MPN)

3071416 Brand: Fluke Category: Tools Electrical Power: 100 to 240 VAC, 50 to 60 Hz 30 W max consumption Normal Operating Temperature Range: 15 to 35 °C Weight (Mass Handler Only): AMH-38: 18 kg (40 lb) AMH-100: 12 kg (26 lb) Dimensions: AMH-38: 41 cm H x 37 cm W x 38 cm D (16.3 in. x 14.6 in. x 15 in.) AMH-100: 41 cm H x 41 cm W x 36 cm D (16.3 in. x 16.1 in. x 14.1 in.) Communications Port: RS-232 (COM1), controlled by PG7000 platform Drive Air Supply: 550 kPa (80 psi) "shop air" Drive Air Connection: Quick connect equivalent to Swagelok⪚ QM Series (QM2-B200) AMH-38 Vacuum Chamber: Fittings: (2) KF40 for pump and vacuum gauge upgrade Typical Residual Vacuum: < 10 mPa (0.08 mTorr) with 70 l/s turbo pump Higher pressure with other pumps Mass Changing Time: < 15 sec CE Conformance: Available, must be specified Fits PG7000 Platforms: 7601, 7607 minimum mass (piston and bell): 0.7 kg (1 kg w/ tungsten carbide 10 kPa/kg) Maximum mass load: 38 kg, 25 kg or 13 kg minimum automated increment: 100 g (373 increments), trim masses to 0.01 g may be loaded manually Mass set composition: Piston 0.2 kg (10 kPa/kg t-c 0.5 kg) Bell, tray, lifter assembly 0.5 kg (6) cylindrical binary masses of 0.1, 0.2, 0.4, 0.8, 1.6, 3.2 kg (5, 3 or 1) main mass disks of 6.2 kg each (1) trim mass set of 50 g to 0.01 g* Mass uncertainty: ± 5 ppm or 1 mg
