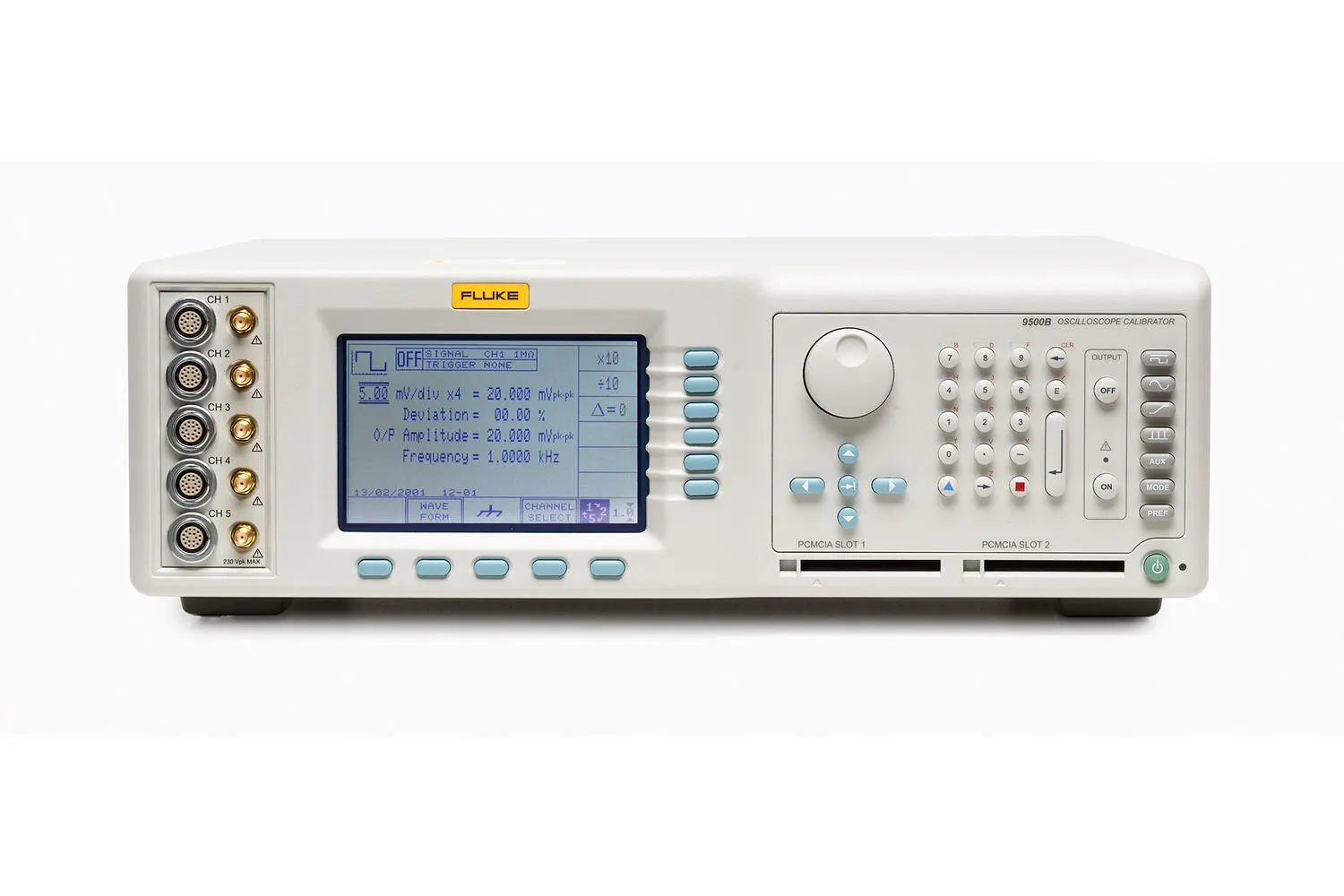

9500B Oscilloscope Calibrator

9500B oscilloscope calibrator from Fluke Calibration is fully automated, accurate & can deliver 6.0 GHz leveled its waves & pulse edges of only 70 ps.

Manufacturer part number (MPN)

1623977

Brand

Fluke

Category

Tools

Amplitude

± 1 mV to ± 200V into 1M Ω ± 1 mV to ± 5V into 50 Ω

Accuracy

± (0.025% + 25 µV)

Ranging

1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Deviation

± 11.2%

Rise/Fall Time

=100V <200 ns

Aberrations

<2% peak for first 500 ns

Frequency

Range: 10 Hz to 100 kHz Accuracy: ± 0.25 ppm Ranging: 1, 2, 5 or 1, 2, 2.5, 4, 5 or continuous

Mk/Sp Ratio

1:9

Styles

Square/Its, Pulse or Narrow Triangle

Square/Its

Period Square: 10 ns to 55s Period Its: 450 ps to 10ns 9500/600 = 1ns to 10ns 9560 = 180ps to 10ns

Pulse

Period: 1 µs to 55s Rise/Fall Time: 2.5% of period

Timing Accuracy

Normal: ± 0.25 ppm

Timing Jitter

10 ps pk-pk

Sub-Division

Every 10th marker can be set to higher amplitude for periods ± 1 µs for all waveshapes

Amplitude (Leveled Its into 50Ù)

0.1 Hz - 550 MHz 4.44 mV to 5.560V pk-pk 550 MHz - 2.5 GHz 4.44 mV to 3.336V pk-pk 2.5 GHz - 3.2 GHz 4.44 mV to 2.224V pk-pk 3.2 GHz - 6.4 GHz 25mV to 2 V pk-pk Accuracy: ± 1.5% at 50 kHz

Flatness (Leveled Its relative to 50kHz)

0.1 Hz - 300 MHz ± 2% 300 MHz - 550 MHz ± 3% 550 MHz - 1.1 GHz ± 4% 1.1 GHz - 3.2 GHz ± 5% 3 GHz - 6.0 GHz ± 5%

Its Purity

2nd Harmonic <-35 dBc 3rd Harmonic <-40 dBc All Other Spurious Signals <-40 dBc (typical)

Resistance Measurement (not available on 9550)

Range: 10Ω - 150Ω and 50 kΩ - 12 MΩ Accuracy: 10 - 40 (W) ± 0.5% 40 - 90 ± 0.1% 90 - 150 ± 0.5% 50k - 800k ± 0.5% 800k - 1.2M ± 0.1% 1.2M - 12M ± 0.5%

Pattern

White, gray or black

Sync Polarity

Positive or negative

Standards

625-line 50 Hz or 525-line 60 Hz

Waveforms

1V pk-pk sym. triangle

Ramp Time

1 ms to 1s

Polarity

Positive or negative

Duration

0.2s to 100s

Trigger

Manual

Unadjusted Skew

± 25 ps ch to ch

Adjusted Skew

± 5 ps ch to ch

Frequency Range

10 Hz to 100 MHz

Output Leakage

Open Circuit: ± 50 pA Short Circuit: ± 15 µV

Signal Routing

Rear i/p to any Active Head

Maximum Input

Voltage: ± 40V pk-pk Current: ± 400 mA pk-pk

Rate

User Selectable: f (up to 120 MHz), f/10 or f/100 Free Run: 100 Hz

Reference Frequency Input

Frequency Range: 1 MHz to 20 MHz in 1 MHz steps Level: 90 mV to 1V pk-pk typ. Lock Range: ± 50 ppm

Reference Frequency Output

Frequency: 1 MHz or 10 MHz Level: Into 50W: 1V pk-pk (typical)

Temperature

Operating: 5°C to 40°C Storage: 0°C to 50°C

Humidity (non-condensing)

Operating: <90% over 5°C to 30°C <75% over 30°C to 40°C Storage: <95% over 0°C to 50°C

Power, battery life

Voltage: 95V to 132V rms or 209V to 264V rms Frequency: 48 Hz to 63 Hz Consumption: 400 VA

Warm up Time

20 minutes

Calibration Documentation

17025 accredited report of calibration included

Dimensions

Model 9500B Mainframe: H x W x D 133 x 427 x 440 mm (5.24 x 16.8 x 17.3 ins) Weight 12 kg (27 lbs) approx. Modules 9510, 9530, 9550: H x W x D 65 x 31 x 140 mm (2.56 x 1.22 x 5.51 ins) Weight: 0.45 kg (1-lb) approx.

Safety

Designed to UL3111 and EN61010-1-1:1993/A2:1995. CE Marked EMC (including options) Emissions: EN55011/22 Immunity: EN50082-1:1992 FCC Rules part 15 sub-part J class B

Warranty Period

Mainframe: 1-year Active Heads: 3-years

HS Code

9030.20
