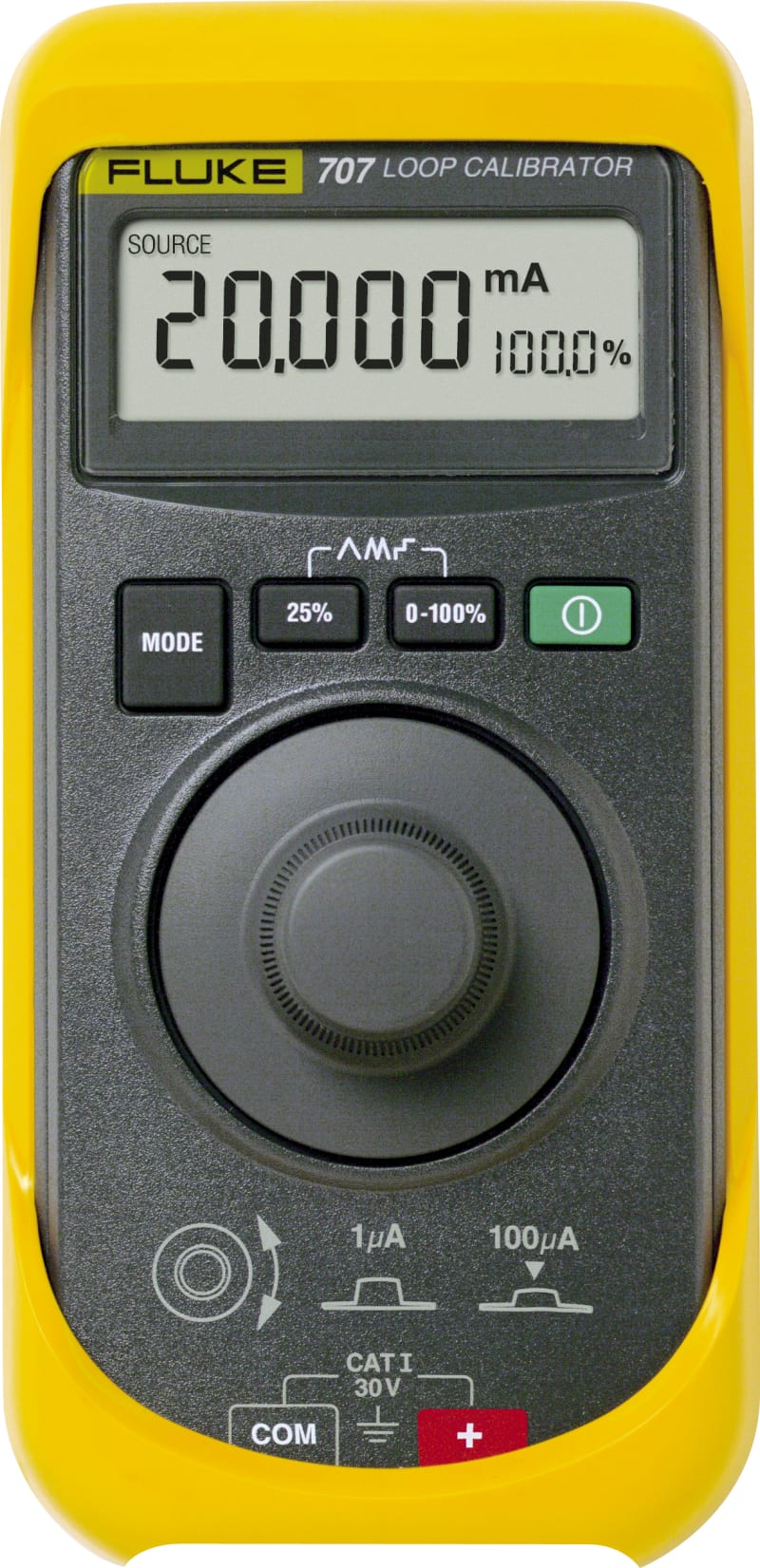

Fluke 707 Loop Calibrator

Fluke 707 is a milliamp loop calibrator sourcing and measuring 0-24 mA at 0.001 mA resolution with 0.015% accuracy, and measuring 0-28 V DC. Provides 24 V loop power, drives 1200 Ohm at 20 mA and includes a 250 Ohm HART resistor for compatibility with HART transmitters. Used by instrumentation technicians for 4-20 mA loop commissioning, transmitter simulation and control-valve checks in process plants.

Manufacturer part number (MPN)

14579

EAN / GTIN

0095969107150

Sales unit

pcs

Manufacturer model

Fluke 707

Current measurement

Range 0 to 24 mA

Resolution

0.001 mA

Accuracy

0.015% Rdg + 2 LSD

Current sourcing

Range 0 to 20 mA or 4 to 20 mA

Drive capability

1200 Ω 950 Ω at 20 mA in HART mode

Current simulation

Range 0 to 20 mA or 4 to 20 mA

Ext. loop voltage requirement

12-30 V

Loop power

While measuring mA, 24 V

Voltage measurement

Range 0 to 28 V DC

Operating temperature

-10°C to 55°C

Storage temperature

-30°C to 60°C

Humidity (without condensation)

0 to 90% (0°C to 35°C); 0 to 70% (35°C to 55°C)

Temperature coefficient

-10°C to 18°C, 28°C to 55°C, ±.005% of range per °C

Safety

CSA C22.2 No. 1010.1:1992

EMC

EN50082-1:1992 and EN55022:1994 Class B

HS Code

9031.80
