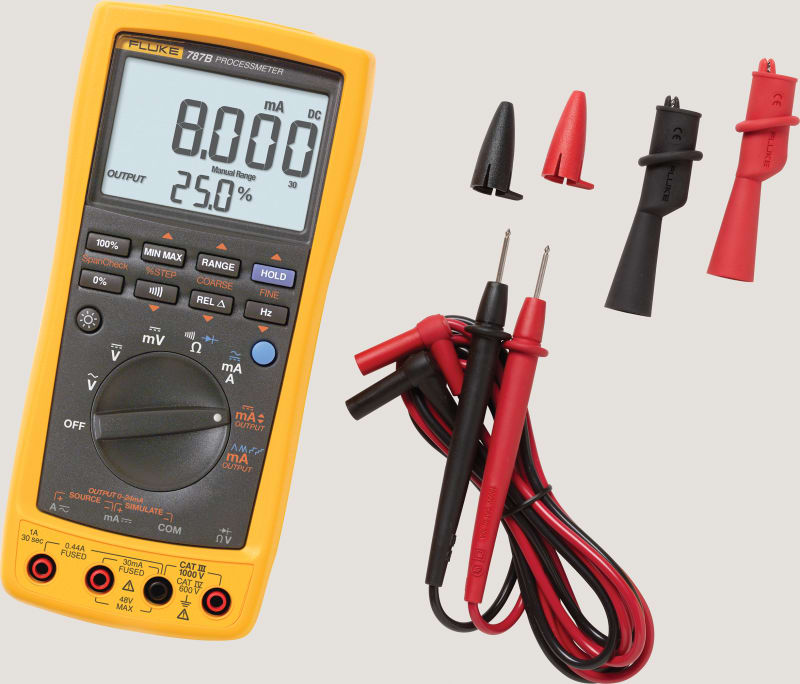

Fluke 787B

Fluke 787B is listed under Measurement & Inspection Tools / Test & Measurement. Sales unit: pcs; mA dc: 30.000 mA .05% + 2; A dc: 1.000 A (0.440 A continuous) 0.2% + 2; A ac: 1.000 A (0.440 A continuous) 1% + 2; Frequency (0.5 Hz to 20 kHz): 199.99 Hz, 1999.9 Hz, 19.999 kHz .005% + 1; Diode test: 2.000 V (shows diode voltage drop) 2% + 1.

Manufacturer part number (MPN)

787B

EAN / GTIN

0095969819930

Sales unit

pcs

Manufacturer model

Fluke 787B

V dc

400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.1% + 1

V ac (true-rms)

400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V 0.7% + 2

mA dc

30.000 mA .05% + 2

A dc

1.000 A (0.440 A continuous) 0.2% + 2

A ac

1.000 A (0.440 A continuous) 1% + 2

Resistance

400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M 0.2% + 1

Frequency (0.5 Hz to 20 kHz)

199.99 Hz, 1999.9 Hz, 19.999 kHz .005% + 1

Diode test

2.000 V (shows diode voltage drop) 2% + 1

Continuity

Beeps for resistance

DC current output (Internal battery operation)

0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA 24 V compliance or, 1,200 ohms, @ 20 mA 0.05%

Current adjustment modes

Manual: Coarse, Fine, 25% and 100% step

Storage temperature

-40 °C to 60 °C

Operating temperature

-20 °C to 55 °C

Temperature coefficient

0.05 x (specified accuracy) per °C (for temperatures 28 °C)

Relative humidity

95% up to 30 °C; 75% up to 40 °C; 45% up to 50 °C; 35% up to 55 °C
