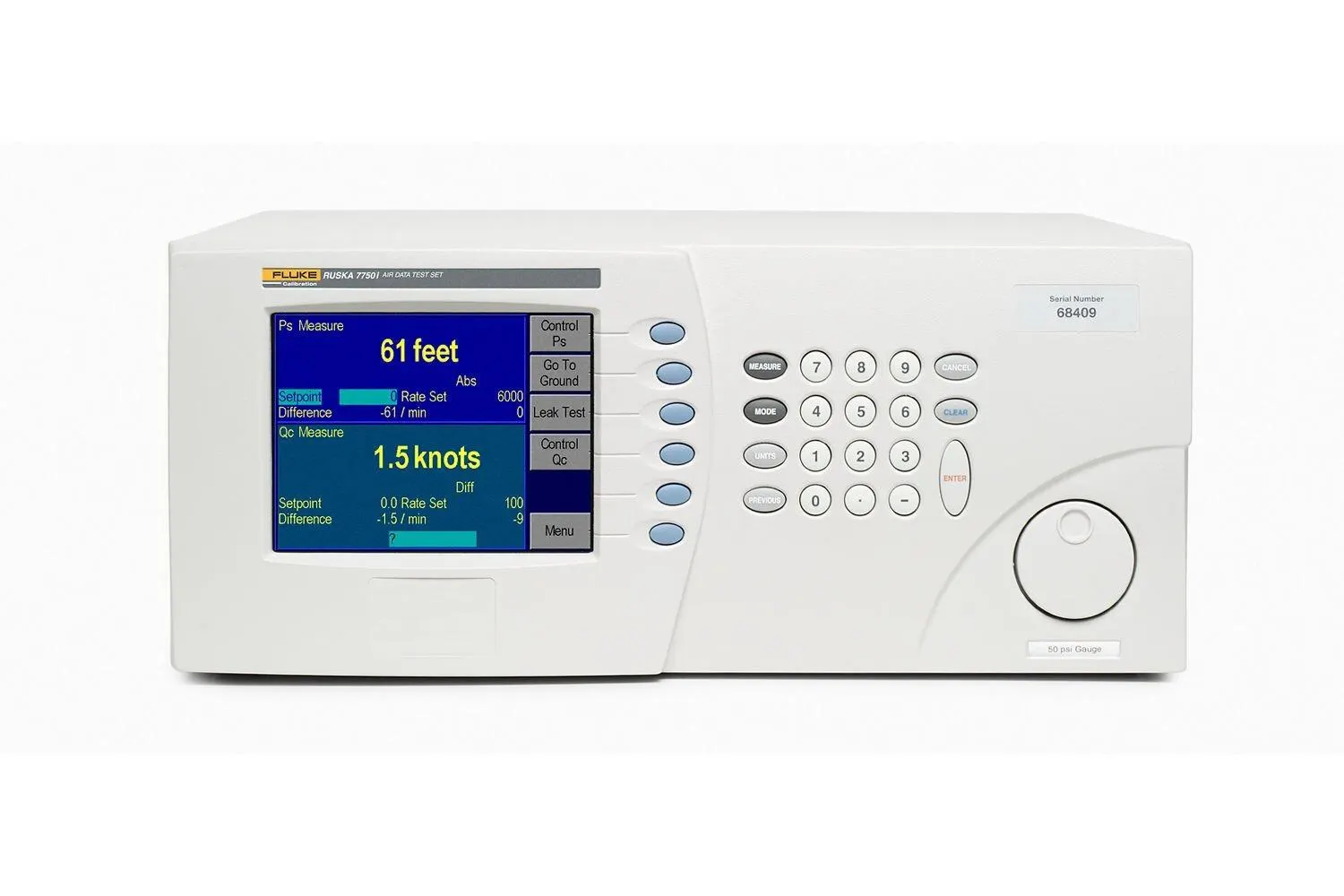

7750I Air Data Test Set

The Fluke Calibration 7750i ADTS offers high precision and stability for calibrating altimeters, airspeed indicators, and air data computers in ATE systems.

Manufacturer part number (MPN)

3895155 Brand: Fluke Category: Tools Automatic Go to Ground: Upon selecting the go to ground command, the 7750i safely controls the pressure to the current, local barometric pressure. The user can then disconnect the device under test (DUT) without exposing sensitive instruments to a potential pressure transient or shock. Leak Test Mode: A separate mode is provided for performing leak checks prior to beginning an actual calibration. Protecting the Device Under Test: In order to protect the DUT, the operator can program high and low limit settings for:AltitudeAirspeedRate of climbMachNegative QcARINC 565 envelope Avionics and Pressure Units: The Model 7750i displays the common avionics units including feet and meters for altitude, calibrated airspeed in knots, km/hr, and Mach with corresponding rate displays for each unit per minute. It can also display pressure units. Stability: Absolute Over 3 months: 0.0019% RDG/3 months Over 1 year: 0.0075% RDG/year Differential Over 3 months: 0.0019% RDG/3 months Over 1 year: 0.0075% RDG/year Zeroing vacuum sensor: Absolute ±10 mtorr at 100 mtorr, ±10% RDG at 100 mtorr Differential N/A Control stability: Absolute ±10 mTorr (1.33 Pa) @ 100 mTorr Differential 0.001% FS Control low limit: Absolute 0.3 in Hg abs. (10 mbar a) Differential 0 in Hg in - Qc mode/0.3 inHg abs. in Pt mode Requires vacuum pump to control 0 psig, or the vent mode can be used to obtain 0 psig. Zero Drift: Absolute <0.004% FS / 24 hr Differential <0.004% FS / 24 hr Rate of climb: Absolute 0 to 1,829 m/min (0 to 6,000 ft/min) Differential N/A Rate of climb tolerance: Absolute 1% of commanded rate for altitudes up to 15,240 m (50,000 ft) 5% of commanded rate for altitudes from 15,240 M( 50,000ft) to 21,336m (70,000 ft) Differential N/A Standard load volume: Absolute 5 to 60 in (80 to 1,000 cc’s) Differential 5 to 60 in (80 to 1,000 cc’s) Mach: Absolute N/A Differential 0 to 10.000 Limits can be set to prevent excessive mach. 7750i-802: Ranges Ps: 32 Qc: 68 7750i-804: Ranges Ps: 32 Qc: 32 7750i-805: Ranges Ps: 40 Qc: 32 Display: TFT Active Matrix Color, 6.4 inch Display Resolution: 1 ft, 0.1 m, 0.1 kn/hr, 0.00001 Mach Units: Altitude: ft, meters Airspeed: knots, km/hr, Mach Pressure: Engineering Units: inHg at 0°C and 60°F, kPa, bar, psi, inH2O at 4 °C, and 25 °C, kg/cm2, mmHg at 0°C, cmHg at 0°C, and cmH2O at 4°C & four user defined linear units of measure. Aeronautical Units: feet, meters, knots, km/h, Mach Total Uncertainty Expression: 2 Sigma Ps/32 inHg FS: RSS of 0.0091% of Reading and 0.0008 inHg Ps/40 inHg FS: RSS of 0.0091% of Reading and 0.0009 inHg Qc/32 inHg FS: RSS of 0.0091% of Reading and 0.0007 inHg Qc/68 inHg FS: RSS of 0.0091% of Reading and 0.0012 inHg Options: Lines and fittings kit (supply and test lines) part number 7750-104Vacuum pump_85 liter/minute capacity with auto-vent valveFilter and mufflerNational Instruments LabVIEW™ driverISO 17025 accredited calibration certificate Electrical Power: 90 to 260 VAC, 50 to 400 Hz, 150W max Temperature: Warmup time: 24 hours Operating temperature: 18°C to 36°C (64 to 97 F) Storage temperature: -20°C to 70°C (-4°F to 158°F) Humidity: Operating humidity: 20% to 75% RH, non-condensing Storage humidity: 5% to 95%, non-condensing Pressure Medium: High purity nitrogen or dry, clean air Calibration: One year interval is recommended. Use of primary standard such as the Model 2468 Pitot Static Gas Piston Gauge is recommended. digital Interface: IEEE-488.2 RS232 Model 6610 emulation mode SCPI syntax Pneumatic Connections: 1/4 in FNPT on all ports. Adapters provided for AN6 and AN4 Weight and Dimensions (h x w x d): Weight: 45 lb (20 kg) Size: 7 in x 16.5 in x 19 in (17.8 cm x 41.9 cm x 48.3 cm) Supply Pressure: 60 psi +/- 5 psi (4 bar +/- 0.5 bar) Supply Vacuum: minimum 50 liters per minute with auto-vent valve. Ultimate vacuum less than 1 mtorr
