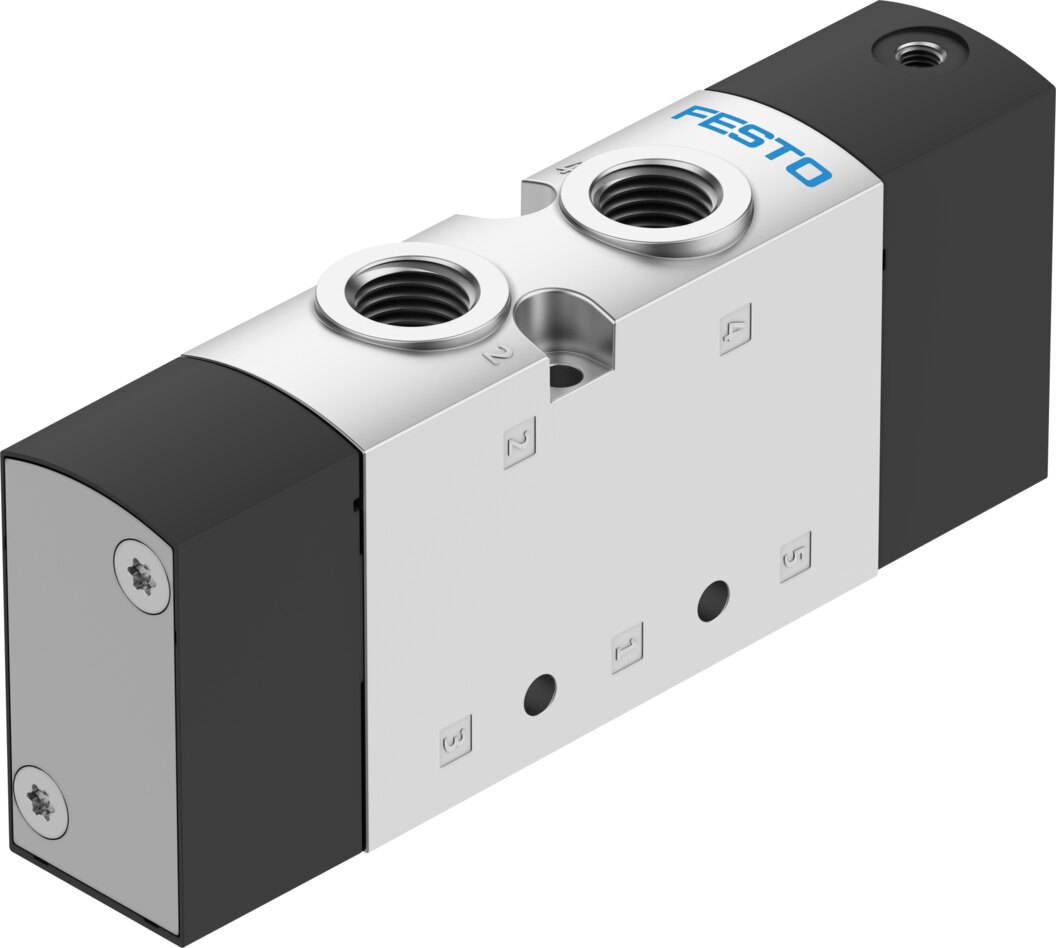

Festo VUWS-L25-M52-A-G14 Pneumatic valve

Festo VUWS-L25-M52-A-G14 — Pneumatic valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure 0.25. 1 MPa (2.5. 10 bar); nominal size 6.9 mm.

Manufacturer part number (MPN)

575507

Type code

VUWS-L25-M52-A-G14

EAN / GTIN

4052568260644

Product category

Universal directional control valves

Valve function

5/2-way, single solenoid

Type of actuation

Pneumatic

Valve size

26.5 mm

Standard nominal flow rate (standardised to DIN 1343)

1300 l/min

pneumatic working port

G1/4

Operating pressure

0.25 ... 1 MPa (2.5 ... 10 bar)

Design

Piston gate valve

Type of reset

Pneumatic spring

Approval

c UL us - Recognised (Oil)

Nominal size

6.9 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

None

Type of piloting

Direct

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991048

lap

Overlap

Pilot pressure

0.25 ... 1 MPa (2.5 ... 10 bar)

Switching time off

32 ms

Switching time on

15 ms

Explosion protection

The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 6 according to ISO 14644-1

Media temperature

-10 ... 60 °C

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-10 ... 60 °C

Product weight

303 g

Type of mounting

On manifold rail, with through-hole

Breather connection

Not ducted

Pilot air port 14

M5

Pneumatic connection, port 1

G1/4

Pneumatic connection, port 2

G1/4

Pneumatic connection, port 3

G1/4

Pneumatic connection, port 4

G1/4

Pneumatic connection, port 5

G1/4

Material seals

HNBR, NBR

Material housing

painted

Material piston slide

Wrought aluminium alloy

Material screws

Galvanised steel

Product type

Pneumatic Valves Air-Controlled

Product group

Pneumatics

Thread

G1/4"

Activation

Air

Return

Spring

Carbon footprint (EPD)

6.5694 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568260644
• MPN 575507
