Festo

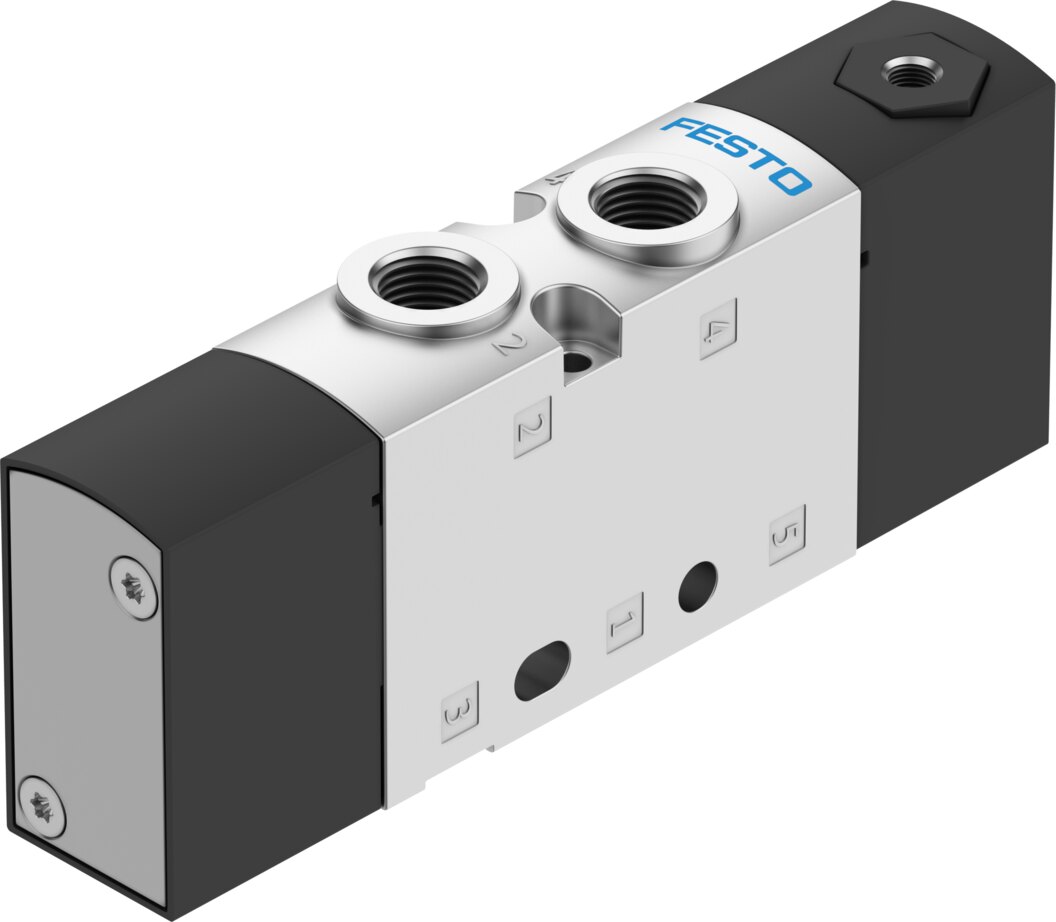

Festo VUWS-L20-M52-M-G18 Pneumatic valve
Part number575681EAN / GTIN4052568104146HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUWS-L20-M52-M-G18 — Pneumatic valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 5.7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575681
- Type code
- VUWS-L20-M52-M-G18
- EAN / GTIN
- 4052568104146
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Pneumatic
- Valve size
- 21 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 700 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Nominal size
- 5.7 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of piloting
- Direct
- Pilot air supply
- Internal
- Flow direction
- Reversible
- Symbol
- 00991029
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Switching time off
- 39 ms
- Switching time on
- 7 ms
- Explosion protection
- The information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 160 g
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- HNBR, NBR
- Material housing
- painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Galvanised steel
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- Air
- Return
- Spring
- Carbon footprint (EPD)
- 3.1145 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568104146
- MPN 575681
Product Documentation
Document preview: VUWS-L20-M52-M-G18 — Festo product documentation
More from Festo
Festo
Festo DGST-10-80-Y12A Mini slide
8085169
Festo

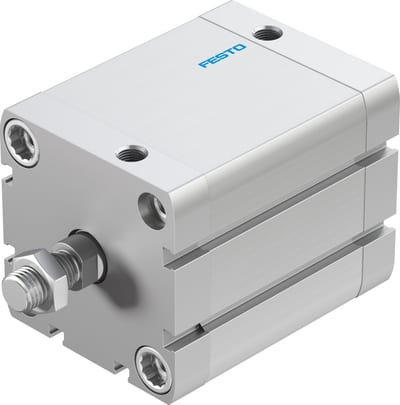

Festo ADN-63-50-A-P-A Compact cylinder
536338
Festo

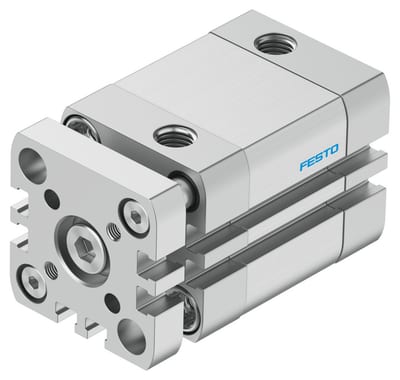

Festo ADNGF-32-20-P-A Compact cylinder
554241
Festo

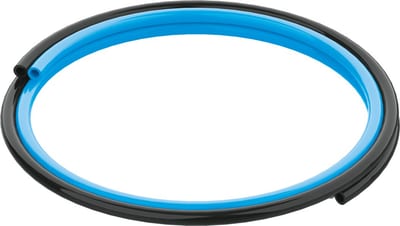

Festo PUN-6X1-DUO-BS DUO tubing
159675
Festo

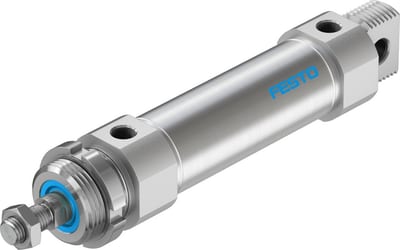

Festo DSNU-40-80-P-A Round cylinder
195993
Festo

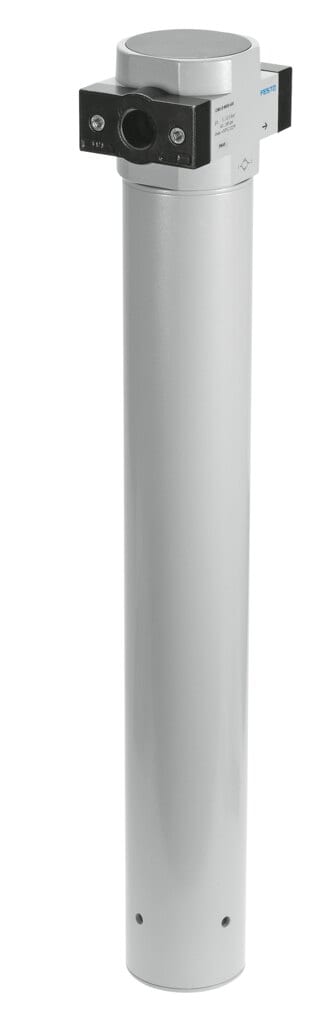

Festo LDM1-3/4-D-MAXI-600 Membrane air dryer
543671
Festo

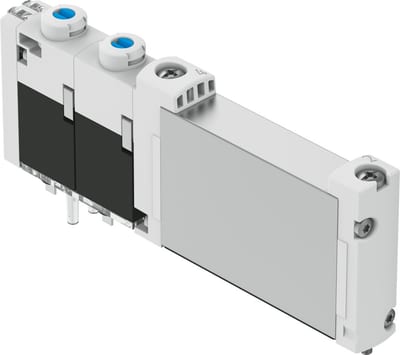

Festo VUVG-B10-T32H-MZT-F-1T1L Solenoid valve
573415
Festo

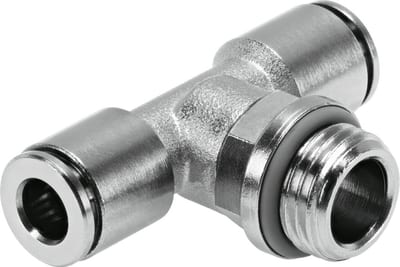

Festo NPQH-T-G38-Q10-P10 Push-in T-fitting
