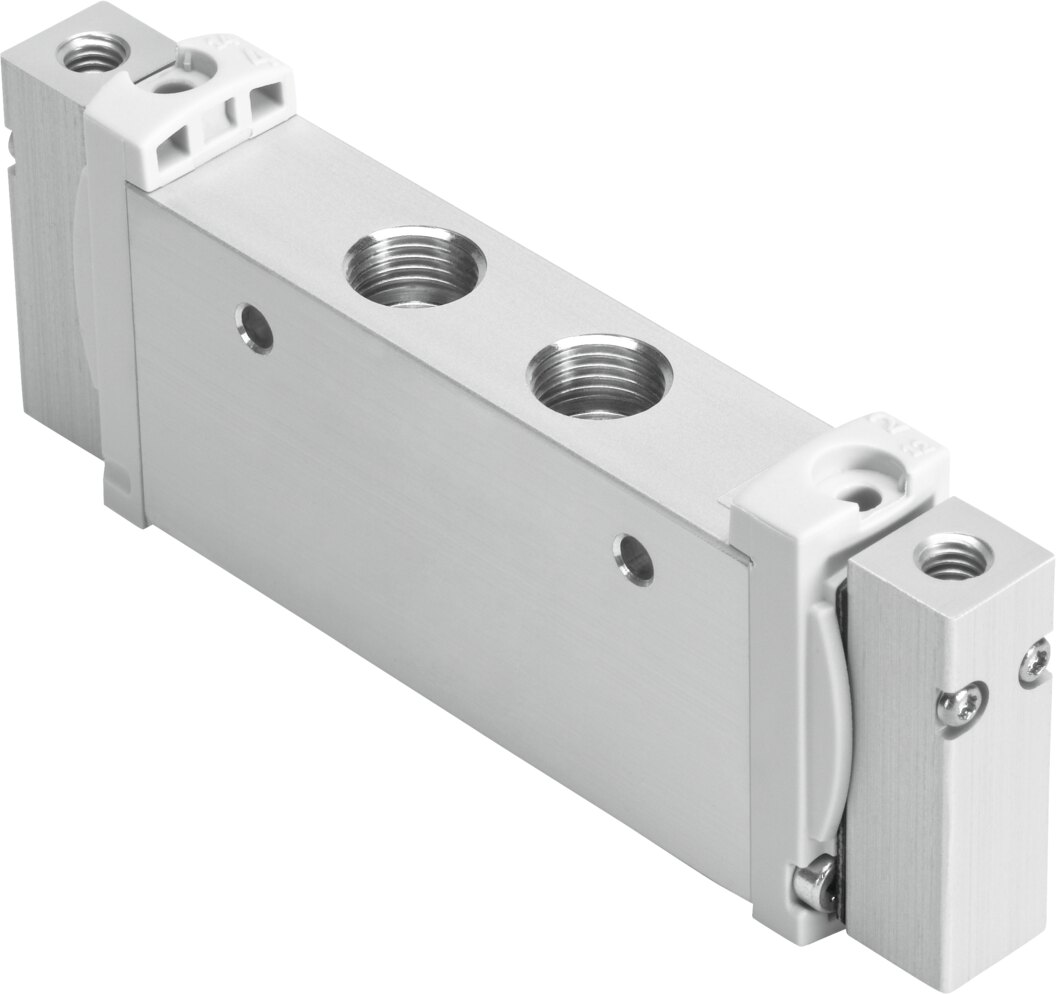

Festo VUWG-L18-B52-G14 Pneumatic valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUWG-L18-B52-G14 — Pneumatic valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure -0.9. 10 bar.
Technical Specifications
- Manufacturer part number (MPN)
- 574271
- Type code
- VUWG-L18-B52-G14
- EAN / GTIN
- 4052568222727
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Pneumatic
- Valve size
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1380 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.9 ... 10 bar
- Design
- Piston gate valve
- Grid dimension
- 19 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00991037
- lap
- Overlap
- Pilot pressure
- 1.5 ... 10 bar
- Suitability for vacuum
- Yes
- Switching time reversal
- 12 ms
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 160 g
- Type of mounting
- On PR rail, with through-hole
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- HNBR, NBR
- Material housing
- anodised
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- Air
- Return
- Air
- Carbon footprint (EPD)
- 3.0756 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568222727
- MPN 574271
