Festo

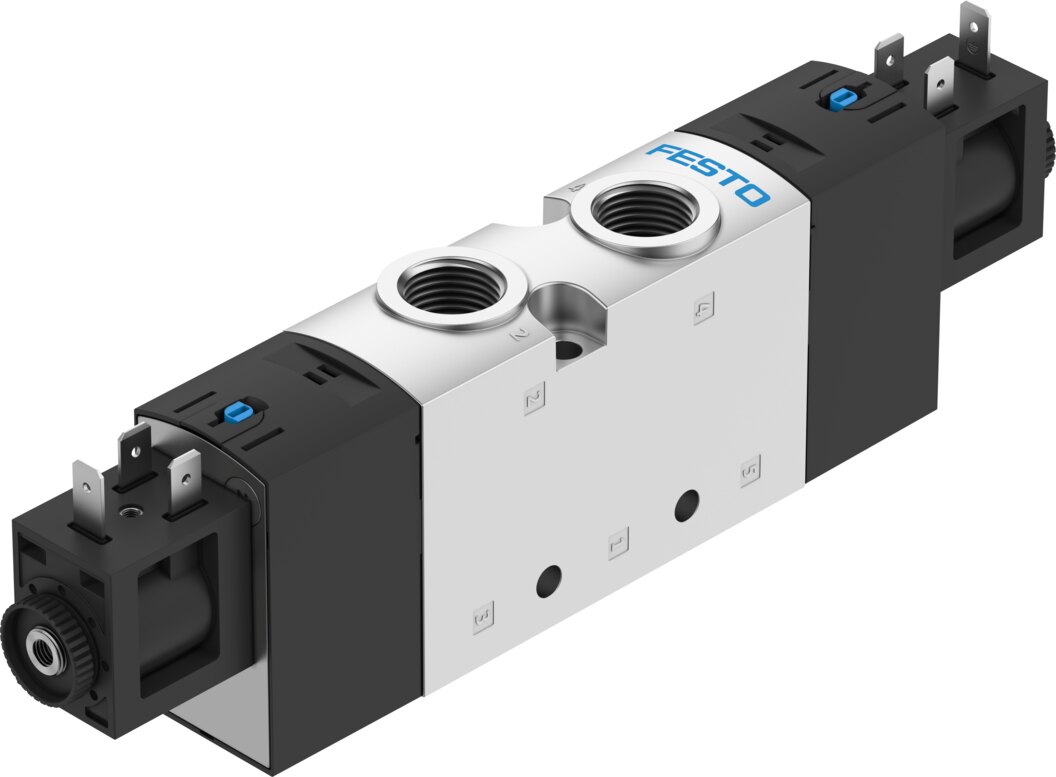

Festo VUVS-L30-B52-ZD-G38-F8-1B2 Solenoid valve
Part number575614EAN / GTIN4052568261511HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L30-B52-ZD-G38-F8-1B2 — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 9.4 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575614
- Type code
- VUVS-L30-B52-ZD-G38-F8-1B2
- EAN / GTIN
- 4052568261511
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 31 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2300 l/min
- pneumatic working port
- G3/8
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- DNVGL-TAA000011J
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 9.4 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991016
- lap
- Overlap
- Pilot pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- b value
- 0.4
- C value
- 9.9 l/sbar
- Switching time reversal
- 13 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse with 1 signal
- 3600 µs
- Characteristic coil data
- 24 V DC: 3.3 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 565 g
- Electrical connection
- Type B, To industry standard (11 mm)
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- HNBR, NBR
- Material housing
- Die-cast aluminium, painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Nickel-plated steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 13.6784 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568261511
- MPN 575614
Product Documentation
Document preview: VUVS-L30-B52-ZD-G38-F8-1B2 — Festo product documentation
More from Festo
Festo
Festo VABM-B10-20E-G38-10 Manifold block
576347
Festo
Festo LFR-3/4-D-O-MIDI Filter regulator
162691
Festo
Festo AEVUZ-63-25-A-P-A Compact cylinder
157289
Festo

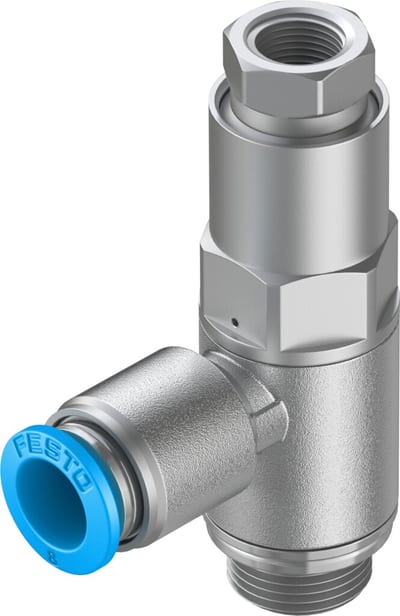

Festo HGL-1/4-QS-8 Piloted check valve
530041
Festo

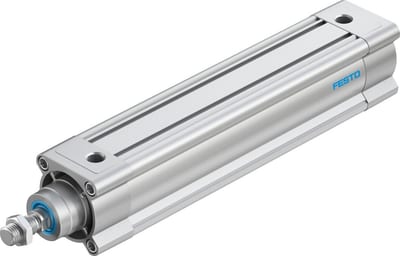

Festo DSBC-63-250-PPSA-N3 ISO cylinder
1383640
Festo

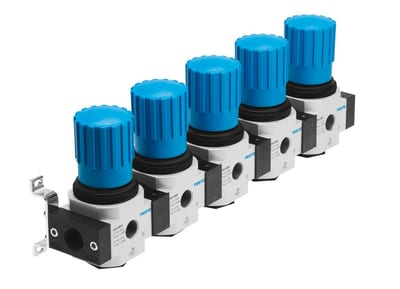

Festo LRB-1/4-D-O-K5-MINI Pressure regulating valve manifold
529002
No image
Festo
Festo PUN-4X0,75-Sw Plastic tubing
4052568035372
Festo

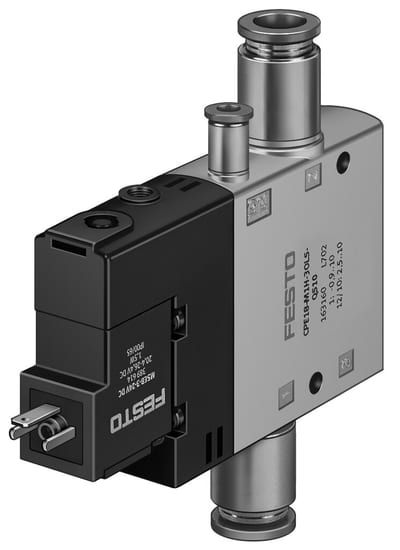

Festo CPE18-M2H-3GLS-QS-10 Solenoid valve
