Festo VUVS-L25-B52-ZD-G14-F8 Solenoid valve
Part number4052568260743Item number10417632EAN / GTIN4052568260743HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L25-B52-ZD-G14-F8 — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure -0.9. 10 bar; nominal size 6.9 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 575517
- Type code
- VUVS-L25-B52-ZD-G14-F8
- EAN / GTIN
- 4052568260743
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 26.5 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1300 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.9 ... 10 bar
- Design
- Piston gate valve
- Approval
- c UL us - Recognised (Oil)
- Certificate issuing authority
- DNVGL-TAA000011J
- Nominal size
- 6.9 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991016
- lap
- Overlap
- Pilot pressure
- 1.5 ... 10 bar
- b value
- 0.4
- C value
- 5.6 l/sbar
- Switching time reversal
- 11 ms
- Max. positive test pulse with 0 signal
- 2000 µs
- Max. negative test pulse with 1 signal
- 3600 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 322 g
- Type of mounting
- On manifold rail, with through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- HNBR, NBR
- Material housing
- Die-cast aluminium, painted
- Material piston slide
- Wrought aluminium alloy
- Material screws
- Galvanised steel
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 8.0621 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568260743
- MPN 575517
Product Documentation
Document preview: VUVS-L25-B52-ZD-G14-F8 — Festo product documentation
More from Festo
Festo
Festo CLR-32-20-R-P-A-B Linear/swivel clamp
543179
Festo
Festo ADVC Short stroke cylinder - 20mm, M5, 5mm, ADVC-20-5-A-P-A
188150
Festo
Festo LFR-1/2-D-DI-MAXI-KG-A Service unit combination
192460
Festo
Festo LFR-3/8-D-MIDI-KE Service unit combination
185761
Festo
Festo ADVU-80-20-A-P-A Compact cylinder
156656
Festo
Festo LRS-1/4-D-7-I-MIDI Pressure regulator
194631
Festo

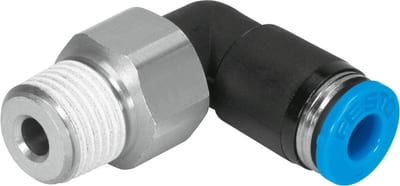

Festo QSRL-1/8-4 Push-in L-fitting, rotatable
153410
Festo

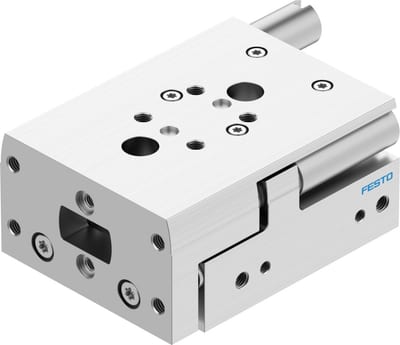

Festo DGST-16-30-PA Mini slide
