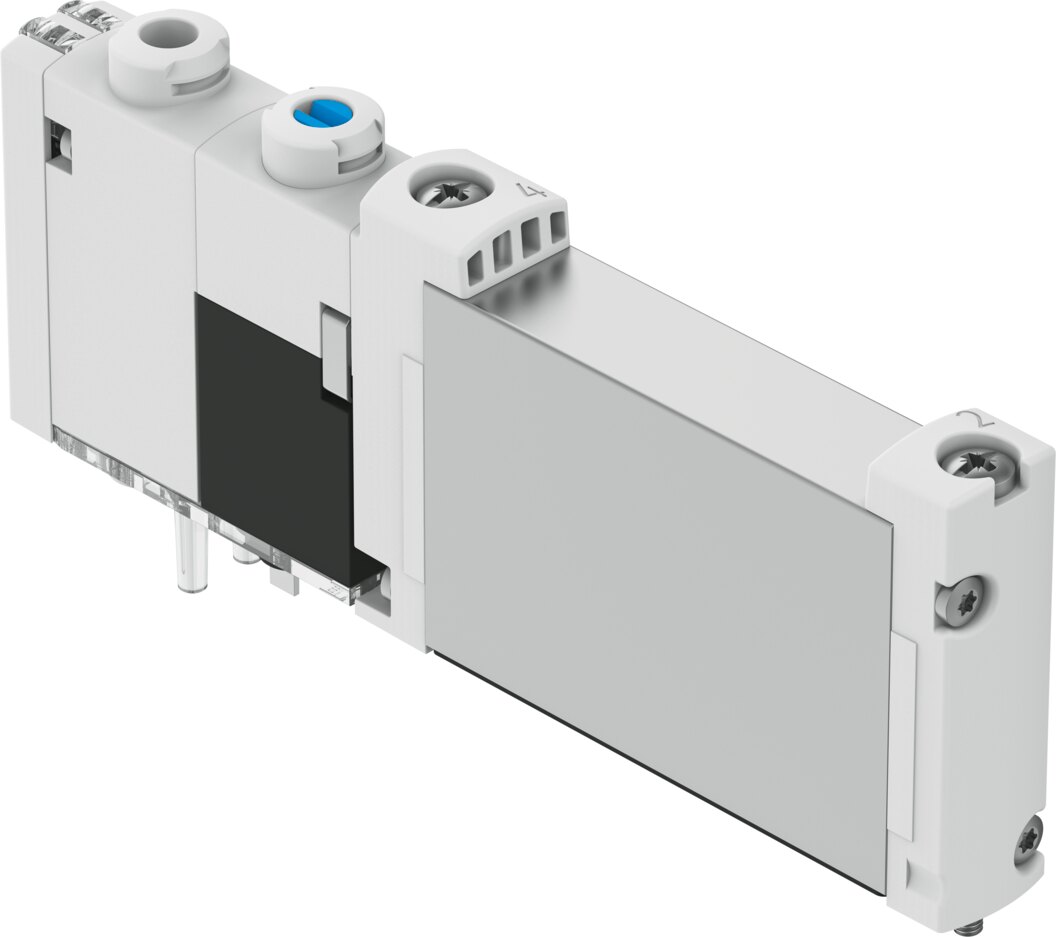

Festo VUVG-B10-M52-MZT-F-1T1L Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-B10-M52-MZT-F-1T1L — Solenoid valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure -0.09. 0.8 MPa (-0.9. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 573417
- Type code
- VUVG-B10-M52-MZT-F-1T1L
- EAN / GTIN
- 4052568102678
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Valve size
- 10 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 220 l/min
- pneumatic working port
- Flange
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 0.8 MPa (-0.9 ... 8 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65, IP67
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991025
- lap
- Overlap
- Signal status display
- LED
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Max. switching frequency
- 3 Hz
- Switching time off
- 30 ms
- Switching time on
- 12 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse with 1 signal
- 3000 µs
- Characteristic coil data
- 22 V DC: 1.0 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 53 g
- Electrical connection
- Via E-box
- Type of mounting
- On manifold rail
- Material seals
- HNBR, NBR
- Material housing
- Wrought aluminium alloy
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 1.2895 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568102678
- MPN 573417
Product Documentation
More from Festo
Festo
Festo FRC-1/4-D-MIDI-KF-A Service unit combination
185844
Festo
Festo ADVC Short stroke cylinder - 100mm, G1/4, 15mm, ADVC-100-15-A-P-A
188341
Festo
Festo NEBM-M12W8-E-5-LE8 Encoder cable
1451676
Festo
Festo CPE24-M3H-3GL-QS-12 Solenoid valve
163849
Festo

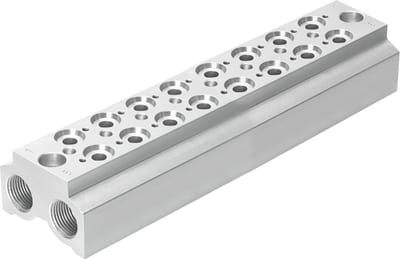

Festo CPE14-3/2-PRS-3/8-8 Manifold block
550565
Festo

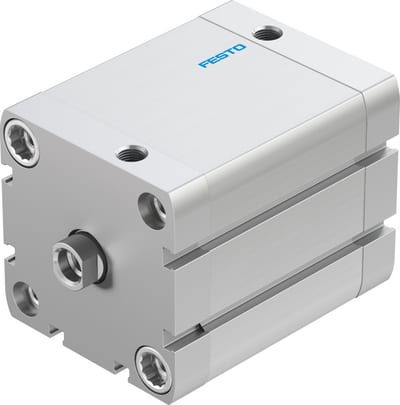

Festo ADN-63-50-I-PPS-A Compact cylinder
572706
Festo
Festo PLN-6X1-NT Plastic tubing
193404
Festo

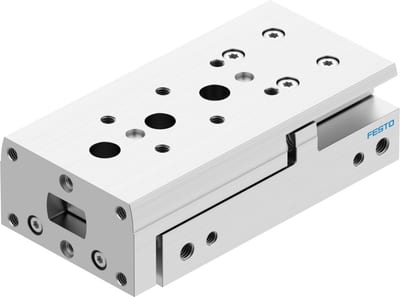

Festo DGST-10-50-E1A Mini slide
