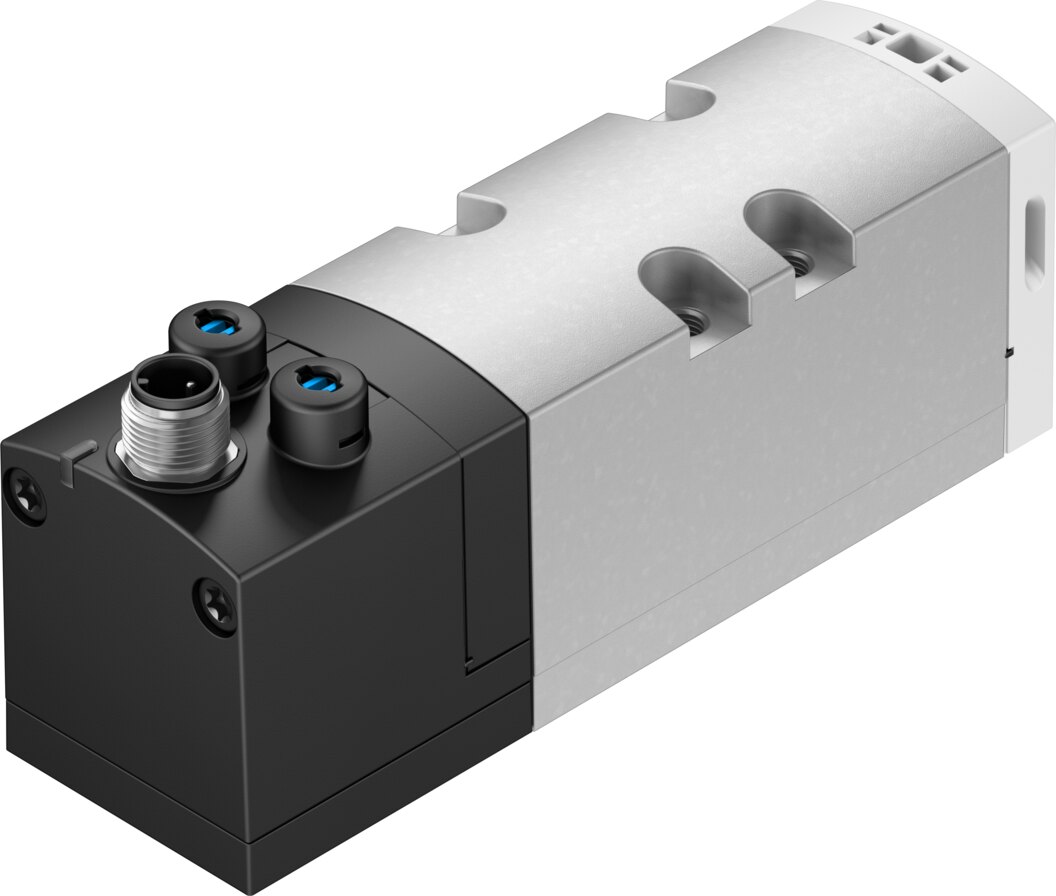

Festo VSVA-B-B52-D-D1-1R5L Solenoid valve

Festo VSVA-B-B52-D-D1-1R5L — Solenoid valve, standards-based directional control valves. valve function 5/2-way, double solenoid; operating pressure 0.3. 1 MPa (3. 10 bar); conforms to standard ISO 5599-1.

Manufacturer part number (MPN)

561364

Type code

VSVA-B-B52-D-D1-1R5L

EAN / GTIN

4052568006143

Product category

Standards-based directional control valves

Valve function

5/2-way, double solenoid

Type of actuation

Electrical

Construction width

42 mm

Standard nominal flow rate (standardised to DIN 1343)

1300 l/min

pneumatic working port

Sub-base size 1 to ISO 5599-1, G1/4

Operating voltage

24 V DC

Operating pressure

0.3 ... 1 MPa (3 ... 10 bar)

Design

Piston gate valve

Approval

c UL us - Recognised (Oil)

Degree of protection

IP65, NEMA 4

Nominal size

11 mm

Grid dimension

43 mm

Exhaust-air function

Can be throttled, Via throttle plate, Via individual sub-base

Sealing principle

Soft

Mounting position

Any

Conforms to standard

ISO 5599-1

Manual override

Detenting, Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991005

lap

Overlap

Signal status display

LED

Flow rate of valve

2000 l/min

Flow rate of valve on individual sub-base

1400 l/min

Flow rate of pneumatically interlinked valve

1300 l/min

Switching time reversal

16 ms

Duty cycle

100%

Max. positive test pulse with 0 signal

1400 µs

Max. negative test pulse with 1 signal

900 µs

Characteristic coil data

24 V DC: 1.6 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

0 - No corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Relative air humidity

0 - 90%

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 50 °C

Product weight

439 g

Electrical connection

3-pin, M12x1, Central plug, Round design

Type of mounting

On sub-base

Pneumatic connection, port 1

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 2

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 3

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 4

Sub-base size 1 to ISO 5599-1

Pneumatic connection, port 5

Sub-base size 1 to ISO 5599-1

Material seals

Fluoro rubber, HNBR, NBR

Material housing

Die-cast aluminium, PA

Material screws

Steel, Galvanised

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Activation

El

Temperature max

50 °C

Working pressure

10 bar

Carbon footprint (EPD)

10.8250 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
