Festo

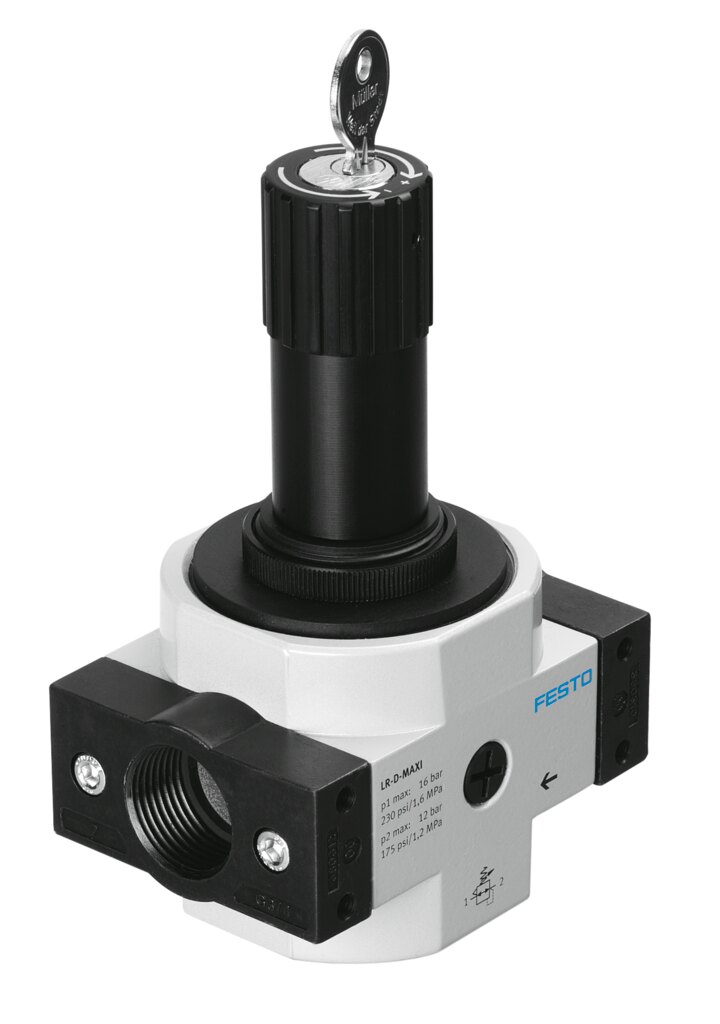

Festo LRS-1-D-O-MAXI Pressure regulator
Part number194667EAN / GTIN4052568154035HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LRS-1-D-O-MAXI — Pressure regulator, compressed air preparation. operating pressure 0. 1.6 MPa (0. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 194667
- Type code
- LRS-1-D-O-MAXI
- EAN / GTIN
- 4052568154035
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with integrated lock
- Mounting position
- Any
- Design
- Piloted piston regulator
- Controller function
- Output pressure constant, with secondary exhausting
- Symbol
- 00991559
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- Prepared for G1/4
- Operating pressure
- 0 ... 1.6 MPa (0 ... 16 bar)
- Pressure regulation range
- 0.5 ... 12 bar
- Max. pressure hysteresis
- 0.04 MPa (0.4 bar; 5.8 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 11500 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 815 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1
- Pneumatic connection, port 2
- G1
- Material sub-base
- Die-cast zinc
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1"
- Press Area
- 0.5 to 12 bar
- Carbon footprint (EPD)
- 7.9069 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568154035
- MPN 194667
Product Documentation
Document preview: LRS-1-D-O-MAXI — Festo product documentation
More from Festo
Festo
Festo ADVC Short stroke cylinder - 100mm, G1/4, 10mm, ADVC-100-10-I-P
188336
Festo
Festo VABM-B10-20E-G38-2 Manifold block
576339
Festo
Festo ADVU-50-25-A-P-A Compact cylinder
156639
Festo
Festo DADS-AB-G6-6-50 Covering
1066625
Festo

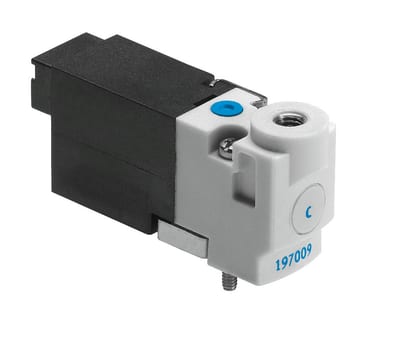

Festo MHP1-M4H-3/2G-M3-HC Solenoid valve
197009
Festo

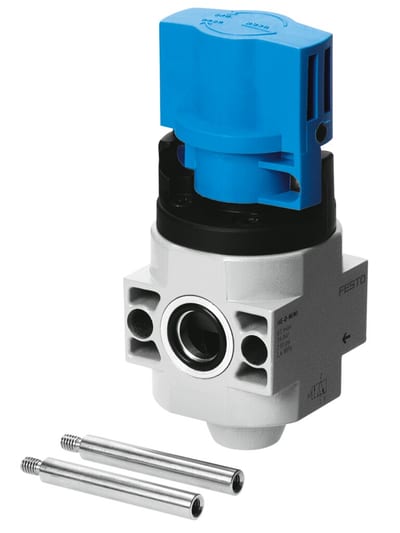

Festo HE-D-MIDI On/off valve
170682
Festo

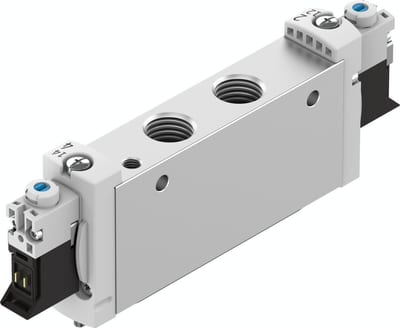

Festo VUVG-L18-P53U-ZT-G14-1P3 Solenoid valve
