Festo VSCS-B-M32-MD-WA-1C1-8 Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VSCS-B-M32-MD-WA-1C1-8 — Solenoid valve, standards-based directional control valves. valve function 3/2-way, single solenoid, closed; operating pressure 0.15. 0.8 MPa (1.5. 8 bar; 21.75. 116 psi); conforms to standard ISO 15218.
Technical Specifications
- Manufacturer part number (MPN)
- 8040570 Type code: VSCS-B-M32-MD-WA-1C1-8 EAN / GTIN: 4052568434595 Product category: Standards-based directional control valves Valve function: 3/2-way, single solenoid, closed Type of actuation: Electrical Construction width: 15 mm Standard nominal flow rate (standardised to DIN 1343): 13.5 l/min pneumatic working port: Sub-base size 15 mm to ISO 15218 Operating voltage: 24 V DC Operating pressure: 0.15 ... 0.8 MPa (1.5 ... 8 bar; 21.75 ... 116 psi) Type of reset: Mechanical spring Degree of protection: IP65 Sealing principle: Soft Mounting position: Any Conforms to standard: ISO 15218 Manual override: Detenting, Non-detenting Type of piloting: Direct Flow direction: Non-reversible Symbol: 00991308 lap: Underlap Switching time off: 6 ms Switching time on: 8 ms Duty cycle: 100% Characteristic coil data: 24 V DC: 1.3 W Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-C1-L Media temperature: -5 ... 50 °C Ambient temperature: -5 ... 50 °C Electrical connection: Type C, To DIN EN 175301-803 Pneumatic connection, port 1: Sub-base Pneumatic connection, port 2: Sub-base Pneumatic connection, port 3: Sub-base material seals: NBR Product type: Pneumatic solenoid valves Product group: Pneumatics Activation: El Return: mechanical spring Carbon footprint (EPD): 0.6426 kg CO2e per pcs Country of origin: Italy Customs tariff code (EU CN): 84812090 HS code: 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568434595
- MPN 8040570
Product Documentation
More from Festo
Festo

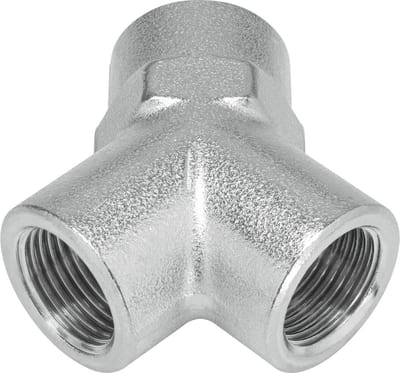

Festo NPFC-Y-3G14-F Y-fitting
8030228
Festo
Festo DSNU-20-25-PPS-A ISO cylinder
559271
Festo

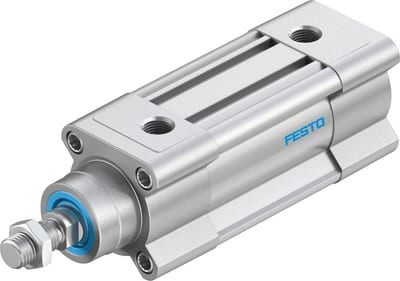

Festo DSBC-40-30-PPSA-N3 ISO cylinder
2123781
Festo
Festo MHA1-M4H-2/2G-0,9-Tc Solenoid valve
197039
Festo
Festo LFR-3/4-D-5M-O-DI-MAXI-A Filter regulator
192395
Festo
Festo LRS-3/4-D-7-O-DI-MAXI Pressure regulator
194677
Festo

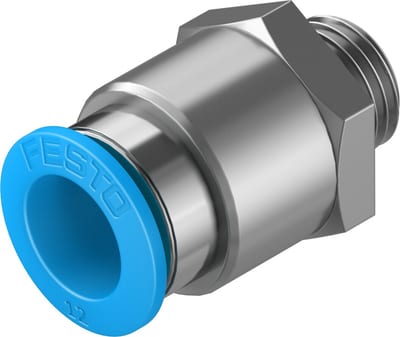

Festo QS-G1/4-12 Push-in fitting
186350
Festo
Festo VUVS-L25-M32U-MZD-G14-F8 Solenoid valve
575489
Catalogue entry last verified: 2026-10-02. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8040570?
- 8040570 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 8040570.
- What is the HS code for 8040570?
- The customs tariff (HS) code for 8040570 is 8481.20.
- Who manufactures 8040570?
- 8040570 is a Festo product in the Pneumatics range.
- Is a datasheet available for 8040570?
- Yes — the 8040570 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8040570?
- The minimum order quantity is 1.
- Is 8040570 available?
- Yes — 8040570 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
