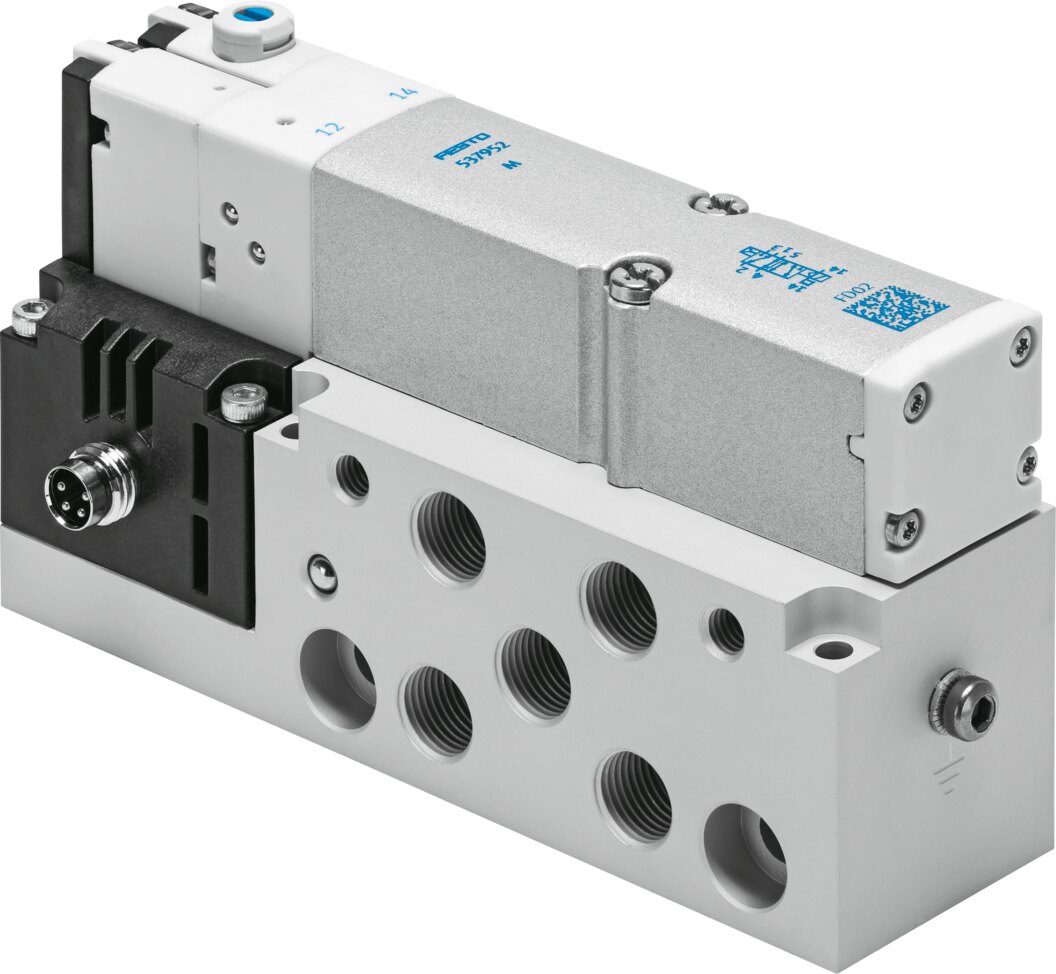

Festo VMPA2-M1H-M-S-G1/8-PI Solenoid valve

Festo VMPA2-M1H-M-S-G1/8-PI — Solenoid valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure -0.09. 1 MPa (-0.9. 10 bar).

Manufacturer part number (MPN)

537972

Type code

VMPA2-M1H-M-S-G1/8-PI

EAN / GTIN

4052568174965

Product category

Universal directional control valves

Valve function

5/2-way, single solenoid

Type of actuation

Electrical

Valve size

20 mm

Standard nominal flow rate (standardised to DIN 1343)

670 l/min

pneumatic working port

G1/8

Operating voltage

24 V DC

Operating pressure

-0.09 ... 1 MPa (-0.9 ... 10 bar)

Design

Piston gate valve

Type of reset

Pneumatic spring

Approval

c UL us - Recognised (Oil)

CE mark (see declaration of conformity)

To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions

Degree of protection

IP65, In mounted state, To IEC 60529

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting, Non-detenting

Type of piloting

Piloted

Pilot air supply

External

Flow direction

Reversible

Symbol

00991050

lap

Overlap

Signal status display

Yes

Pilot pressure

0.3 ... 0.8 MPa (3 ... 8 bar)

Suitability for vacuum

Yes

Standard nominal flow rate with QS-8

670 l/min

Switching time off

28 ms

Switching time on

15 ms

Max. positive test pulse with 0 signal

400 µs

Max. negative test pulse with 1 signal

900 µs

Permissible voltage fluctuations

+/-25%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

1 - Low corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Storage temperature

-20 ... 40 °C

Media temperature

-5 ... 50 °C

Relative air humidity

Max. 90% at 40 °C

Ambient temperature

-5 ... 50 °C

Max. tightening torque for valve mounting

0.65 Nm

Product weight

325 g

Electrical connection

M8x1, Plug, To EN 60947-5-2

Type of mounting

With through-hole

Pilot air port 12/14

M5

Pilot exhaust port 82/84

M5

Pneumatic connection, port 1

G1/8

Pneumatic connection, port 2

G1/8

Pneumatic connection, port 3

G1/8

Pneumatic connection, port 4

G1/8

Pneumatic connection, port 5

G1/8

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

G1/8"

Activation

El

Return

Spring

Carbon footprint (EPD)

3.1011 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568174965
• MPN 537972
