Festo MFH-5/3B-3/8-B-EX Solenoid valve
Part number535950EAN / GTIN4052568170004HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-5/3B-3/8-B-EX — Solenoid valve, valves and valve terminals. valve function 5/3-way, pressurised; operating pressure 0.3. 1 MPa (3. 10 bar); nominal size 12 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 535950
- Type code
- MFH-5/3B-3/8-B-EX
- EAN / GTIN
- 4052568170004
- Product category
- Valves and valve terminals
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Electrical
- Construction width
- 40 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 2600 l/min
- pneumatic working port
- G3/8
- Operating pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- CE mark (see declaration of conformity)
- To EU Explosion Protection Directive (ATEX)
- Explosion protection certification outside the EU
- EPL Db (GB), EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- To UK EX instructions
- ATEX category gas
- II 2G
- ATEX category dust
- II 2D
- Explosion ignition protection type for gas
- Ex h IIC T4 Gb
- Explosion ignition protection type for dust
- Ex h IIIC T130°C Db
- Explosion ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal size
- 12 mm
- Grid dimension
- 41 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991034
- lap
- Overlap
- Max. switching frequency
- 3 Hz
- Switching time off
- 118 ms
- Switching time on
- 25 ms
- Switching time reversal
- 78 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Explosion protection
- Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -5 ... 40 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 780 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 2
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 4
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 16.4940 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568170004
- MPN 535950
Product Documentation
Document preview: MFH-5/3B-3/8-B-EX — Festo product documentation
More from Festo
Festo
Festo VUVG-L14-P53E-ZT-G18-1H2L-F1A Solenoid valve
8164571
Festo
Festo VABM-B10-30S-G12-8-P3 Manifold block
8026419
Festo
Festo LFR-3/4-D-7-O-DI-MAXI Filter regulator
192379
Festo
Festo NPFC-R-G18-M5-F Reducing coupling
8069219
Festo

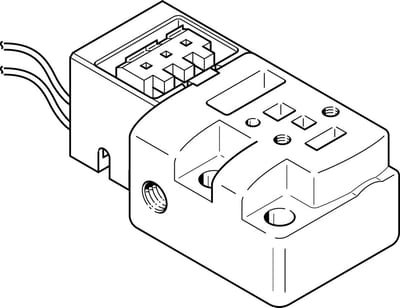

Festo MHP1-AS-2-M3-PI Individual sub-base
197190
Festo

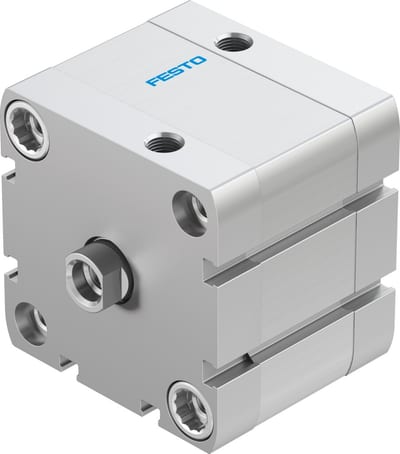

Festo ADN-63-15-I-P-A Compact cylinder
536343
Festo

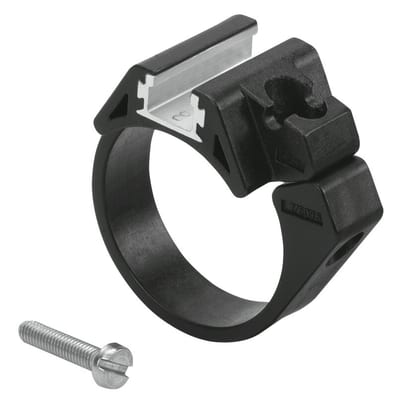

Festo SMBR-8-10 Mounting kit
175092
Festo

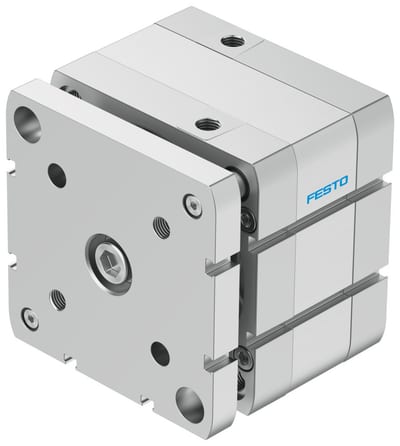

Festo ADNGF-100-10-P-A Compact cylinder
