Festo VMPA14-M1H-G-PI Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VMPA14-M1H-G-PI — Solenoid valve, universal directional control valves. valve function 5/3-way, closed; operating pressure -0.09. 1 MPa (-0.9. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 573721
- Type code
- VMPA14-M1H-G-PI
- EAN / GTIN
- 4052568220952
- Product category
- Universal directional control valves
- Valve function
- 5/3-way, closed
- Type of actuation
- Electrical
- Valve size
- 14 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 500 ... 610 l/min
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65, In mounted state, To IEC 60529
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting, Non-detenting
- Type of piloting
- Piloted
- Flow direction
- Reversible
- Symbol
- 00991020
- lap
- Overlap
- Signal status display
- Yes
- Pilot pressure
- 0.3 ... 0.8 MPa (3 ... 8 bar)
- Suitability for vacuum
- Yes
- Standard nominal flow rate with QS-8
- 500 ... 610 l/min
- Switching time off
- 40 ms
- Switching time on
- 10 ms
- Switching time reversal
- 20 ms
- Max. positive test pulse with 0 signal
- 400 µs
- Max. negative test pulse with 1 signal
- 200 µs
- Permissible voltage fluctuations
- +/-25%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 40 °C
- Media temperature
- -5 ... 50 °C
- Relative air humidity
- Max. 90% at 40 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque for valve mounting
- 0.65 Nm
- Product weight
- 77 g
- Type of mounting
- With through-hole
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 1.4680 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568220952
- MPN 573721
Product Documentation
More from Festo
Festo
Festo VUVG-B14-B52-ZT-F-1T1L-F1A Solenoid valve
8150401
Festo
Festo VUWS-L20-M32U-E-G18 Pneumatic valve
575673
Festo
Festo QS-8-6 Push-in connector
153038
Festo
Festo VUWG-L10A-M52-M-M3 Pneumatic valve
574250
Festo
Festo ADVU-25-5-A-P-A Compact cylinder
156608
Festo
Festo FRC-1/4-D-MINI-KC Service unit combination
185817
Festo

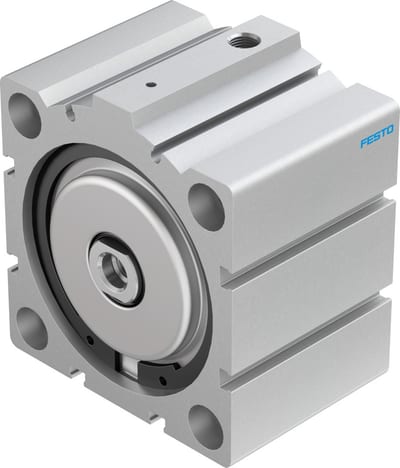

Festo AEVC Short stroke cylinder - 80mm, G1/8, 25mm, AEVC-80-25-I-P
