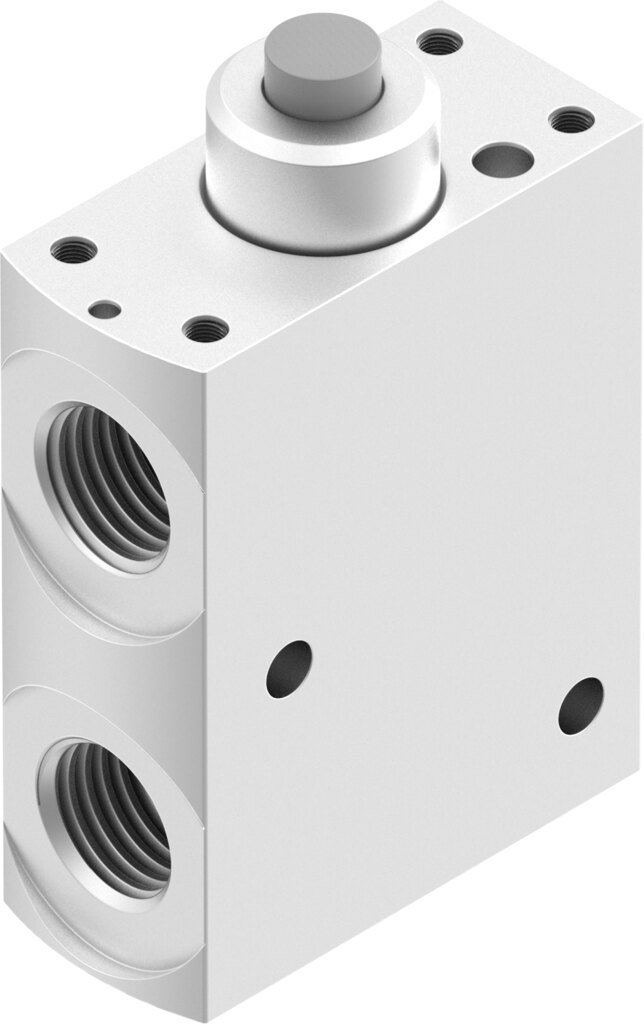

Festo VMEF-ST-M32-M-G14 Stem actuated valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VMEF-ST-M32-M-G14 — Stem actuated valve, mechanically & hand operated pneumatic valves. valve function 3/2-way, single solenoid, closed; operating pressure -0.095. 1 MPa (-0.95. 10 bar); nominal size 6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 8031300
- Type code
- VMEF-ST-M32-M-G14
- EAN / GTIN
- 4052568293888
- Product category
- Mechanically & hand operated pneumatic valves
- Valve function
- 3/2-way, single solenoid, closed
- Type of actuation
- Mechanical
- Construction width
- 20 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 870 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Nominal size
- 6 mm
- Instructions on use
- Do not use as a mechanical stop
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00991294
- lap
- Zero lap
- Max. switching frequency
- 3 Hz
- Explosion protection
- Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Actuating force
- 46 N
- Product weight
- 110 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Material seals
- NBR
- Material housing
- Anodised wrought aluminium alloy
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Spring
- Activation
- Ringetryk
- Thread
- 1/4"
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 2.2970 kg CO2e per pcs
- Country of origin
- Brazil
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568293888
- MPN 8031300
