Festo

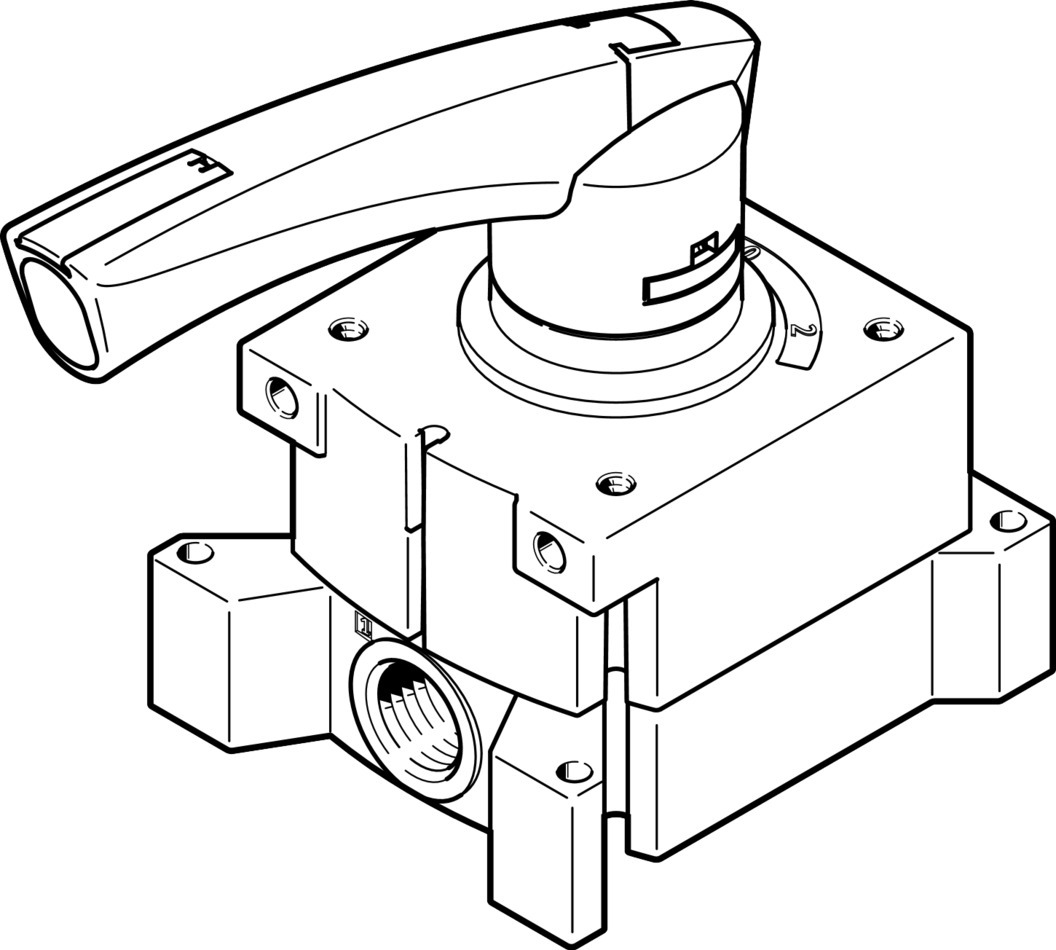

Festo VHER-P-H-B43E-G18 Hand lever valve
Part number3488210EAN / GTIN4052568269913HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VHER-P-H-B43E-G18 — Hand lever valve, mechanically & hand operated pneumatic valves. valve function 4/3 exhausted; operating pressure 0. 10 bar; nominal size 6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 3488210
- Type code
- VHER-P-H-B43E-G18
- EAN / GTIN
- 4052568269913
- Product category
- Mechanically & hand operated pneumatic valves
- Valve function
- 4/3 exhausted
- Type of actuation
- Manual
- Construction width
- 51 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 600 l/min
- pneumatic working port
- G1/8
- Operating pressure
- 0 ... 10 bar
- Design
- Rotary switching valve
- Nominal size
- 6 mm
- Exhaust-air function
- Can be throttled
- Instructions on use
- Actuate manually only
- Actuator lock
- can be closed with accessories
- Sealing principle
- Hard
- Type of piloting
- Direct
- Flow direction
- Non-reversible
- Symbol
- 00995945
- Overlap
- Yes
- Switching position indicator
- With accessories
- Explosion protection
- Zone 2 (ATEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -20 ... 80 °C
- Ambient temperature
- -20 ... 80 °C
- Actuating torque
- 0.9 Nm
- Product weight
- 165 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Material seals
- NBR
- Material housing
- PA
- Material lever
- PA
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Rotary knob
- Activation
- Rotary knob
- Thread
- 1/8"
- Working pressure
- 10 bar
- Temperature min
- -20 °C
- Temperature max
- 80 °C
- Carbon footprint (EPD)
- 1.6069 kg CO2e per pcs
- Country of origin
- Brazil
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568269913
- MPN 3488210
Product Documentation
Document preview: VHER-P-H-B43E-G18 — Festo product documentation
