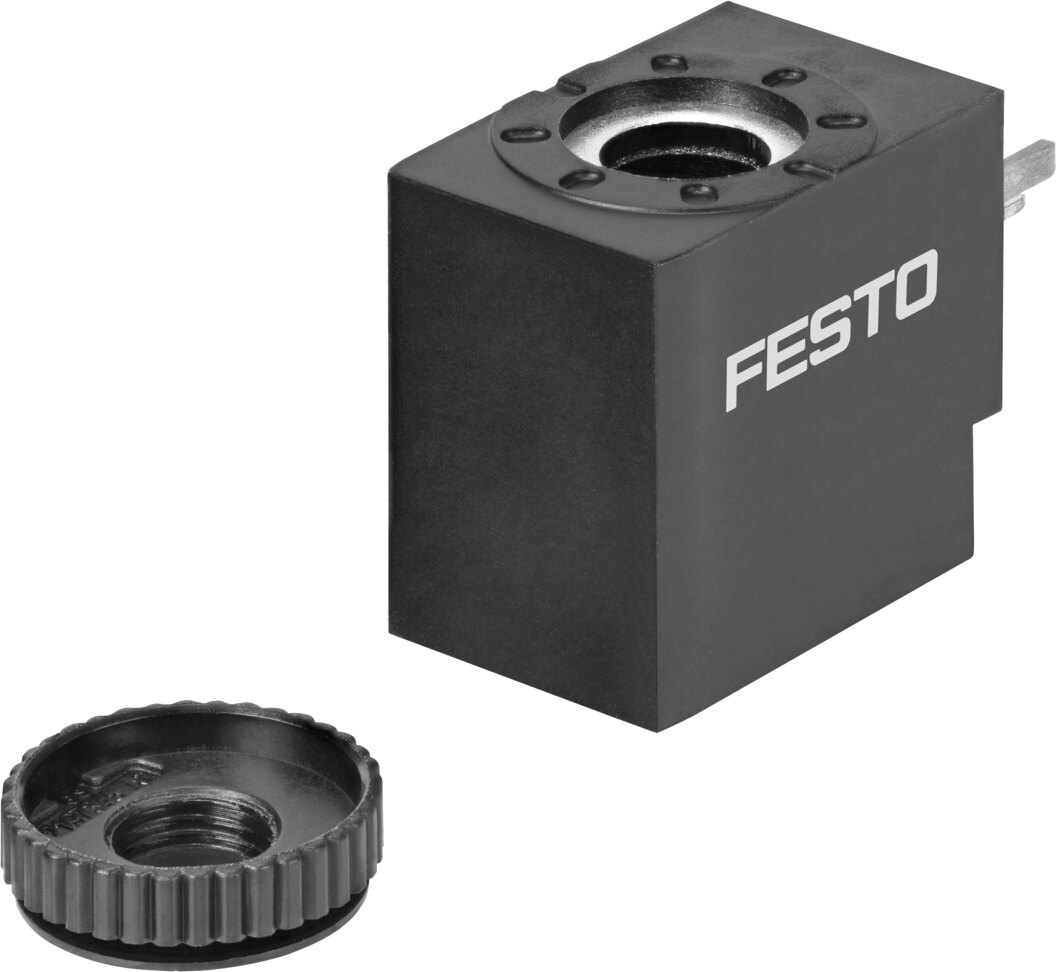

Festo VACS-C-C1-16B Solenoid coil

Festo VACS-C-C1-16B — Solenoid coil, solenoid coils. conforms to standard IEC 61010-1.

Manufacturer part number (MPN)

8025334

Type code

VACS-C-C1-16B

EAN / GTIN

4052568279110

Product category

Solenoid coils

Type of actuation

Electrical

Mounting position

Any

Conforms to standard

IEC 61010-1

Duty cycle

100%

Insulation material class

H

Characteristic coil data

110/120 V AC: 50/60 Hz, pick-up power 2.8 VA, holding power 1.9 VA

Immunity to surge

2.5 kV

Pollution degree

2

Permissible voltage fluctuations

+/-10%

Approval

c UL us - Recognised (Oil)

CE mark (see declaration of conformity)

To EU Low Voltage Directive

UKCA marking (see declaration of conformity)

To UK regulations for electrical equipment

Certificate issuing authority

UL MH18122

Restrictions for environmental and media temperature

-10 - 50 °C

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-10 ... 50 °C

Degree of protection

IP65

Ambient temperature

-10 ... 60 °C

Product weight

34.8 g

Electrical connection 1, connection type

Plug

Electrical connection 1, connector system

Plug pattern type C to EN 175301-803

Electrical connection 1, number of connections/cores

3

Electrical connection 1, connection pattern

00995860

Electrical connection 1, type of mounting

Central screw M2.5

Type of mounting

Via knurled nut

Material housing

PA, Steel

Material solenoid coil

Copper, Steel, Thermoplastic

Material winding

Copper

Product type

Pneumatic coils/cable connectors

Product group

Pneumatics

Voltage

110/120 V

Voltage type

AC

Shape

C

Carbon footprint (EPD)

0.2649 kg CO2e per pcs

Country of origin

China

Customs tariff code (EU CN)

85059029

HS code

8505.90

HS Code

8505.90

• EAN 4052568279110
• MPN 8025334
