Festo

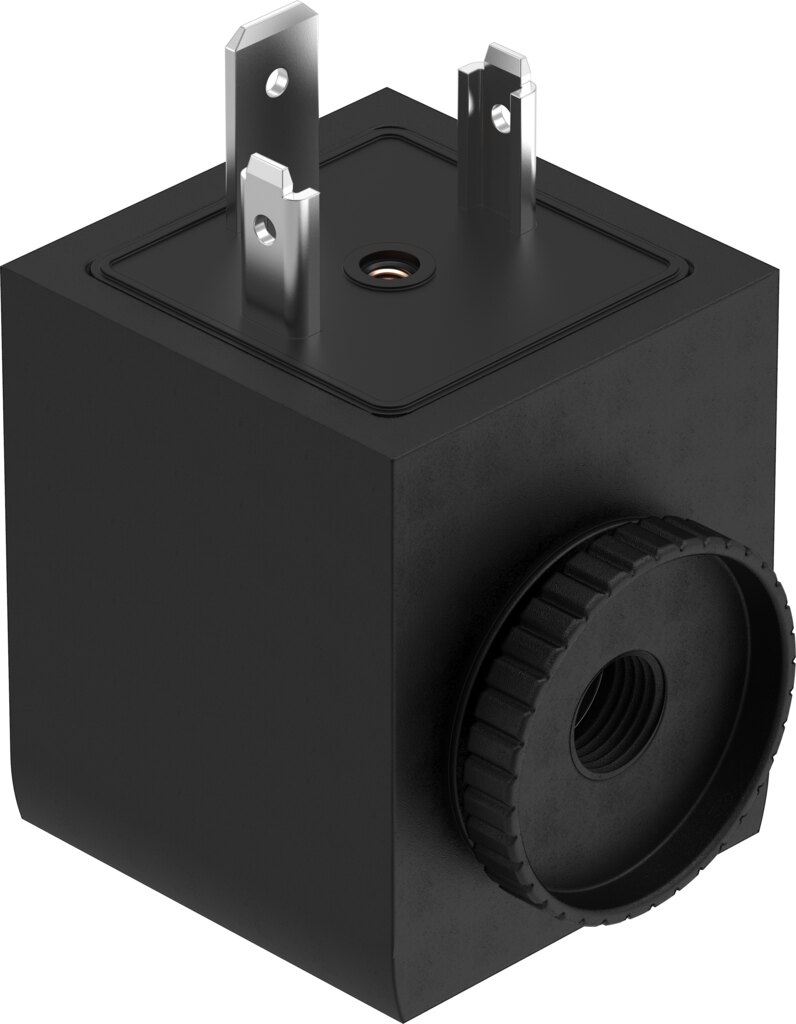

Festo VACF-A-A1-7A Solenoid coil
Part number8030825EAN / GTIN4052568281038HS code8505.90
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VACF-A-A1-7A — Solenoid coil, solenoid coils. conforms to standard IEC 61010-1.
Technical Specifications
- Manufacturer part number (MPN)
- 8030825
- Type code
- VACF-A-A1-7A
- EAN / GTIN
- 4052568281038
- Product category
- Solenoid coils
- Type of actuation
- Electrical
- Mounting position
- Any
- Conforms to standard
- IEC 61010-1
- Duty cycle
- 100%
- Insulation material class
- H
- Characteristic coil data
- 48 V AC: 50/60 Hz, pick-up power 2.5 VA, holding power 1.7 VA
- Permissible voltage fluctuations
- +/-10%
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH18122
- Restrictions for environmental and media temperature
- -20 - 50 °C
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -20 ... 50 °C
- Degree of protection
- IP65
- Ambient temperature
- -20 ... 60 °C
- Product weight
- 82.3 g
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, connector system
- Connection pattern type A based on EN 175301-803
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, connection pattern
- 00995861
- Electrical connection 1, type of mounting
- Central screw M3
- Type of mounting
- Via knurled nut
- Material housing
- PA, Steel
- Material solenoid coil
- Copper, Steel, Thermoplastic
- Material winding
- Copper
- Product type
- Pneumatic coils/cable connectors
- Product group
- Pneumatics
- Voltage
- 48 V
- Voltage type
- AC
- Shape
- A
- Carbon footprint (EPD)
- 0.6207 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 85059029
- HS code
- 8505.90
Standards & Compliance
- HS Code
- 8505.90
Cross References
- EAN 4052568281038
- MPN 8030825
Product Documentation
Document preview: VACF-A-A1-7A — Festo product documentation
