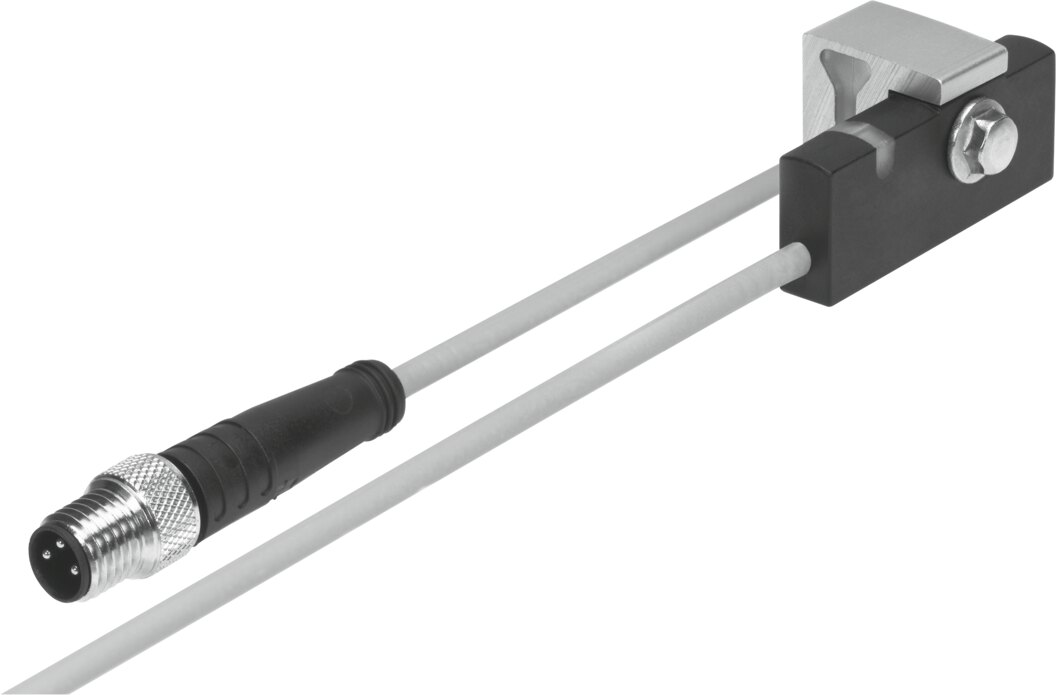

Festo SMT-C1-PS-24V-K-0,3-M8D Proximity sensor
Part number571342EAN / GTIN4052568101220HS code8536.50
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo SMT-C1-PS-24V-K-0,3-M8D — Proximity sensor, cylinder sensors block design.
Technical Specifications
- Manufacturer part number (MPN)
- 571342
- Type code
- SMT-C1-PS-24V-K-0,3-M8D
- EAN / GTIN
- 4052568101220
- Product category
- Cylinder sensors block design
- Design
- Block design
- Based on standard
- EN 60947-5-2
- Symbol
- 00991153
- Approval
- RCM
- CE mark (see declaration of conformity)
- To EU EMC Directive, In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- Instructions on use
- Support / actuator-sensor overview "The right sensor for the actuator"
- Measured variable
- Position
- Measuring principle
- Magneto-inductive
- Ambient temperature
- -20 ... 70 °C
- Switching output
- PNP
- Switching element function
- N/O contact
- Hysteresis
- 2 mm
- Switch-on time
- 0.5 ms
- Switch-off time
- 0.5 ms
- Max. output current
- 200 mA
- Max. switching capacity DC
- 6 W
- Voltage drop
- 1.8 V
- Inductive protective circuit
- Adapted to MZ, MY, ME coils
- Min. load current
- 0 mA
- Off-state current
- 0.1 mA
- Short circuit current rating
- Yes
- Overload protection
- Yes
- Rated operational voltage DC
- 24 V
- Operational voltage range DC
- 10 ... 30 V
- Residual ripple
- 10%
- Reverse polarity protection
- For all electrical connections
- Electrical connection 1, connection type
- Cable with plug
- Electrical connection 1, connector system
- M8x1, A-coded, to EN 61076-2-104
- Electrical connection 1, number of connections/cores
- 3
- Electrical connection 1, type of mounting
- Rotatable
- Electrical connection 1, compatible type of mounting
- Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 1, connection pattern
- 00991155
- Connection outlet orientation
- In-line
- Material electrical contact
- Gold-plated brass
- Material screw-type lock
- Brass, nickel-plated
- Cable length
- 0.3 m
- Cable sheath colour
- Grey
- Material cable sheath
- TPE-O
- Type of mounting
- Clamped
- Tightening torque
- 1.2 Nm
- Mounting position
- Any
- Product weight
- 24.4 g
- Housing colour
- Black
- Material housing
- Wrought aluminium alloy, TPE-U(PU), High-alloy stainless steel
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -20 ... 70 °C
- Degree of protection
- IP65, IP68, To IEC 60529
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitable for use with food
- See supplementary material information
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.1877 kg CO2e per pcs
- Country of origin
- Switzerland
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568101220
- MPN 571342
