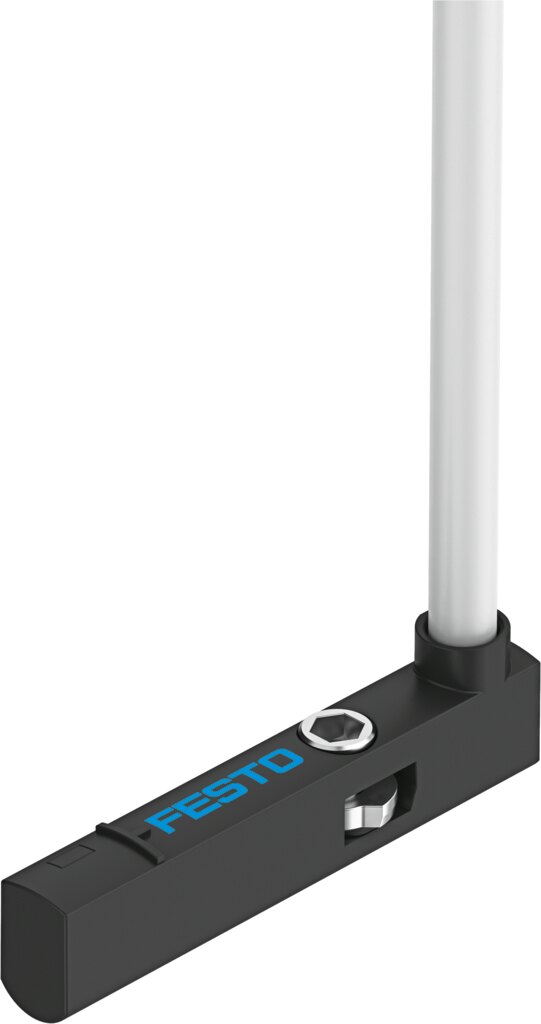

Festo SMT-10M-PS-24V-E-0,3-Q-M8D Proximity sensor

Festo SMT-10M-PS-24V-E-0,3-Q-M8D — Proximity sensor, c-slot cylinder sensors. conforms to standard EN 60947-5-2.

Manufacturer part number (MPN)

551376

Type code

SMT-10M-PS-24V-E-0,3-Q-M8D

EAN / GTIN

4052568094768

Product category

C-slot cylinder sensors

Design

For C-slot

Conforms to standard

EN 60947-5-2

Symbol

00991153

Approval

RCM

CE mark (see declaration of conformity)

To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK instructions for EMC, To UK RoHS instructions

Special characteristics

Oil-resistant

Instructions on use

https://www.festo.com/Drive-Sensor-Overview

Measured variable

Position

Measuring principle

Magneto-resistive

Ambient temperature

-40 ... 70 °C

Repetition accuracy

0.2 mm

Switching output

PNP

Switching element function

N/O contact

Switch-on time

1.3 ms

Switch-off time

4.2 ... 7.3 ms

Max. switching frequency

130 Hz

Max. output current

100 mA

Max. output current using mounting kits

50 mA

Max. switching capacity DC

2.8 W

Max. switching capacity DC using mounting kits

1.5 W

Voltage drop

1.7 V

Off-state current

0.05 mA

Short circuit current rating

Yes

Overload protection

Yes

Rated operational voltage DC

24 V

Operational voltage range DC

5 ... 30 V

Residual ripple

10%

Reverse polarity protection

For all electrical connections

Electrical connection 1, connection type

Cable with plug

Electrical connection 1, connector system

M8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores

3

Electrical connection 1, type of mounting

Screw-type lock, Rotatable

Electrical connection 1, compatible type of mounting

Compatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern

00991155

Connection outlet orientation

Lateral

Material electrical contact

Gold-plated brass

Material connector housing

TPE-U(PU)

Material screw-type lock

Brass, nickel-plated

Test conditions cable

Bending strength: to Festo standard, Test conditions on request

Torsional strength

> 300,000 cycles, ±270°/0.1 m

Energy chain

> 5 million cycles, bending radius 28 mm

Cable length

0.3 m

Cable characteristic

Suitable for energy chains/robot applications

Cable sheath colour

Grey

Material cable sheath

TPE-U(PUR)

Material insulating sheath

PP

Type of mounting

Screw-clamped, Insertable in the slot from above

Max. tightening torque

0.4 Nm

Mounting position

Any

Product weight

6.7 g

Housing colour

Black

Material housing

Reinforced PA, High-alloy stainless steel

Switching status indication

Yellow LED

Ambient temperature with moving cable

-20 ... 70 °C

Degree of protection

IP65, IP68

LABS (PWIS) conformity

VDMA24364-B2-L

Suitability for the production of Li-ion batteries

Suitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14

Element installed statically, no meaningful evaluation possible according to ISO 14644-1

Product type

Pneumatic reed contacts/cables/brackets

Product group

Pneumatics

Carbon footprint (EPD)

0.0888 kg CO2e per pcs

Country of origin

Bulgaria

Customs tariff code (EU CN)

85365019

HS code

8536.50

HS Code

8536.50

• EAN 4052568094768
• MPN 551376
