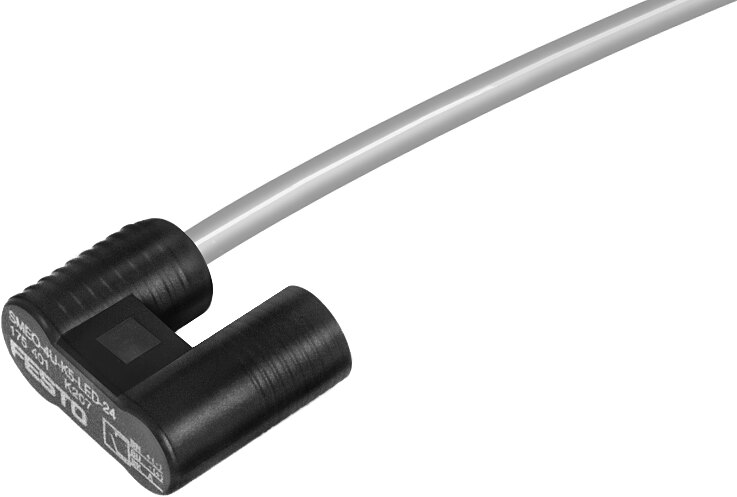

Festo SMEO Cylinder sensor - SMEO-4U-K-LED-24
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo SMEO Cylinder sensor. Pneumatic reed contacts/cables/brackets (Technique / Pneumatics / Pneumatic Cylinders). Principal data: supplier type designation SMEO-4U-K-LED-24. Supplied under manufacturer part number 36198, EAN 4052568068189, HS code 8536.50, country of origin Bulgaria.
Technical Specifications
- Design
- Round
- Symbol
- 00991145
- Approval
- RCM
- CE mark (see declaration of conformity)
- To EU EMC Directive; In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- Measuring principle
- Magnetic reed
- Ambient temperature
- -20 ... 60 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contacting, bipolar
- Switching element function
- N/O contact
- Switch-on time
- 0.5 ms
- Switch-off time
- 0.03 ms
- Max. switching frequency
- 800 Hz
- Max. output current
- 500 mA
- Max. switching capacity DC
- 10 W
- Inductive protective circuit
- Adapted to MZ, MY, ME coils
- Short circuit current rating
- No
- Operational voltage range DC
- 12 ... 27 V
- Residual ripple
- 10%
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connector system
- Open end
- Electrical connection 1, number of connections/cores
- 3
- Connection outlet orientation
- In-line
- Cable length
- 2.5 m
- Cable sheath colour
- Grey
- Material cable sheath
- TPE-U(PUR)
- Type of mounting
- With accessories
- Mounting position
- Any
- Product weight
- 70 g
- Material housing
- PET
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 60 °C
- Degree of protection
- IP67
- LABS (PWIS) conformity
- VDMA24364-B2-L
- EAN / GTIN
- 4052568068189
- Festo type code
- SMEO-4U-K-LED-24
- Festo order number
- 36198
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.4986 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
- Manufacturer part number
- 36198
