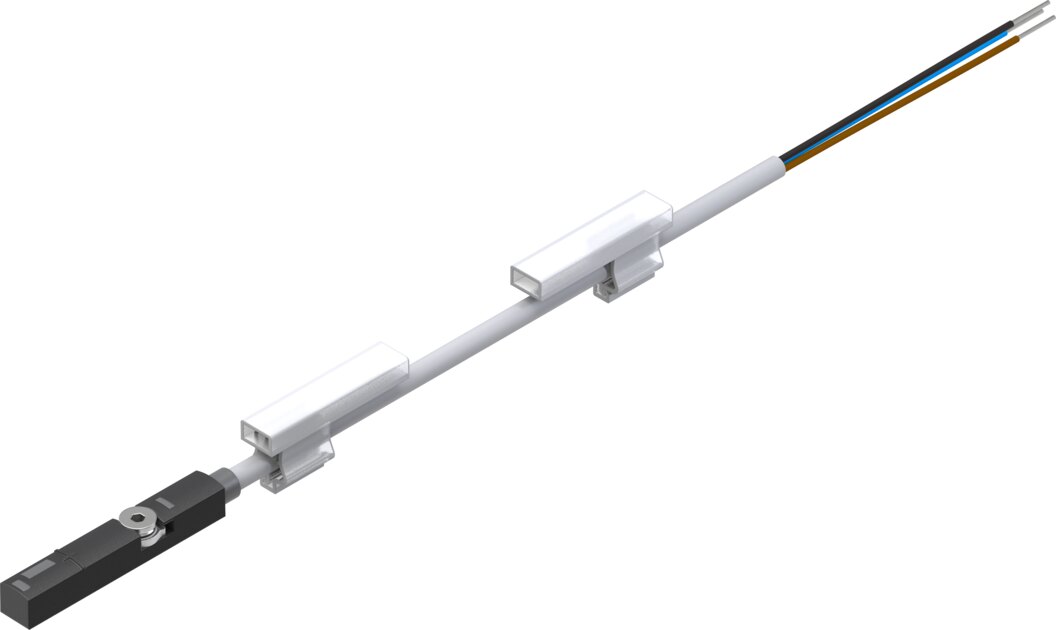

Festo SME-8M-DS-24V-K-5,0-Oe Proximity sensor
Pricing
Request a quote
We reply within 24 hours
Overview
Festo SME-8M-DS-24V-K-5,0-Oe Proximity sensor (part number 543863) is listed under Pneumatics / Pneumatic Components. Type code: SME-8M-DS-24V-K-5,0-OE; Product category: T-slot cylinder sensors; Symbol: 00991620; Approval: RCM, c UL us - Listed (Oil); Special characteristics: Oil-resistant; Instructions on use: https://www.festo.com/Drive-Sensor-Overview.
Technical Specifications
- Manufacturer part number (MPN)
- 543863
- Type code
- SME-8M-DS-24V-K-5,0-OE
- EAN / GTIN
- 4052568091798
- Product category
- T-slot cylinder sensors
- Symbol
- 00991620
- Approval
- RCM, c UL us - Listed (Oil)
- CE mark (see declaration of conformity)
- To EU EMC Directive, In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC, To UK RoHS instructions
- Special characteristics
- Oil-resistant
- Instructions on use
- https://www.festo.com/Drive-Sensor-Overview
- Measuring principle
- Magnetic reed
- Ambient temperature
- -40 ... 70 °C
- Switching output
- Contacting, bipolar
- Switching element function
- N/O contact
- Max. output current
- 500 mA
- Max. output current using mounting kits
- 80 mA
- Max. switching capacity AC
- 10 VA
- Max. switching capacity DC
- 10 W
- Max. switching capacity DC using mounting kits
- 2.4 W
- Max. switching capacity AC using mounting kits
- 2.4 VA
- Voltage drop
- 1.875 V
- Short circuit current rating
- No
- Overload protection
- Not provided
- Operational voltage range AC
- 5 ... 30 V
- Operational voltage range DC
- 5 ... 30 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connector system
- Open end
- Electrical connection 1, number of connections/cores
- 3
- Connection outlet orientation
- In-line
- Test conditions cable
- Bending strength: to Festo standard, Test conditions on request
- Energy chain
- > 5 million cycles, bending radius 75 mm
- Cable length
- 5 m
- Cable characteristic
- Standard/suitable for energy chains
- Material cable sheath
- TPE-U(PUR)
- Type of mounting
- Screw-clamped, Insertable in the slot from above
- Product weight
- 58.3 g
- Material housing
- PA, High-alloy stainless steel
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 70 °C
- Degree of protection
- IP65, IP68
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.4781 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568091798
- MPN 543863
Product Documentation
