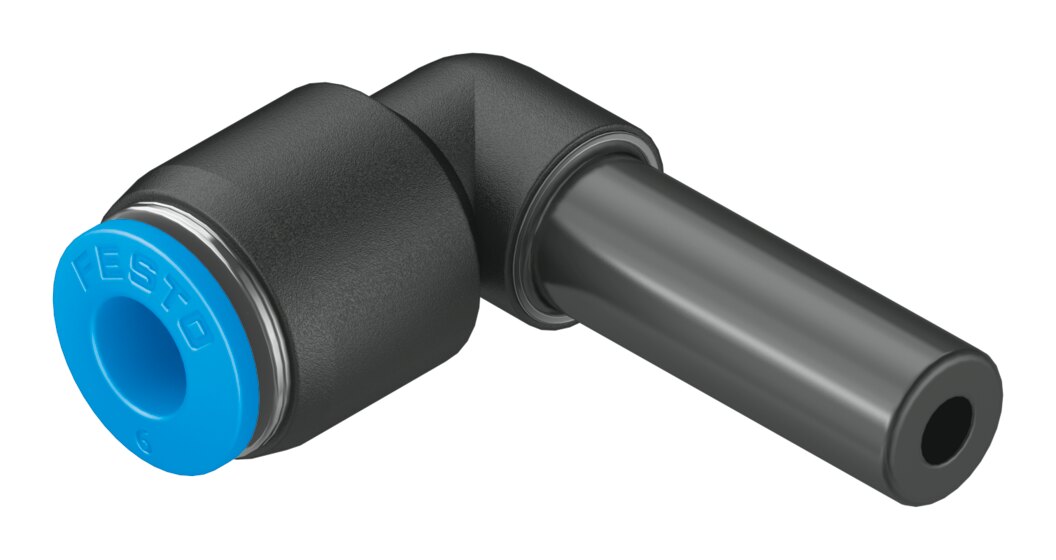

Festo QSL Elbow connector push-in - 6mm, 8mm, QSL-8H-6
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo QSL Elbow connector push-in. Reduction fittings, plugs, nipple pipes, and end caps C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 2 6 mm, outer hose diameter 8 mm, supplier type designation QSL-8H-6. Supplied under manufacturer part number 153062, EAN 4052568031565, HS code 3917.40, country of origin Japan.
Technical Specifications
- Size
- Standard
- Nominal size
- 3.5 mm
- Tubing insertion depth
- 17 mm
- Mounting position
- Any
- Design
- L-shape (Push-pull principle)
- Size of pack
- 10
- Operating pressure complete temperature range
- -0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)
- Temperature-dependent operating pressure
- -0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)
- Note on operating pressure
- Water: max. 0.6 MPa at max. 50°C
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Ambient temperature
- -10 ... 80 °C
- Product weight
- 5.2 g
- Pneumatic connection, port 1
- Push-in sleeve Ø 8 mm
- Pneumatic connection, port 2
- For tubing outside diameter of 6 mm
- Colour of release ring
- Blue
- Material housing
- PBT
- Material release ring
- POM
- Material tubing seal
- NBR
- Material tubing clamp component
- High-alloy stainless steel
- EAN / GTIN
- 4052568031565
- Festo type code
- QSL-8H-6
- Festo order number
- 153062
- Product type
- Reduction fittings, plugs, nipple pipes, and end caps C
- Product group
- Pneumatics
- Outer hose diameter 2
- 6 mm
- Outer hose diameter
- 8 mm
- Material
- composite
- Temperature min
- -10 °C
- Temperature max
- 80 °C
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.0379 kg CO2e per pcs
- Country of origin
- Japan
- Customs tariff code (EU CN)
- 39174000
- HS code
- 3917.40
- Manufacturer part number
- 153062
Standards & Compliance
- HS Code
- 3917.40
Cross References
- EAN 4052568031565
- MPN 153062
