Festo

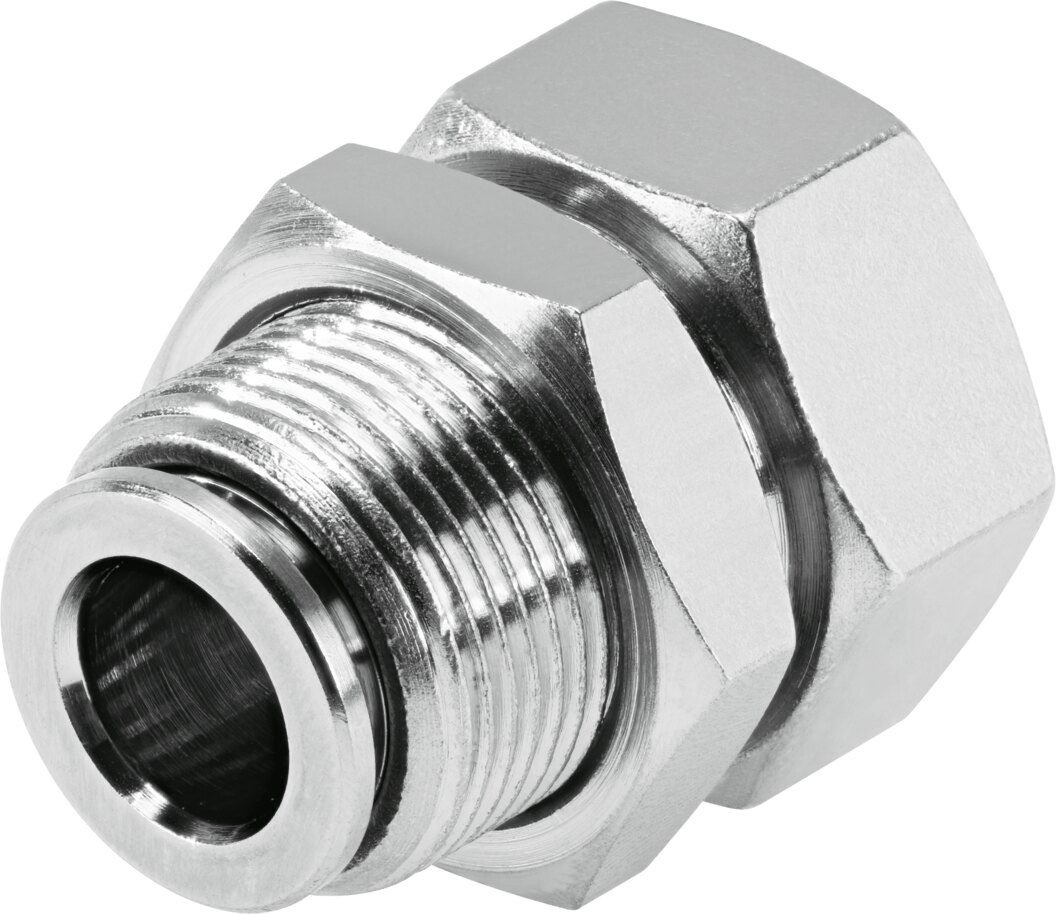

Festo NPQH-H-G18F-Q8-P10 Bulkhead fitting
Part number578296EAN / GTIN4052568059996HS code7412.20
Pneumatics
Fittings & Tubing
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQH-H-G18F-Q8-P10 — Bulkhead fitting, push-in fittings. nominal size 7 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 578296
- Type code
- NPQH-H-G18F-Q8-P10
- EAN / GTIN
- 4052568059996
- Product category
- Push-in fittings
- Size
- Standard
- Nominal size
- 7 mm
- Tubing insertion depth
- 16 mm
- Mounting position
- Any
- Design
- Bulkhead
- Push-in fittings - Design
- Push-pull principle
- Size of pack
- 10
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 2 MPa (-0.95 ... 20 bar; -13.775 ... 290 psi)
- Certificate issuing authority
- NSF C0523185
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class CRC
- 3 - high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity, NSF/ANSI 169
- Ambient temperature
- 0 ... 150 °C
- Product weight
- 42.3 g
- Type of mounting
- External hex SW20
- Pneumatic connection, port 1
- Female thread G1/8
- Pneumatic connection, port 2
- For tubing outside diameter of 8 mm
- Material housing
- Brass, chemically nickel-plated
- Guard ring material
- PEI
- Material release ring
- Chemically nickel-plated brass
- Material nut
- Brass, chemically nickel-plated
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PEI
- Product type
- Push-in connectors
- Product group
- Pneumatics
- Outer hose diameter
- 8 mm
- Thread
- 1/8"
- Sales unit
- Pack
- Carbon footprint (EPD)
- 0.2984 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 74122000
- HS code
- 7412.20
Standards & Compliance
- HS Code
- 7412.20
Cross References
- EAN 4052568059996
- MPN 578296
Product Documentation
Document preview: NPQH-H-G18F-Q8-P10 — Festo product documentation
