Festo MVH-5/3B-1/4-S-B Solenoid valve
Part number31006EAN / GTIN4052568114411HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MVH-5/3B-1/4-S-B — Solenoid valve, valves and valve terminals. valve function 5/3-way, pressurised; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 10 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 31006
- Type code
- MVH-5/3B-1/4-S-B
- EAN / GTIN
- 4052568114411
- Product category
- Valves and valve terminals
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Electrical
- Construction width
- 32 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 10 mm
- Grid dimension
- 33 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991031
- lap
- Overlap
- Pilot pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- b value
- 0.38
- C value
- 6.35 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 41 ms
- Switching time on
- 32 ms
- Switching time reversal
- 46 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- 24 V DC: 2.5 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 660 g
- Type of mounting
- On PR rail, with through-hole
- Auxiliary pilot air port 12
- G1/8
- Auxiliary pilot air port 14
- G1/8
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 15.0730 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568114411
- MPN 31006
Product Documentation
Document preview: MVH-5/3B-1/4-S-B — Festo product documentation
More from Festo
Festo
Festo DGSL-20-10-P1A Mini slide
544014
Festo
Festo ADVU-80-50-A-P-A Compact cylinder
156660
Festo

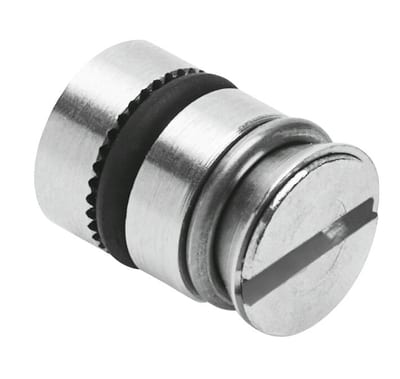

Festo VABD-12-B Separator
569997
Festo

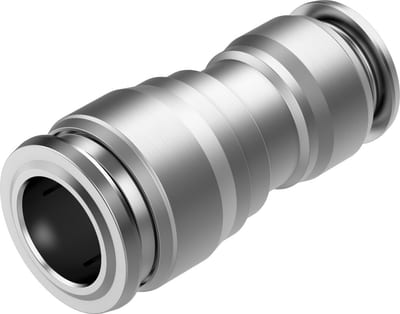

Festo NPQR-D-Q12-Q10 Plug
8085707
Festo

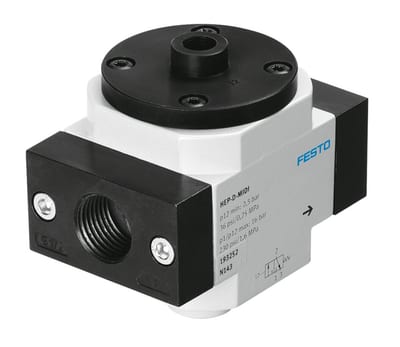

Festo HEP-3/8-D-MINI On/off valve
