Festo HEP-3/8-D-MINI On/off valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo HEP-3/8-D-MINI — On/off valve, compressed air preparation. valve function 3/2-way, single solenoid, closed; operating pressure 0. 1.6 MPa (0. 16 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 193245 Type code: HEP-3/8-D-MINI EAN / GTIN: 4052568079765 Product category: Compressed air preparation Lifecycle status: Phase-out Design: Piston gate valve Type of actuation: Pneumatic Sealing principle: Soft Exhaust-air function: Cannot be throttled Manual override: None Type of reset: Mechanical spring Symbol: 00991173 Valve function: 3/2-way, single solenoid, closed Operating pressure: 0 ... 1.6 MPa (0 ... 16 bar) Pilot pressure: 3 ... 16 bar C value: 7.7 l/sbar b value: 0.3 Standard nominal flow rate (standardised to DIN 1343): 1600 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas Corrosion resistance class CRC: 2 - Moderate corrosion stress LABS (PWIS) conformity: VDMA24364-B1/B2-L Media temperature: -10 ... 60 °C Ambient temperature: -10 ... 60 °C Type of mounting: Inline installation, With accessories Mounting position: Any Flow direction: Non-reversible Product weight: 223 g Pneumatic connection, port 1: G3/8 Pneumatic connection, port 2: G3/8 Pneumatic connection, port 3: G1/8 Pilot air port 12: G1/8 Air purity class at output: Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas material seals: NBR material housing: Die-cast aluminium Product type: Air treatment Product group: Pneumatics Thread: 3/8" Activation: pneumatic Return: Spring Series: HEP Carbon footprint (EPD): 2.2187 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84812090 HS code: 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568079765
- MPN 193245
Product Documentation
More from Festo
Festo
Festo VUVG-S10-T32C-MZT-M7-1T1L Solenoid valve
4052568220037
Festo
Festo ADVU-40-30-P-A Compact cylinder
156545
Festo
Festo LFMA-D-MAXI-DA Micro filter
532839
Festo
Festo VUVG-LK10-M52-AT-M7-1H2L-S Solenoid valve
8042547
Festo
Festo DNC-32-100-PPV ISO cylinder
163323
Festo
Festo LRS-3/4-D-MAXI Pressure regulator
194664
Festo
Festo LRS-3/8-D-I-MINI Pressure regulator
194619
Festo

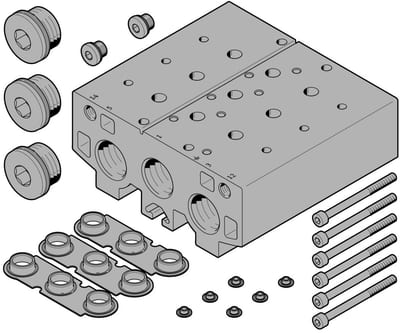

Festo VABM-B10-30E-G34-3 Manifold block
8026360
Catalogue entry last verified: 2026-10-02. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 193245?
- 193245 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 193245.
- What is the HS code for 193245?
- The customs tariff (HS) code for 193245 is 8481.20.
- Who manufactures 193245?
- 193245 is a Festo product in the Pneumatics range.
- Is a datasheet available for 193245?
- Yes — the 193245 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 193245?
- The minimum order quantity is 1.
- Is 193245 available?
- Yes — 193245 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
